amxb_ubus_invoke.c File Reference

#include <stdlib.h>
#include <amxc/amxc_string_split.h>
#include "amxb_ubus.h"

Go to the source code of this file.

Macros
#define	_GNU_SOURCE

Functions
static int	amxb_ubus_status_to_amxd_status (int rv, amxc_var_t *result)
static void	amxb_ubus_transform_args (amxc_var_t *dest, amxc_var_t *args, const char *method)
static void	amxb_ubus_convert_out_args (amxc_var_t *result)
static void	amxb_ubus_request_done (struct ubus_request *req, int ret)
static int	amxb_ubus_convert (amxb_ubus_t *amxb_ubus_ctx, amxb_invoke_t *invoke_ctx, amxc_var_t *args)
int PRIVATE	amxb_ubus_get_longest_path (amxb_ubus_t *amxb_ubus_ctx, amxd_path_t *path, amxc_string_t *rel_path)
void PRIVATE	amxb_ubus_result_data (struct ubus_request *req, AMXB_UNUSED int type, struct blob_attr *msg)
int PRIVATE	amxb_ubus_invoke_base (amxb_ubus_t *amxb_ubus_ctx, const char *object, amxc_var_t *args, amxb_request_t *request, uint32_t *id)
int PRIVATE	amxb_ubus_invoke (void *const ctx, amxb_invoke_t *invoke_ctx, amxc_var_t *args, amxb_request_t *request, int timeout)
int PRIVATE	amxb_ubus_async_invoke (void *const ctx, amxb_invoke_t *invoke_ctx, amxc_var_t *args, amxb_request_t *request)
int PRIVATE	amxb_ubus_wait_request (AMXB_UNUSED void *const ctx, amxb_request_t *request, int timeout)
int PRIVATE	amxb_ubus_close_request (void *const ctx, amxb_request_t *request)

Macro Definition Documentation

_GNU_SOURCE

#define _GNU_SOURCE

Definition at line 56 of file amxb_ubus_invoke.c.

Function Documentation

amxb_ubus_async_invoke()

int PRIVATE amxb_ubus_async_invoke	(	void *const	ctx,
		amxb_invoke_t *	invoke_ctx,
		amxc_var_t *	args,
		amxb_request_t *	request
	)

Definition at line 405 of file amxb_ubus_invoke.c.

                                                            {
    amxb_ubus_t* amxb_ubus_ctx = (amxb_ubus_t*) ctx;
    uint32_t id = 0;
    int ret = -1;
    amxb_ubus_request_t* amxb_ubus_req = NULL;

    when_str_empty(invoke_ctx->object, exit);
    amxb_ubus_req = (amxb_ubus_request_t*) calloc(1, sizeof(amxb_ubus_request_t));
    when_null(amxb_ubus_req, exit);
    amxc_var_init(&amxb_ubus_req->args);
    amxb_ubus_transform_args(&amxb_ubus_req->args, args, invoke_ctx->method);

    if(amxb_ubus_invoke_base(amxb_ubus_ctx,
                             invoke_ctx->object,
                             args,
                             request,
                             &id) != 0) {
        when_failed(amxb_ubus_convert(amxb_ubus_ctx, invoke_ctx, &amxb_ubus_req->args), exit);
        when_failed(amxb_ubus_invoke_base(amxb_ubus_ctx,
                                          invoke_ctx->object,
                                          &amxb_ubus_req->args,
                                          request,
                                          &id),
                    exit);
    }

    amxb_ubus_req->request = request;
    amxb_ubus_req->id = id;
    request->bus_data = amxb_ubus_req;

    amxb_ubus_req->ubus_req = (struct ubus_request*) calloc(1, sizeof(struct ubus_request));
    when_null(amxb_ubus_req->ubus_req, exit);

    ret = ubus_invoke_async(amxb_ubus_ctx->ubus_ctx,
                            id,
                            invoke_ctx->method,
                            amxb_ubus_ctx->b.head,
                            amxb_ubus_req->ubus_req);

    amxb_ubus_req->ubus_req->data_cb = amxb_ubus_result_data;
    amxb_ubus_req->ubus_req->complete_cb = amxb_ubus_request_done;
    amxb_ubus_req->ubus_req->priv = amxb_ubus_req;

    ubus_complete_request_async(amxb_ubus_ctx->ubus_ctx, amxb_ubus_req->ubus_req);

exit:
    if(ret != 0) {
        if(amxb_ubus_req != NULL) {
            amxc_var_clean(&amxb_ubus_req->args);
            free(amxb_ubus_req->ubus_req);
        }
        free(amxb_ubus_req);
        request->bus_data = NULL;
    }
    return ret;
}

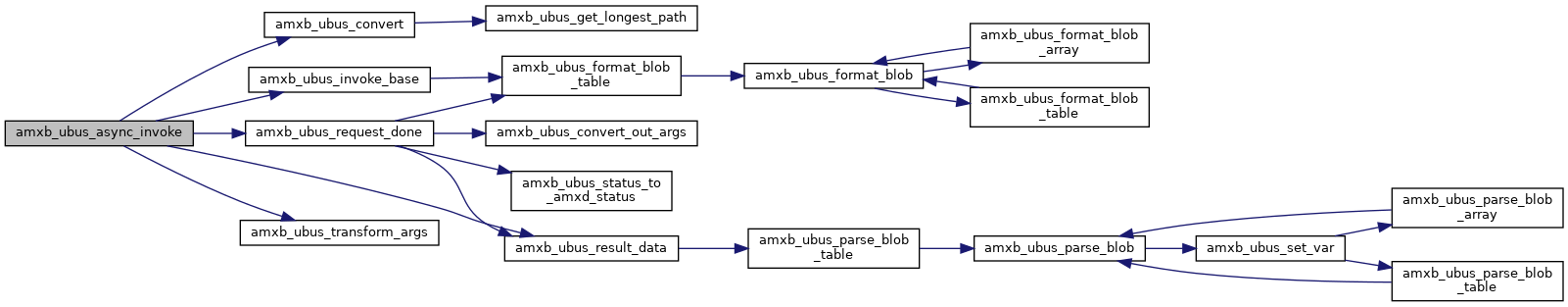

Here is the call graph for this function:

amxb_ubus_close_request()

int PRIVATE amxb_ubus_close_request	(	void *const	ctx,
		amxb_request_t *	request
	)

Definition at line 475 of file amxb_ubus_invoke.c.

                                                             {
    amxb_ubus_t* amxb_ubus_ctx = (amxb_ubus_t*) ctx;
    amxb_ubus_request_t* amxb_ubus_req = (amxb_ubus_request_t*) request->bus_data;

    if(amxb_ubus_req != NULL) {
        struct ubus_request* ubus_req = amxb_ubus_req->ubus_req;
        ubus_abort_request(amxb_ubus_ctx->ubus_ctx, ubus_req);
        amxc_var_clean(&amxb_ubus_req->args);
        free(ubus_req);
        free(amxb_ubus_req);
        request->bus_data = NULL;
    }
    return 0;
}

amxb_ubus_convert()

static int amxb_ubus_convert ( amxb_ubus_t *  amxb_ubus_ctx, amxb_invoke_t *  invoke_ctx, amxc_var_t *  args  )

static

Definition at line 195 of file amxb_ubus_invoke.c.

                                               {
    amxd_path_t path;
    char* object = NULL;
    char* method = invoke_ctx->method;
    amxc_string_t rel_path;
    int retval = -1;

    amxc_string_init(&rel_path, 64);
    amxd_path_init(&path, NULL);
    amxd_path_setf(&path, true, "%s", invoke_ctx->object);

    free(invoke_ctx->object);
    invoke_ctx->object = NULL;
    invoke_ctx->method = NULL;

    when_failed(amxb_ubus_get_longest_path(amxb_ubus_ctx, &path, &rel_path), exit);

    object = strdup(amxd_path_get(&path, 0));

    if(method[0] == '_') {
        amxc_var_t* vrel_path = GET_ARG(args, "rel_path");
        if(vrel_path == NULL) {
            amxc_var_add_key(cstring_t, args, "rel_path", amxc_string_get(&rel_path, 0));
        } else {
            amxc_string_appendf(&rel_path, "%s", GET_CHAR(vrel_path, NULL));
            amxc_var_set(cstring_t, vrel_path, amxc_string_get(&rel_path, 0));
        }
        invoke_ctx->method = method;
        method = NULL;
    } else {
        amxc_var_add_key(cstring_t, args, "rel_path", amxc_string_get(&rel_path, 0));
        invoke_ctx->method = strdup("_exec");
    }
    invoke_ctx->object = object;
    object = NULL;

    retval = 0;

exit:
    free(object);
    free(method);
    amxc_string_clean(&rel_path);
    amxd_path_clean(&path);
    return retval;
}

Here is the call graph for this function:

Here is the caller graph for this function:

amxb_ubus_convert_out_args()

static void amxb_ubus_convert_out_args ( amxc_var_t *  result )

static

Definition at line 125 of file amxb_ubus_invoke.c.

                                                           {
    amxc_var_t* out_args = GETI_ARG(result, 1);
    amxc_var_t* args = GET_ARG(out_args, "args");
    amxc_var_t copy_var;

    amxc_var_init(&copy_var);

    when_null(args, exit);

    amxc_var_move(&copy_var, args);
    amxc_var_move(out_args, &copy_var);

exit:
    amxc_var_clean(&copy_var);
    return;
}

Here is the caller graph for this function:

amxb_ubus_get_longest_path()

int PRIVATE amxb_ubus_get_longest_path	(	amxb_ubus_t *	amxb_ubus_ctx,
		amxd_path_t *	path,
		amxc_string_t *	rel_path
	)

Definition at line 243 of file amxb_ubus_invoke.c.

                                                                {
    int retval = -1;
    char* part = NULL;
    const char* object = NULL;
    uint32_t id = 0;

    do{
        object = amxd_path_get(path, 0);
        when_str_empty(object, exit);
        retval = ubus_lookup_id(amxb_ubus_ctx->ubus_ctx, object, &id);
        if((retval == 0) && (id != 0)) {
            break;
        }
        free(part);
        part = amxd_path_get_last(path, true);
        amxc_string_prependf(rel_path, "%s", part);
    } while (part != NULL);

exit:
    free(part);
    return retval;
}

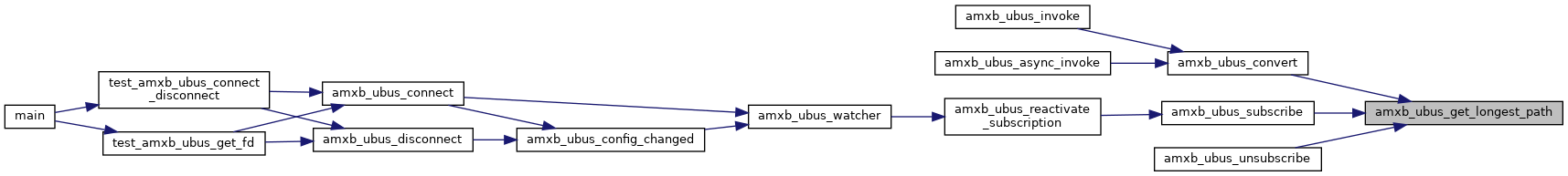

Here is the caller graph for this function:

amxb_ubus_invoke()

int PRIVATE amxb_ubus_invoke	(	void *const	ctx,
		amxb_invoke_t *	invoke_ctx,
		amxc_var_t *	args,
		amxb_request_t *	request,
		int	timeout
	)

Definition at line 331 of file amxb_ubus_invoke.c.

                                          {
    amxb_ubus_t* amxb_ubus_ctx = (amxb_ubus_t*) ctx;
    uint32_t id = 0;
    int ret = amxd_status_unknown_error;
    amxb_ubus_request_t* amxb_ubus_req = NULL;

    when_str_empty(invoke_ctx->object, exit);
    amxb_ubus_req = (amxb_ubus_request_t*) calloc(1, sizeof(amxb_ubus_request_t));
    when_null(amxb_ubus_req, exit);
    amxc_var_init(&amxb_ubus_req->args);
    amxb_ubus_transform_args(&amxb_ubus_req->args, args, invoke_ctx->method);

    if(amxb_ubus_invoke_base(amxb_ubus_ctx,
                             invoke_ctx->object,
                             args,
                             request,
                             &id) != 0) {
        when_failed(amxb_ubus_convert(amxb_ubus_ctx, invoke_ctx, &amxb_ubus_req->args), exit);
        ret = amxb_ubus_invoke_base(amxb_ubus_ctx,
                                    invoke_ctx->object,
                                    &amxb_ubus_req->args,
                                    request,
                                    &id);
        ret = amxb_ubus_status_to_amxd_status(ret, request->result);
        request->bus_retval = ret;
        amxb_ubus_req->converted = true;
        when_failed(ret, exit);
    }

    amxb_ubus_req->request = request;
    request->bus_data = amxb_ubus_req;

    ret = ubus_invoke(amxb_ubus_ctx->ubus_ctx,
                      id,
                      invoke_ctx->method,
                      amxb_ubus_ctx->b.head,
                      amxb_ubus_result_data,
                      amxb_ubus_req,
                      timeout * 1000);

    if((ret == UBUS_STATUS_METHOD_NOT_FOUND) && (invoke_ctx->method[0] != '_')) {
        const amxc_htable_t* htable = NULL;
        htable = amxc_var_constcast(amxc_htable_t, &amxb_ubus_req->args);
        blob_buf_init(&amxb_ubus_ctx->b, 0);

        amxb_ubus_format_blob_table(htable, &amxb_ubus_ctx->b);

        ret = ubus_invoke(amxb_ubus_ctx->ubus_ctx,
                          id,
                          "_exec",
                          amxb_ubus_ctx->b.head,
                          amxb_ubus_result_data,
                          amxb_ubus_req,
                          timeout * 1000);
    }

    ret = amxb_ubus_status_to_amxd_status(ret, request->result);
    request->bus_retval = ret;
    if(amxb_ubus_req->converted) {
        amxb_ubus_convert_out_args(request->result);
    }

exit:
    if(amxb_ubus_req != NULL) {
        amxc_var_clean(&amxb_ubus_req->args);
    }
    free(amxb_ubus_req);
    return ret;
}

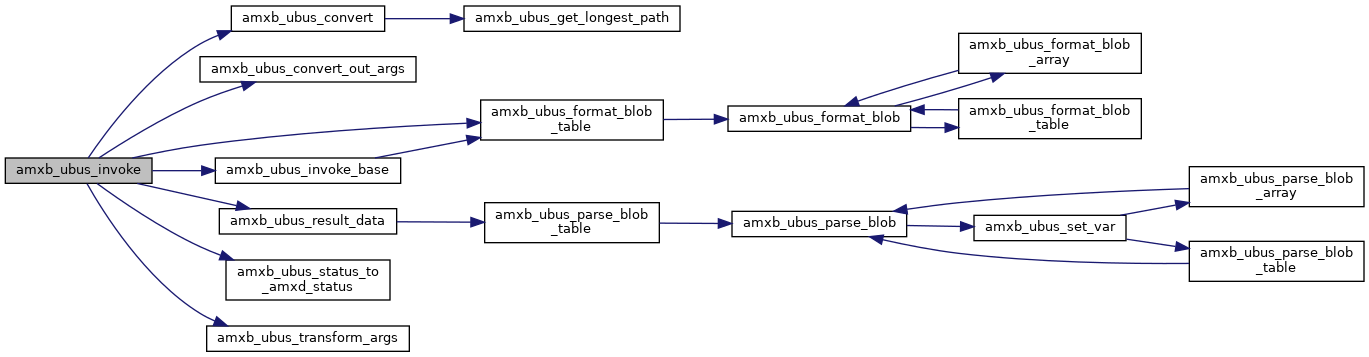

Here is the call graph for this function:

amxb_ubus_invoke_base()

int PRIVATE amxb_ubus_invoke_base	(	amxb_ubus_t *	amxb_ubus_ctx,
		const char *	object,
		amxc_var_t *	args,
		amxb_request_t *	request,
		uint32_t *	id
	)

Definition at line 303 of file amxb_ubus_invoke.c.

                                                {
    int retval = -1;

    // lookup id can cause the ubus blob msg to be overwritten
    // first do the lookup and then initialize the blob
    retval = ubus_lookup_id(amxb_ubus_ctx->ubus_ctx, object, id);
    if(retval != 0) {
        goto exit;
    }

    blob_buf_init(&amxb_ubus_ctx->b, 0);

    if(args != NULL) {
        when_true(amxc_var_type_of(args) != AMXC_VAR_ID_HTABLE, exit);
        const amxc_htable_t* htable = amxc_var_constcast(amxc_htable_t, args);
        when_failed(amxb_ubus_format_blob_table(htable, &amxb_ubus_ctx->b), exit);
    }

    amxc_var_set_type(request->result, AMXC_VAR_ID_LIST);

exit:
    return retval;
}

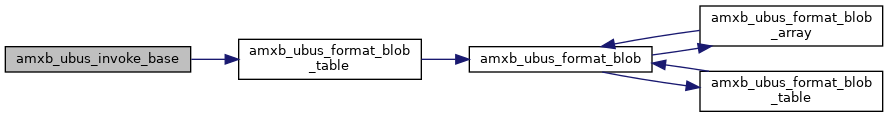

Here is the call graph for this function:

Here is the caller graph for this function:

amxb_ubus_request_done()

static void amxb_ubus_request_done ( struct ubus_request *  req, int  ret  )

static

Definition at line 142 of file amxb_ubus_invoke.c.

                                                                      {
    amxb_ubus_request_t* amxb_ubus_req = (amxb_ubus_request_t*) req->priv;
    amxb_request_t* request = amxb_ubus_req->request;
    amxc_var_t* var_method_name = GET_ARG(&amxb_ubus_req->args, "method");
    const char* method = GET_CHAR(var_method_name, NULL);
    const amxb_bus_ctx_t* ctx = amxb_request_get_ctx(request);
    amxb_ubus_t* amxb_ubus_ctx = (amxb_ubus_t*) ctx->bus_ctx;

    if((ret == UBUS_STATUS_METHOD_NOT_FOUND) && (method != NULL) && (method[0] != '_')) {
        const amxc_htable_t* htable = amxc_var_constcast(amxc_htable_t, &amxb_ubus_req->args);
        blob_buf_init(&amxb_ubus_ctx->b, 0);

        amxb_ubus_format_blob_table(htable, &amxb_ubus_ctx->b);

        ret = ubus_invoke_async(amxb_ubus_ctx->ubus_ctx,
                                amxb_ubus_req->id,
                                "_exec",
                                amxb_ubus_ctx->b.head,
                                amxb_ubus_req->ubus_req);

        amxb_ubus_req->ubus_req->data_cb = amxb_ubus_result_data;
        amxb_ubus_req->ubus_req->complete_cb = amxb_ubus_request_done;
        amxb_ubus_req->ubus_req->priv = amxb_ubus_req;
        amxb_ubus_req->converted = true;

        amxc_var_set(cstring_t, var_method_name, "_exec");
        ubus_complete_request_async(amxb_ubus_ctx->ubus_ctx, amxb_ubus_req->ubus_req);

        if(ret == 0) {
            return;
        }
    }

    ret = amxb_ubus_status_to_amxd_status(ret, request->result);
    request->bus_retval = ret;
    if(amxb_ubus_req->converted) {
        amxb_ubus_convert_out_args(request->result);
    }

    if(request->done_fn != NULL) {
        request->done_fn(ctx, request, ret, request->priv);
    }
}

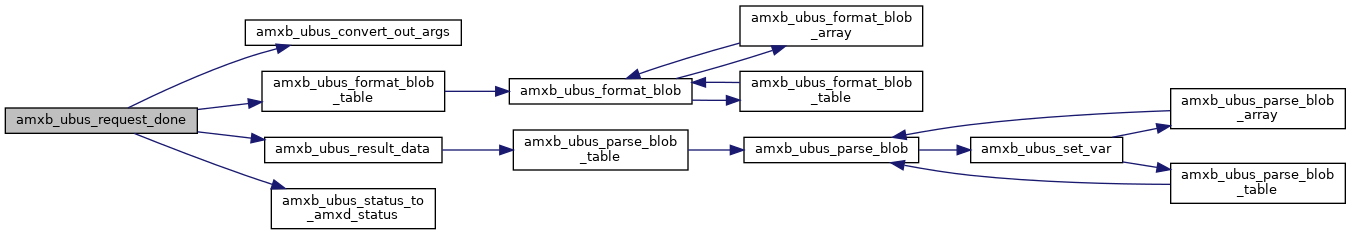

Here is the call graph for this function:

Here is the caller graph for this function:

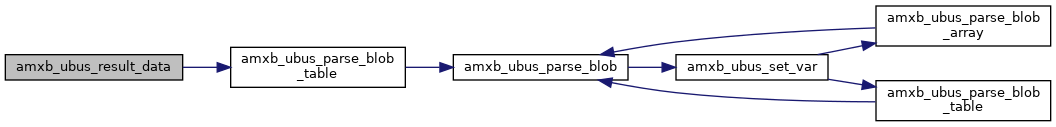

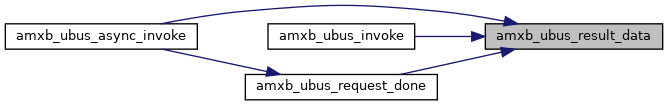

amxb_ubus_result_data()

void PRIVATE amxb_ubus_result_data	(	struct ubus_request *	req,
		AMXB_UNUSED int	type,
		struct blob_attr *	msg
	)

Definition at line 268 of file amxb_ubus_invoke.c.

                                                          {
    amxb_ubus_request_t* amxb_ubus_req = (amxb_ubus_request_t*) req->priv;
    amxb_request_t* request = amxb_ubus_req->request;

    amxc_var_t* result = request->result;
    amxc_var_t* item = NULL;
    amxc_var_t* rv = NULL;
    const amxb_bus_ctx_t* ctx = NULL;

    amxc_var_new(&item);
    ctx = amxb_request_get_ctx(request);

    if((msg != NULL) && (result != NULL)) {
        amxc_var_set_type(item, AMXC_VAR_ID_HTABLE);
        amxb_ubus_parse_blob_table(item, (struct blob_attr*) blob_data(msg), blob_len(msg));
        rv = GET_ARG(item, "retval");
        if(rv == NULL) {
            amxc_var_set_index(result, -1, item, AMXC_VAR_FLAG_DEFAULT);
        } else {
            amxc_var_take_it(rv);
            amxc_var_set_index(result, -1, rv, AMXC_VAR_FLAG_DEFAULT);
            amxc_var_delete(&item);
            item = rv;
        }
    } else {
        amxc_var_delete(&item);
    }

    if((request->cb_fn != NULL) && (item != NULL)) {
        request->cb_fn(ctx, item, request->priv);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

amxb_ubus_status_to_amxd_status()

static int amxb_ubus_status_to_amxd_status ( int  rv, amxc_var_t *  result  )

static

Definition at line 65 of file amxb_ubus_invoke.c.

                                                                       {
    int retval = amxd_status_ok;
    amxc_var_t* error = GETI_ARG(result, 2);

    int status[] = {
        amxd_status_ok,                        // UBUS_STATUS_OK
        amxd_status_invalid_function,          // UBUS_STATUS_INVALID_COMMAND
        amxd_status_invalid_arg,               // UBUS_STATUS_INVALID_ARGUMENT
        amxd_status_function_not_found,        // UBUS_STATUS_METHOD_NOT_FOUND
        amxd_status_object_not_found,          // UBUS_STATUS_NOT_FOUND,
        amxd_status_unknown_error,             // UBUS_STATUS_NO_DATA
        amxd_status_permission_denied,         // UBUS_STATUS_PERMISSION_DENIED
        amxd_status_timeout,                   // UBUS_STATUS_TIMEOUT
        amxd_status_not_supported,             // UBUS_STATUS_NOT_SUPPORTED
        amxd_status_unknown_error,             // UBUS_STATUS_UNKNOWN_ERROR
        amxd_status_unknown_error,             // UBUS_STATUS_CONNECTION_FAILED
    };

    if((error != NULL) && (GET_ARG(error, "amxd-error-code") != NULL)) {
        // to be able to pass the amxd error code 3 results are passed over ubus
        // 1 - the function return value
        // 2 - the function out arguments
        // 3 - the amxd error code
        retval = GET_UINT32(error, "amxd-error-code");
        amxc_var_delete(&error);
        // if the error code was found, check if nr 2 is an empty table,
        // if an empty table remove it from the result.
        error = GETI_ARG(result, 1);
        if((amxc_var_type_of(error) == AMXC_VAR_ID_HTABLE) &&
           amxc_htable_is_empty(amxc_var_constcast(amxc_htable_t, error))) {
            amxc_var_delete(&error);
        }
    } else {
        if((rv >= 0) && (rv < (int) (sizeof(status) / sizeof(int)))) {
            retval = status[rv];
        } else {
            retval = AMXB_ERROR_BUS_UNKNOWN;
        }
    }

    return retval;
}

Here is the caller graph for this function:

amxb_ubus_transform_args()

static void amxb_ubus_transform_args ( amxc_var_t *  dest, amxc_var_t *  args, const char *  method  )

static

Definition at line 109 of file amxb_ubus_invoke.c.

                                                                                             {
    amxc_var_set_type(dest, AMXC_VAR_ID_HTABLE);
    if(method[0] != '_') {
        amxc_var_add_key(cstring_t, dest, "method", method);
        if(args != NULL) {
            amxc_var_set_key(dest, "args", args, AMXC_VAR_FLAG_COPY);
        } else {
            amxc_var_add_key(amxc_htable_t, dest, "args", NULL);
        }
    } else {
        if(args != NULL) {
            amxc_var_copy(dest, args);
        }
    }
}

Here is the caller graph for this function:

amxb_ubus_wait_request()

int PRIVATE amxb_ubus_wait_request	(	AMXB_UNUSED void *const	ctx,
		amxb_request_t *	request,
		int	timeout
	)

Definition at line 465 of file amxb_ubus_invoke.c.

                                                {
    amxb_ubus_t* amxb_ubus_ctx = (amxb_ubus_t*) ctx;
    amxb_ubus_request_t* amxb_ubus_req = (amxb_ubus_request_t*) request->bus_data;
    struct ubus_request* ubus_req = amxb_ubus_req->ubus_req;

    return ubus_complete_request(amxb_ubus_ctx->ubus_ctx, ubus_req, timeout);
}
