avl_tree Struct Reference

#include <avl.h>

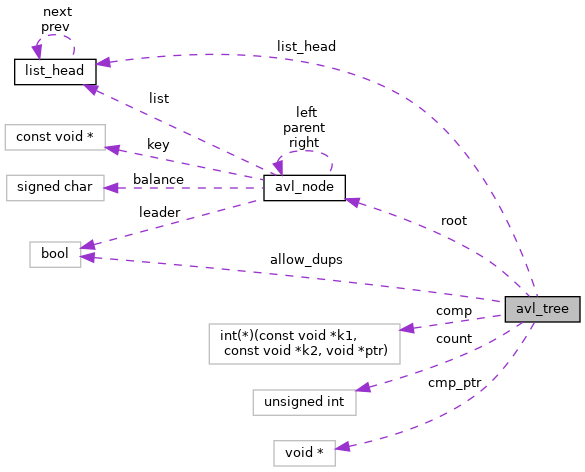

Collaboration diagram for avl_tree:

Data Fields
struct list_head	list_head
struct avl_node *	root
unsigned int	count
bool	allow_dups
avl_tree_comp	comp
void *	cmp_ptr

Detailed Description

This struct is the central management part of an avl tree. One of them is necessary for each avl_tree.

Definition at line 110 of file avl.h.

Field Documentation

allow_dups

bool avl_tree::allow_dups

true if multiple nodes with the same key are allowed in the tree, false otherwise

Definition at line 131 of file avl.h.

cmp_ptr

void* avl_tree::cmp_ptr

custom pointer delivered to the tree comparator

Definition at line 144 of file avl.h.

comp

avl_tree_comp avl_tree::comp

pointer to the tree comparator

First two parameters are keys to compare, third parameter is a copy of cmp_ptr

Definition at line 139 of file avl.h.

count

unsigned int avl_tree::count

number of nodes in the avl tree

Definition at line 125 of file avl.h.

list_head

struct list_head avl_tree::list_head

Head of linked list node for supporting easy iteration and multiple elments with the same key.

Definition at line 94 of file avl.h.

root

struct avl_node* avl_tree::root

pointer to the root node of the avl tree, NULL if tree is empty

Definition at line 120 of file avl.h.

---

The documentation for this struct was generated from the following file:

• avl.h
