udebug-proto.h File Reference

#include "udebug.h"

Go to the source code of this file.

Data Structures
struct	udebug_hdr
struct	udebug_client_msg

Enumerations
enum	udebug_client_msg_type {   CL_MSG_RING_ADD , CL_MSG_RING_REMOVE , CL_MSG_RING_NOTIFY , CL_MSG_GET_HANDLE ,   CL_MSG_RING_GET , CL_MSG_ERROR }

Functions
struct udebug_client_msg	__attribute__ ((packed, aligned(4)))
static struct udebug_ptr *	udebug_ring_ptr (struct udebug_hdr *hdr, uint32_t idx)
static void *	udebug_buf_ptr (struct udebug_buf *buf, uint32_t ofs)

Variables
uint8_t	type
uint8_t	_pad [3]
uint32_t	id
union {
struct {
uint32_t   ring_size
uint32_t   data_size
}
uint32_t   notify_mask
};

Enumeration Type Documentation

udebug_client_msg_type

enum udebug_client_msg_type

Enumerator
CL_MSG_RING_ADD
CL_MSG_RING_REMOVE
CL_MSG_RING_NOTIFY
CL_MSG_GET_HANDLE
CL_MSG_RING_GET
CL_MSG_ERROR

Definition at line 39 of file udebug-proto.h.

                            {
        CL_MSG_RING_ADD,
        CL_MSG_RING_REMOVE,
        CL_MSG_RING_NOTIFY,
        CL_MSG_GET_HANDLE,
        CL_MSG_RING_GET,
        CL_MSG_ERROR,
};

Function Documentation

__attribute__()

struct udebug_client_msg __attribute__

(

(packed, aligned(4))

)

udebug_buf_ptr()

static void* udebug_buf_ptr ( struct udebug_buf *  buf, uint32_t  ofs  )

inlinestatic

Definition at line 67 of file udebug-proto.h.

{
        return buf->data + (ofs & (buf->data_size - 1));
}

Here is the caller graph for this function:

udebug_ring_ptr()

static struct udebug_ptr* udebug_ring_ptr ( struct udebug_hdr *  hdr, uint32_t  idx  )

inlinestatic

Definition at line 61 of file udebug-proto.h.

{
        struct udebug_ptr *ring = (struct udebug_ptr *)&hdr[1];
        return &ring[idx & (hdr->ring_size - 1)];
}

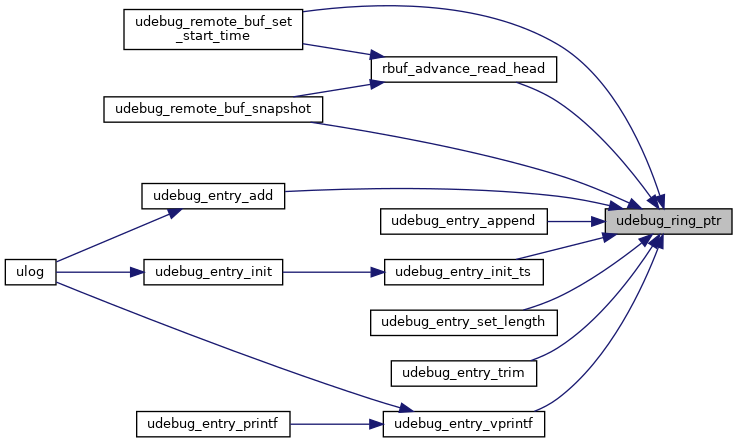

Here is the caller graph for this function:

Variable Documentation

union { ... }

_pad

uint8_t _pad[3]

Definition at line 1 of file udebug-proto.h.

data_size

uint32_t data_size

Definition at line 5 of file udebug-proto.h.

id

uint32_t id

Definition at line 2 of file udebug-proto.h.

notify_mask

uint32_t notify_mask

Definition at line 7 of file udebug-proto.h.

ring_size

uint32_t ring_size

Definition at line 5 of file udebug-proto.h.

type

uint8_t type

Definition at line 0 of file udebug-proto.h.
