uloop-epoll.c File Reference

Go to the source code of this file.

Macros
#define	EPOLLRDHUP   0x2000

Functions
static int	uloop_init_pollfd (void)
static int	register_poll (struct uloop_fd *fd, unsigned int flags)
static int	__uloop_fd_delete (struct uloop_fd *sock)
static int	uloop_fetch_events (int timeout)
static void	dispatch_timer (struct uloop_fd *u, unsigned int events)
static int	timer_register (struct uloop_interval *tm, unsigned int msecs)
static int	timer_remove (struct uloop_interval *tm)
static int64_t	timer_next (struct uloop_interval *tm)

Variables
static struct epoll_event	events [ULOOP_MAX_EVENTS]

Macro Definition Documentation

EPOLLRDHUP

#define EPOLLRDHUP   0x2000

FIXME: uClibc < 0.9.30.3 does not define EPOLLRDHUP for Linux >= 2.6.17

Definition at line 23 of file uloop-epoll.c.

Function Documentation

__uloop_fd_delete()

static int __uloop_fd_delete ( struct uloop_fd *  sock )

static

Definition at line 62 of file uloop-epoll.c.

{
        sock->flags = 0;
        return epoll_ctl(poll_fd, EPOLL_CTL_DEL, sock->fd, 0);
}

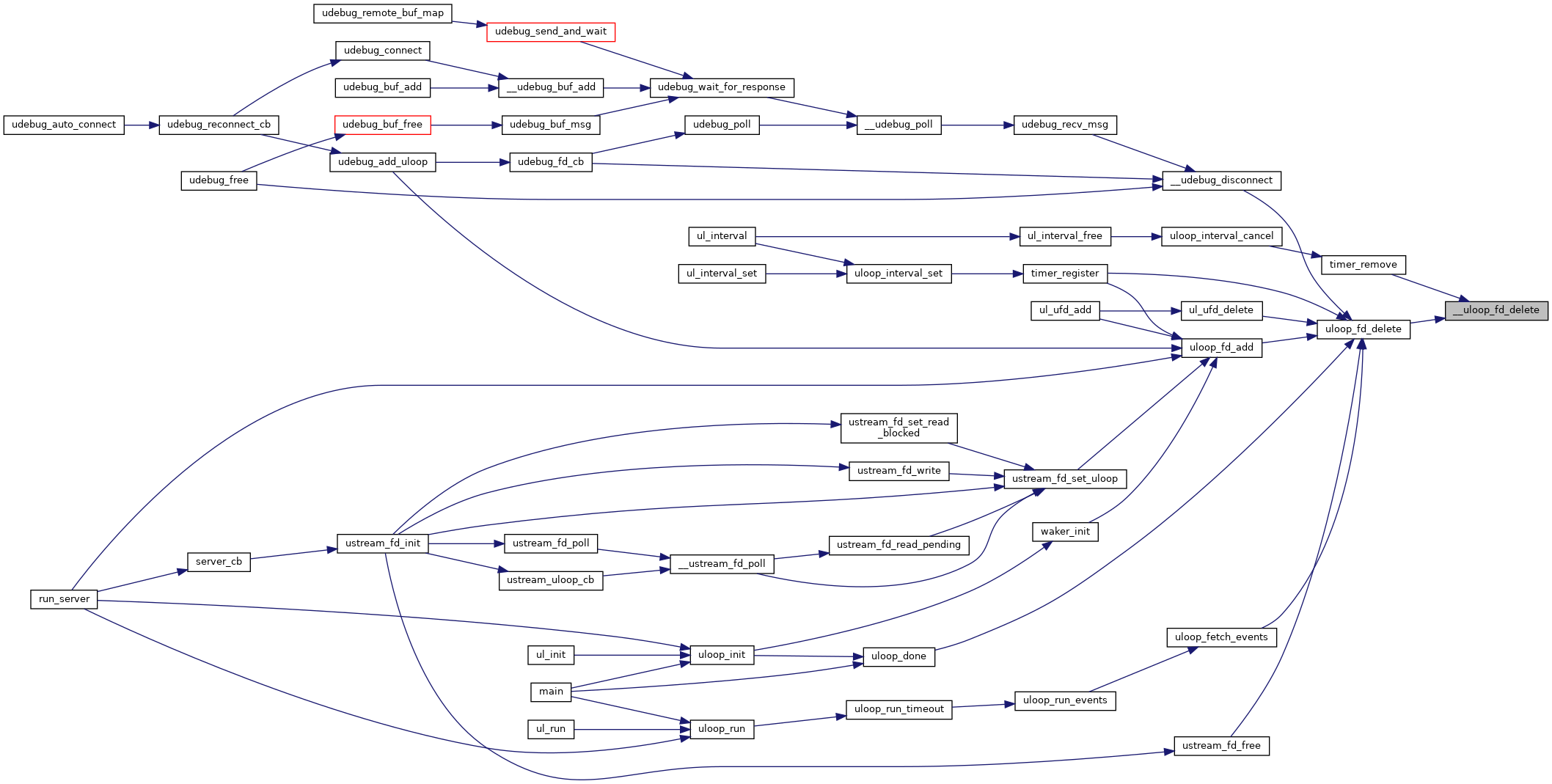

Here is the caller graph for this function:

dispatch_timer()

static void dispatch_timer ( struct uloop_fd *  u, unsigned int  events  )

static

Definition at line 108 of file uloop-epoll.c.

{
        if (!(events & ULOOP_READ))
                return;

        uint64_t fired;

        if (read(u->fd, &fired, sizeof(fired)) != sizeof(fired))
                return;

        struct uloop_interval *tm = container_of(u, struct uloop_interval, priv.ufd);

        tm->expirations += fired;
        tm->cb(tm);
}

Here is the caller graph for this function:

register_poll()

static int register_poll ( struct uloop_fd *  fd, unsigned int  flags  )

static

Definition at line 39 of file uloop-epoll.c.

{
        struct epoll_event ev;
        int op = fd->registered ? EPOLL_CTL_MOD : EPOLL_CTL_ADD;

        memset(&ev, 0, sizeof(struct epoll_event));

        if (flags & ULOOP_READ)
                ev.events |= EPOLLIN | EPOLLRDHUP;

        if (flags & ULOOP_WRITE)
                ev.events |= EPOLLOUT;

        if (flags & ULOOP_EDGE_TRIGGER)
                ev.events |= EPOLLET;

        ev.data.ptr = fd;

        return epoll_ctl(poll_fd, op, fd->fd, &ev);
}

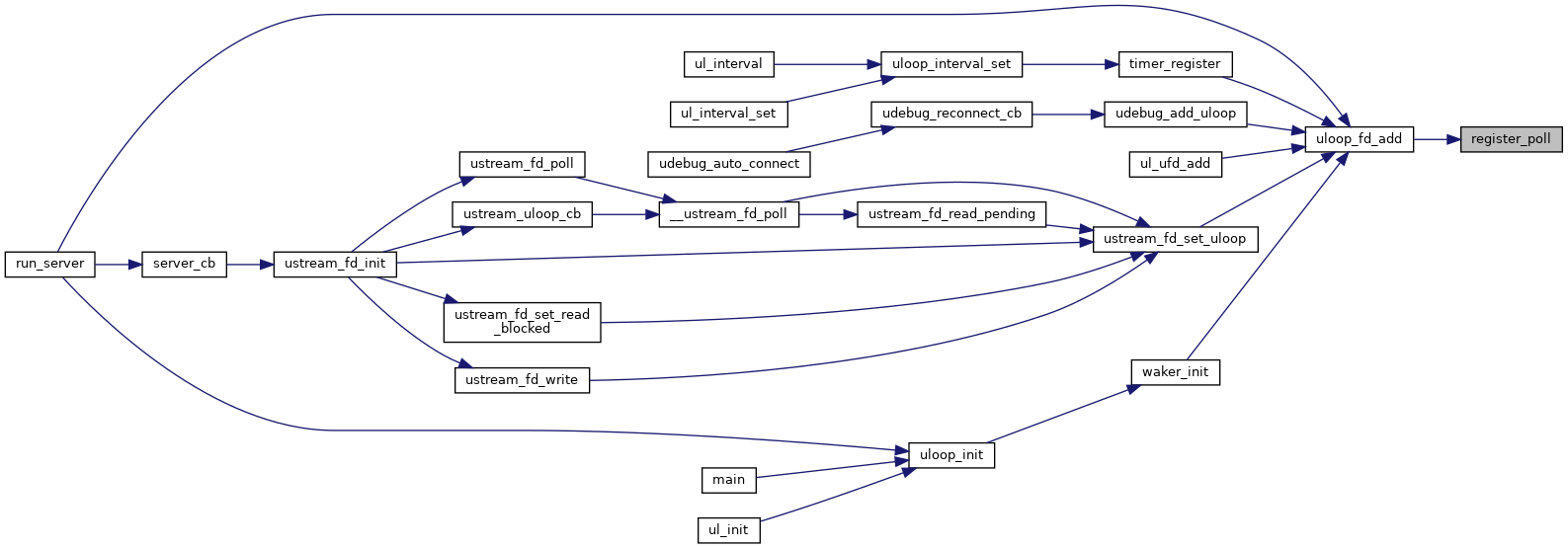

Here is the caller graph for this function:

timer_next()

static int64_t timer_next ( struct uloop_interval *  tm )

static

Definition at line 175 of file uloop-epoll.c.

{
        struct itimerspec spec;

        if (!tm->priv.ufd.registered)
                return -1;

        if (timerfd_gettime(tm->priv.ufd.fd, &spec) == -1)
                return -1;

        return spec.it_value.tv_sec * 1000 + spec.it_value.tv_nsec / 1000000;
}

Here is the caller graph for this function:

timer_register()

static int timer_register ( struct uloop_interval *  tm, unsigned int  msecs  )

static

Definition at line 124 of file uloop-epoll.c.

{
        if (!tm->priv.ufd.registered) {
                int fd = timerfd_create(CLOCK_MONOTONIC, TFD_CLOEXEC|TFD_NONBLOCK);

                if (fd == -1)
                        return -1;

                tm->priv.ufd.fd = fd;
                tm->priv.ufd.cb = dispatch_timer;
        }

        struct itimerspec spec = {
                .it_value = {
                        .tv_sec = msecs / 1000,
                        .tv_nsec = (msecs % 1000) * 1000000
                },
                .it_interval = {
                        .tv_sec = msecs / 1000,
                        .tv_nsec = (msecs % 1000) * 1000000
                }
        };

        if (timerfd_settime(tm->priv.ufd.fd, 0, &spec, NULL) == -1)
                goto err;

        if (uloop_fd_add(&tm->priv.ufd, ULOOP_READ) == -1)
                goto err;

        return 0;

err:
        uloop_fd_delete(&tm->priv.ufd);
        close(tm->priv.ufd.fd);
        memset(&tm->priv.ufd, 0, sizeof(tm->priv.ufd));

        return -1;
}

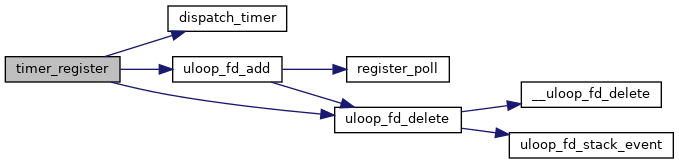

Here is the call graph for this function:

Here is the caller graph for this function:

timer_remove()

static int timer_remove ( struct uloop_interval *  tm )

static

Definition at line 163 of file uloop-epoll.c.

{
        int ret = __uloop_fd_delete(&tm->priv.ufd);

        if (ret == 0) {
                close(tm->priv.ufd.fd);
                memset(&tm->priv.ufd, 0, sizeof(tm->priv.ufd));
        }

        return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

uloop_fetch_events()

static int uloop_fetch_events ( int  timeout )

static

Definition at line 68 of file uloop-epoll.c.

{
        int n, nfds;

        nfds = epoll_wait(poll_fd, events, ARRAY_SIZE(events), timeout);
        for (n = 0; n < nfds; ++n) {
                struct uloop_fd_event *cur = &cur_fds[n];
                struct uloop_fd *u = events[n].data.ptr;
                unsigned int ev = 0;

                cur->fd = u;
                if (!u)
                        continue;

                if (events[n].events & (EPOLLERR|EPOLLHUP)) {
                        u->error = true;
                        if (!(u->flags & ULOOP_ERROR_CB))
                                uloop_fd_delete(u);
                }

                if(!(events[n].events & (EPOLLRDHUP|EPOLLIN|EPOLLOUT|EPOLLERR|EPOLLHUP))) {
                        cur->fd = NULL;
                        continue;
                }

                if(events[n].events & EPOLLRDHUP)
                        u->eof = true;

                if(events[n].events & EPOLLIN)
                        ev |= ULOOP_READ;

                if(events[n].events & EPOLLOUT)
                        ev |= ULOOP_WRITE;

                cur->events = ev;
        }

        return nfds;
}

Here is the call graph for this function:

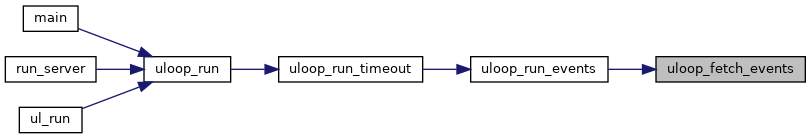

Here is the caller graph for this function:

uloop_init_pollfd()

static int uloop_init_pollfd ( void  )

static

Definition at line 26 of file uloop-epoll.c.

{
        if (poll_fd >= 0)
                return 0;

        poll_fd = epoll_create(32);
        if (poll_fd < 0)
                return -1;

        fcntl(poll_fd, F_SETFD, fcntl(poll_fd, F_GETFD) | FD_CLOEXEC);
        return 0;
}

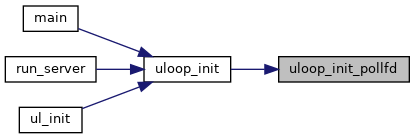

Here is the caller graph for this function:

Variable Documentation

events

struct epoll_event events[ULOOP_MAX_EVENTS]

static

Definition at line 39 of file uloop-epoll.c.
