pon_ctrl.c File Reference

#include "pon_ctrl.h"
#include <amxc/amxc_macros.h>
#include <amxc/amxc.h>
#include <amxm/amxm.h>
#include "module_mgmt.h"
#include "xpon_trace.h"

Go to the source code of this file.

Functions
static int	call_pon_ctrl_function_common (const char *const func_name, amxc_var_t *args, amxc_var_t *ret)
static void	set_max_nr_of_onus (void)
void	pon_ctrl_init (void)
void	pon_ctrl_set_enable (const char *const path, bool enable)
int	pon_ctrl_get_list_of_instances (const char *const path, amxc_var_t *ret)
int	pon_ctrl_get_object_content (const char *const path, uint32_t index, amxc_var_t *ret)
int	pon_ctrl_get_param_values (const char *const path, const char *const names, amxc_var_t *ret)
void	pon_ctrl_handle_file_descriptor (int fd)
void	pon_ctrl_set_password (const char *const ani_path, const char *const password, bool hex)

Variables
static const char *const	MOD_PON_CTRL = "pon_ctrl"
static const char *const	SET_MAX_NR_OF_ONUS = "set_max_nr_of_onus"
static const char *const	SET_ENABLE = "set_enable"
static const char *const	GET_LIST_OF_INSTANCES = "get_list_of_instances"
static const char *const	GET_OBJECT_CONTENT = "get_object_content"
static const char *const	GET_PARAM_VALUES = "get_param_values"
static const char *const	HANDLE_FILE_DESCRIPTOR = "handle_file_descriptor"
static const char *const	SET_PASSWORD = "set_password"

Function Documentation

call_pon_ctrl_function_common()

static int call_pon_ctrl_function_common ( const char *const  func_name, amxc_var_t *  args, amxc_var_t *  ret  )

static

Definition at line 85 of file pon_ctrl.c.

                                                          {

    int rc = -1;
    amxc_var_t* ret_dummy = NULL;

    when_null_trace(args, exit, ERROR, "args is NULL");

    const char* const so_name = mod_get_vendor_module_loaded(); /* shared_object_name */
    when_null_trace(so_name, exit, ERROR, "No vendor module loaded");

    if(NULL == ret) {
        if(amxc_var_new(&ret_dummy)) {
            SAH_TRACEZ_ERROR(ME, "Failed to allocate memory");
            goto exit;
        }
    }

    rc = amxm_execute_function(so_name, MOD_PON_CTRL, func_name, args,
                               ret ? ret : ret_dummy);
    if(rc) {
        SAH_TRACEZ_ERROR(ME, "%s.%s.%s() failed: rc=%d", so_name, MOD_PON_CTRL,
                         func_name, rc);
    }

exit:
    if(ret_dummy != NULL) {
        amxc_var_delete(&ret_dummy);
    }
    return rc;
}

Here is the call graph for this function:

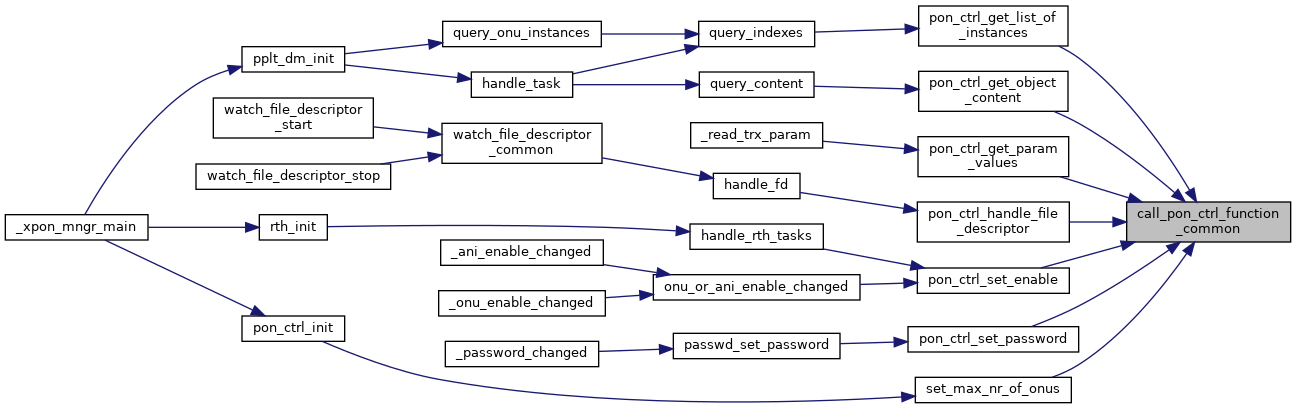

Here is the caller graph for this function:

pon_ctrl_get_list_of_instances()

int pon_ctrl_get_list_of_instances	(	const char *const	path,
		amxc_var_t *	ret
	)

Ask vendor module which instances exist for a template object.

Parameters

[in]	path	path to template object, e.g. "XPON.ONU" or "XPON.ONU.1.SoftwareImage"
[in,out]	ret	function returns result via this parameter. See below for more info.

The param ret should be an htable with following keys upon success:

• 'indexes': a string with comma-separated integers representing the instance indexes. It's an empty string if no instances exist.

Returns

0 on success, -1 upon error

Definition at line 187 of file pon_ctrl.c.

                                                                            {

    amxc_var_t args;
    amxc_var_init(&args);
    amxc_var_set(cstring_t, &args, path);

    const int rc =
        call_pon_ctrl_function_common(GET_LIST_OF_INSTANCES, &args, ret);

    amxc_var_clean(&args);
    return rc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pon_ctrl_get_object_content()

int pon_ctrl_get_object_content	(	const char *const	path,
		uint32_t	index,
		amxc_var_t *	ret
	)

Ask vendor module for the content (parameter values) of an object.

Parameters

[in]	path	object path. This can be a singleton or template object.
[in]	index	instance index when querying the content of an instance. Must be 0 when querying a singleton.
[in,out]	ret	function returns result via this parameter. See below for more info.

The param ret should be an htable with following keys upon success:

• 'parameters': values for the parameters of the object
• 'keys': only present in ret when querying an instance. It should contain values for the keys of the template object.

Returns

0 on success, -1 upon error

Definition at line 216 of file pon_ctrl.c.

                                                                                         {

    amxc_var_t args;
    amxc_var_init(&args);

    amxc_var_set_type(&args, AMXC_VAR_ID_HTABLE);
    amxc_var_add_key(cstring_t, &args, "path", path);
    if(index) {
        amxc_var_add_key(uint32_t, &args, "index", index);
    }

    const int rc = call_pon_ctrl_function_common(GET_OBJECT_CONTENT, &args, ret);

    amxc_var_clean(&args);
    return rc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pon_ctrl_get_param_values()

int pon_ctrl_get_param_values	(	const char *const	path,
		const char *const	names,
		amxc_var_t *	ret
	)

Ask vendor module for the values of one or more parameters of an object.

Parameters

[in]	path	object path of a singleton or an instance
[in]	names	parameter names formatted as a comma-separated list. The vendor module might support passing max 1 parameter name. Example: "RxPower".
[in,out]	ret	function returns result via this parameter. See below for more info.

The param ret should be an htable with following keys upon success:

• 'parameters': values for the requested parameter(s) of the object

Returns

0 on success, -1 upon error

Definition at line 248 of file pon_ctrl.c.

                                               {

    amxc_var_t args;
    amxc_var_init(&args);

    amxc_var_set_type(&args, AMXC_VAR_ID_HTABLE);
    amxc_var_add_key(cstring_t, &args, "path", path);
    amxc_var_add_key(cstring_t, &args, "names", names);

    SAH_TRACEZ_DEBUG(ME, "path='%s' names='%s'", path, names);
    const int rc = call_pon_ctrl_function_common(GET_PARAM_VALUES, &args, ret);

    amxc_var_clean(&args);
    return rc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pon_ctrl_handle_file_descriptor()

void pon_ctrl_handle_file_descriptor

(

int

fd

)

Ask vendor module to handle (a message arriving on) a file descriptor.

Parameters

[in]

fd

the file descriptor to handle

Examples for the file descriptor:

• file descriptor of the socket the vendor module uses for IPC with the vendor specific PON/OMCI stack.
• file descriptor of a socket to monitor netlink messages from the kernel.
• ...

Definition at line 277 of file pon_ctrl.c.

                                             {

    amxc_var_t var;
    amxc_var_init(&var);
    amxc_var_set(fd_t, &var, fd);
    call_pon_ctrl_function_common(HANDLE_FILE_DESCRIPTOR, &var, NULL);
    amxc_var_clean(&var);
}

Here is the call graph for this function:

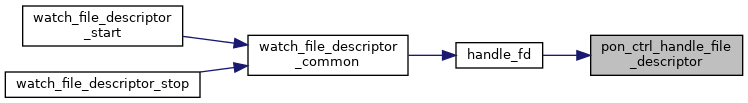

Here is the caller graph for this function:

pon_ctrl_init()

void pon_ctrl_init

(

void

)

Initialize the pon_ctrl part of this plugin.

The function forwards value of MAX_NR_OF_ONUS to the vendor module.

The plugin must call this function once at startup, after loading the vendor module.

Definition at line 142 of file pon_ctrl.c.

                         {
    set_max_nr_of_onus();
}

Here is the call graph for this function:

Here is the caller graph for this function:

pon_ctrl_set_enable()

void pon_ctrl_set_enable	(	const char *const	path,
		bool	enable
	)

Let vendor module know that a read-write Enable field was changed.

Parameters

[in]	path	path of object whose Enable field was changed, e.g., "XPON.ONU.1", or "XPON.ONU.1.ANI.1"
[in]	enable	true if Enable field was set to true, else false

Definition at line 153 of file pon_ctrl.c.

                                                              {

    amxc_var_t args;
    amxc_var_init(&args);

    SAH_TRACEZ_DEBUG(ME, "path='%s' enable=%d", path, enable);

    amxc_var_set_type(&args, AMXC_VAR_ID_HTABLE);

    amxc_var_add_key(cstring_t, &args, "path", path);
    amxc_var_add_key(bool, &args, "enable", enable);

    if(call_pon_ctrl_function_common(SET_ENABLE, &args, NULL)) {
        SAH_TRACEZ_ERROR(ME, "path='%s' enable=%d: %s() failed",
                         path, enable, SET_ENABLE);
    }

    amxc_var_clean(&args);
}

Here is the call graph for this function:

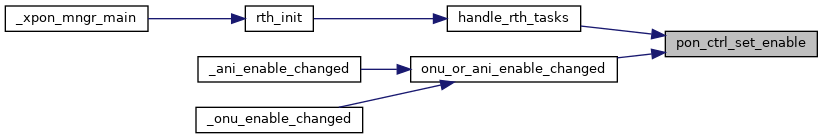

Here is the caller graph for this function:

pon_ctrl_set_password()

void pon_ctrl_set_password	(	const char *const	ani_path,
		const char *const	password,
		bool	hex
	)

Ask vendor module to apply the password.

Parameters

[in]	ani_path	path to ANI instance, e.g. "XPON.ONU.1.ANI.1"
[in]	password	new value for the parameter Password of the ANI referred to by ani_path
[in]	hex	false if password is in ASCII format; true if password is in hexadecimal format

Definition at line 295 of file pon_ctrl.c.

                                     {
    amxc_var_t args;
    amxc_var_init(&args);

    amxc_var_set_type(&args, AMXC_VAR_ID_HTABLE);
    amxc_var_add_key(cstring_t, &args, "ani_path", ani_path);
    amxc_var_add_key(cstring_t, &args, "password", password);
    amxc_var_add_key(bool, &args, "is_hexadecimal_password", hex);

    SAH_TRACEZ_DEBUG(ME, "ani_path='%s' password='%s' hex=%d", ani_path, password, hex);
    call_pon_ctrl_function_common(SET_PASSWORD, &args, NULL);
    amxc_var_clean(&args);
}

Here is the call graph for this function:

Here is the caller graph for this function:

set_max_nr_of_onus()

static void set_max_nr_of_onus ( void  )

static

Forward value of MAX_NR_OF_ONUS to the vendor module.

Definition at line 122 of file pon_ctrl.c.

                                     {
    amxc_var_t args;
    amxc_var_init(&args);
    amxc_var_set(uint32_t, &args, MAX_NR_OF_ONUS);

    if(call_pon_ctrl_function_common(SET_MAX_NR_OF_ONUS, &args, NULL)) {
        SAH_TRACEZ_ERROR(ME, "Failed to set max nr of ONUs");
    }

    amxc_var_clean(&args);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

GET_LIST_OF_INSTANCES

const char* const GET_LIST_OF_INSTANCES = "get_list_of_instances"

static

Definition at line 79 of file pon_ctrl.c.

GET_OBJECT_CONTENT

const char* const GET_OBJECT_CONTENT = "get_object_content"

static

Definition at line 80 of file pon_ctrl.c.

GET_PARAM_VALUES

const char* const GET_PARAM_VALUES = "get_param_values"

static

Definition at line 81 of file pon_ctrl.c.

HANDLE_FILE_DESCRIPTOR

const char* const HANDLE_FILE_DESCRIPTOR = "handle_file_descriptor"

static

Definition at line 82 of file pon_ctrl.c.

MOD_PON_CTRL

const char* const MOD_PON_CTRL = "pon_ctrl"

static

Definition at line 75 of file pon_ctrl.c.

SET_ENABLE

const char* const SET_ENABLE = "set_enable"

static

Definition at line 78 of file pon_ctrl.c.

SET_MAX_NR_OF_ONUS

const char* const SET_MAX_NR_OF_ONUS = "set_max_nr_of_onus"

static

Definition at line 77 of file pon_ctrl.c.

SET_PASSWORD

const char* const SET_PASSWORD = "set_password"

static

Definition at line 83 of file pon_ctrl.c.
