_task Struct Reference

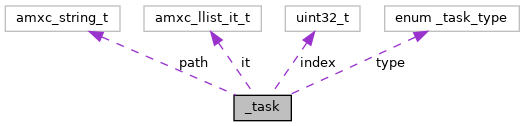

Collaboration diagram for _task:
Data Fields | |
| amxc_string_t | path |
| uint32_t | index |
| task_type_t | type |
| amxc_llist_it_t | it |
Detailed Description
A task to help in populating the XPON DM after startup.
- path object path, e.g. "XPON.ONU"
- index index instance for a template object. 0 if not applicable.
- type task type. See task_type_t.
- it to put a task in the list 's_tasks'
If 'path' refers to a template object, then:
- 'index' is 0 (not applicable) if 'type' is 'task_query_indexes': the task will query the instances of the template object. The task is not for a specific instance of the template object.
- 'index' is an actual instance index if type is 'task_query_content'.
Definition at line 140 of file populate_dm_startup.c.
Field Documentation
◆ index
| uint32_t _task::index |
Definition at line 142 of file populate_dm_startup.c.
◆ it
| amxc_llist_it_t _task::it |
Definition at line 144 of file populate_dm_startup.c.
◆ path
| amxc_string_t _task::path |
Definition at line 141 of file populate_dm_startup.c.
◆ type
| task_type_t _task::type |
Definition at line 143 of file populate_dm_startup.c.
The documentation for this struct was generated from the following file:
