kmodloader.c File Reference

#include <sys/syscall.h>
#include <sys/mman.h>
#include <sys/utsname.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/types.h>
#include <values.h>
#include <errno.h>
#include <stdio.h>
#include <string.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <libgen.h>
#include <glob.h>
#include <elf.h>
#include <ctype.h>
#include <libubox/avl.h>
#include <libubox/avl-cmp.h>
#include <libubox/utils.h>
#include <libubox/ulog.h>
#include <libubox/kvlist.h>
#include <libubox/list.h>

Go to the source code of this file.

Data Structures
struct	param
struct	module
struct	module_node

Macros
#define	_GNU_SOURCE
#define	DEF_MOD_PATH   "/modules/%s/"
#define	MOD_BUILTIN   "modules.builtin"
#define	MOD_BUILTIN_MODINFO   "modules.builtin.modinfo"
#define	MODULE_NAME_LEN   (64 - sizeof(unsigned long))

Enumerations
enum	{   BUILTIN , SCANNED , PROBE , LOADED ,   BLACKLISTED }

Functions
static	KVLIST (options, kvlist_strlen)
static void	free_module (struct module *m)
static int	init_module_folders (void)
static struct module *	find_module (const char *name)
static void	free_modules (void)
static char *	get_module_path (char *name)
static char *	get_module_name (char *path)
static int	elf64_find_section (char *map, const char *section, unsigned int *offset, unsigned int *size)
static int	elf32_find_section (char *map, const char *section, unsigned int *offset, unsigned int *size)
static int	elf_find_section (char *map, const char *section, unsigned int *offset, unsigned int *size)
static struct module_node *	alloc_module_node (const char *name, struct module *m, bool is_alias)
static struct module *	alloc_module (const char *name, const char *const *aliases, int naliases, const char *depends, int size)
static int	scan_loaded_modules (void)
static char *	mmap_modinfo (const char *module, const char *name, struct stat *s, unsigned int *offset, unsigned int *size)
static struct module *	get_module_info (const char *module, const char *name)
static int	scan_builtin_modules (void)
static int	scan_module_folder (const char *dir)
static int	scan_module_folders (void)
static int	print_modinfo (const struct module *m)
static int	deps_available (struct module *m, int verbose)
static int	insert_module (char *path, const char *options)
static void	load_moddeps (struct module *_m)
static int	load_modprobe (bool allow_load_retry)
static int	print_insmod_usage (void)
static int	print_modprobe_usage (void)
static int	print_usage (char *arg)
static int	main_insmod (int argc, char **argv)
static int	main_rmmod (int argc, char **argv)
static int	main_lsmod (int argc, char **argv)
static int	main_modinfo (int argc, char **argv)
static int	main_modprobe (int argc, char **argv)
static int	main_loader (int argc, char **argv)
static char	weight (char c)
static int	avl_modcmp (const void *k1, const void *k2, void *ptr)
static void	load_options (void)
int	main (int argc, char **argv)

Variables
static struct avl_tree	modules
static char **	module_folders = NULL

Macro Definition Documentation

_GNU_SOURCE

#define _GNU_SOURCE

Definition at line 15 of file kmodloader.c.

DEF_MOD_PATH

#define DEF_MOD_PATH   "/modules/%s/"

Definition at line 42 of file kmodloader.c.

MOD_BUILTIN

#define MOD_BUILTIN   "modules.builtin"

Definition at line 43 of file kmodloader.c.

MOD_BUILTIN_MODINFO

#define MOD_BUILTIN_MODINFO   "modules.builtin.modinfo"

Definition at line 44 of file kmodloader.c.

MODULE_NAME_LEN

#define MODULE_NAME_LEN   (64 - sizeof(unsigned long))

Definition at line 46 of file kmodloader.c.

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
BUILTIN
SCANNED
PROBE
LOADED
BLACKLISTED

Definition at line 55 of file kmodloader.c.

     {
        BUILTIN,
        SCANNED,
        PROBE,
        LOADED,
        BLACKLISTED,
};

Function Documentation

alloc_module()

static struct module* alloc_module ( const char *  name, const char *const *  aliases, int  naliases, const char *  depends, int  size  )

static

Definition at line 281 of file kmodloader.c.

{
        struct module *m;
        char *_name, *_dep;
        int i;

        m = calloc_a(sizeof(*m),
                &_name, strlen(name) + 1,
                &_dep, depends ? strlen(depends) + 2 : 0);
        if (!m)
                return NULL;

        m->name = strcpy(_name, name);
        m->opts = 0;

        if (depends) {
                m->depends = strcpy(_dep, depends);
                while (*_dep) {
                        if (*_dep == ',')
                                *_dep = '\0';
                        _dep++;
                }
        }
        m->size = size;

        m->refcnt = 0;
        alloc_module_node(m->name, m, false);
        for (i = 0; i < naliases; i++)
                alloc_module_node(aliases[i], m, true);

        return m;
}

Here is the call graph for this function:

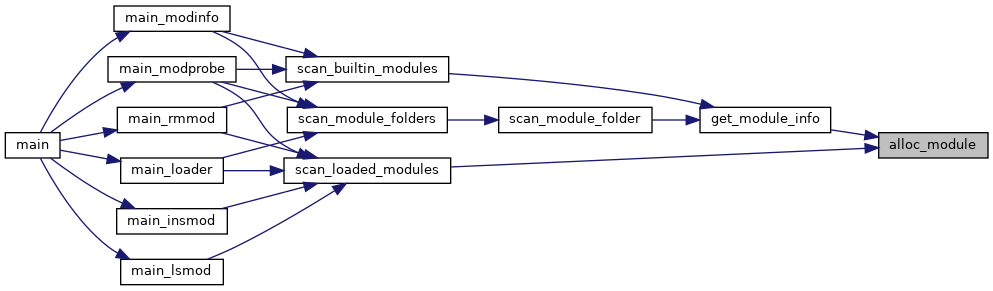

Here is the caller graph for this function:

alloc_module_node()

static struct module_node* alloc_module_node ( const char *  name, struct module *  m, bool  is_alias  )

static

Definition at line 263 of file kmodloader.c.

{
        struct module_node *mn;
        char *_name;

        mn = calloc_a(sizeof(*mn),
                &_name, strlen(name) + 1);
        if (mn) {
                mn->avl.key = strcpy(_name, name);
                mn->m = m;
                mn->is_alias = is_alias;
                avl_insert(&modules, &mn->avl);
                m->refcnt += 1;
        }
        return mn;
}

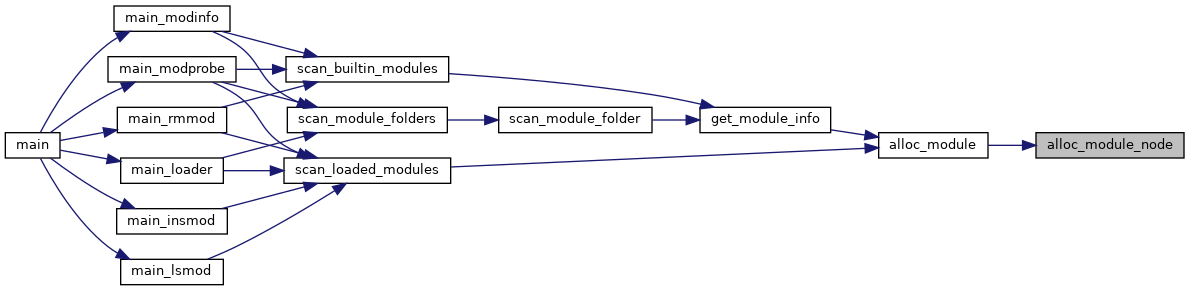

Here is the caller graph for this function:

avl_modcmp()

static int avl_modcmp ( const void *  k1, const void *  k2, void *  ptr  )

static

Definition at line 1254 of file kmodloader.c.

{
        const char *s1 = k1;
        const char *s2 = k2;

        while (*s1 && (weight(*s1) == weight(*s2)))
        {
                s1++;
                s2++;
        }

        return (unsigned char)weight(*s1) - (unsigned char)weight(*s2);
}

Here is the call graph for this function:

Here is the caller graph for this function:

deps_available()

static int deps_available ( struct module *  m, int  verbose  )

static

Definition at line 713 of file kmodloader.c.

{
        char *dep;
        int err = 0;

        if (!m->depends || !strcmp(m->depends, "-") || !strcmp(m->depends, ""))
                return 0;

        dep = m->depends;

        while (*dep) {
                m = find_module(dep);

                if (verbose && !m)
                        ULOG_ERR("missing dependency %s\n", dep);
                if (verbose && m && (m->state != LOADED))
                        ULOG_ERR("dependency not loaded %s\n", dep);
                if (!m || (m->state != LOADED))
                        err++;
                dep += strlen(dep) + 1;
        }

        return err;
}

Here is the call graph for this function:

Here is the caller graph for this function:

elf32_find_section()

static int elf32_find_section ( char *  map, const char *  section, unsigned int *  offset, unsigned int *  size  )

static

Definition at line 213 of file kmodloader.c.

{
        const char *secnames;
        Elf32_Ehdr *e;
        Elf32_Shdr *sh;
        int i;

        e = (Elf32_Ehdr *) map;
        sh = (Elf32_Shdr *) (map + e->e_shoff);

        secnames = map + sh[e->e_shstrndx].sh_offset;
        for (i = 0; i < e->e_shnum; i++) {
                if (!strcmp(section, secnames + sh[i].sh_name)) {
                        *size = sh[i].sh_size;
                        *offset = sh[i].sh_offset;
                        return 0;
                }
        }

        return -1;
}

Here is the caller graph for this function:

elf64_find_section()

static int elf64_find_section ( char *  map, const char *  section, unsigned int *  offset, unsigned int *  size  )

static

Definition at line 191 of file kmodloader.c.

{
        const char *secnames;
        Elf64_Ehdr *e;
        Elf64_Shdr *sh;
        int i;

        e = (Elf64_Ehdr *) map;
        sh = (Elf64_Shdr *) (map + e->e_shoff);

        secnames = map + sh[e->e_shstrndx].sh_offset;
        for (i = 0; i < e->e_shnum; i++) {
                if (!strcmp(section, secnames + sh[i].sh_name)) {
                        *size = sh[i].sh_size;
                        *offset = sh[i].sh_offset;
                        return 0;
                }
        }

        return -1;
}

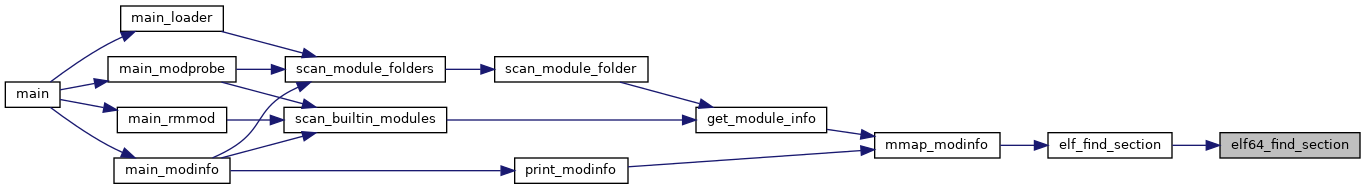

Here is the caller graph for this function:

elf_find_section()

static int elf_find_section ( char *  map, const char *  section, unsigned int *  offset, unsigned int *  size  )

static

Definition at line 235 of file kmodloader.c.

{
        int clazz = map[EI_CLASS];
        int endian = map[EI_DATA];

#if __BYTE_ORDER == __LITTLE_ENDIAN
        if (endian != ELFDATA2LSB)
#elif __BYTE_ORDER == __BIG_ENDIAN
        if (endian != ELFDATA2MSB)
#else
#error "unsupported endian"
#endif
        {
                ULOG_ERR("invalid endianess: %d\n", endian);
                return -1;
        }

        if (clazz == ELFCLASS32)
                return elf32_find_section(map, section, offset, size);
        else if (clazz == ELFCLASS64)
                return elf64_find_section(map, section, offset, size);

        ULOG_ERR("unknown elf format %d\n", clazz);

        return -1;
}

Here is the call graph for this function:

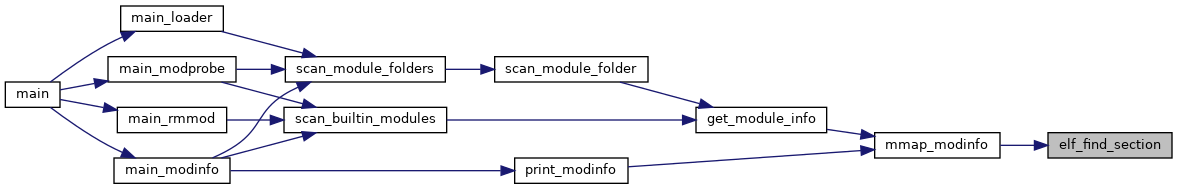

Here is the caller graph for this function:

find_module()

static struct module* find_module ( const char *  name )

static

Definition at line 135 of file kmodloader.c.

{
        struct module_node *mn;
        mn = avl_find_element(&modules, name, mn, avl);
        if (mn)
                return mn->m;
        else
                return NULL;
}

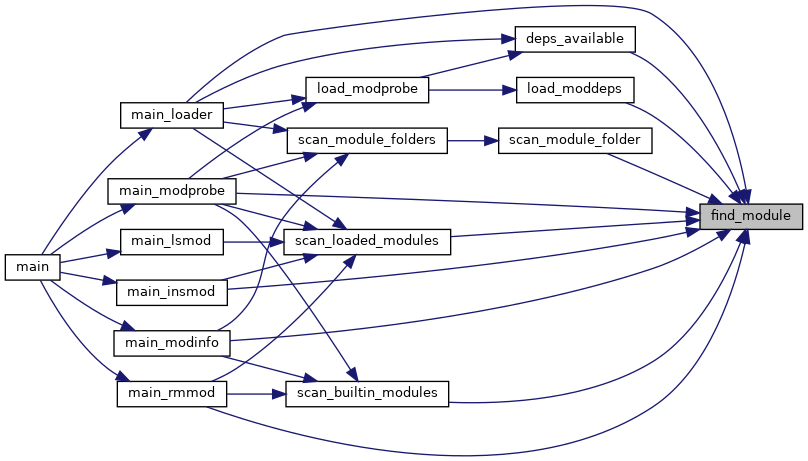

Here is the caller graph for this function:

free_module()

static void free_module ( struct module *  m )

static

Definition at line 314 of file kmodloader.c.

{
        if (m->opts)
                free(m->opts);
        free(m);
}

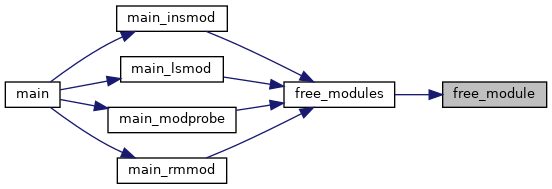

Here is the caller graph for this function:

free_modules()

static void free_modules ( void  )

static

Definition at line 145 of file kmodloader.c.

{
        struct module_node *mn, *tmp;

        avl_remove_all_elements(&modules, mn, avl, tmp) {
                struct module *m = mn->m;

                m->refcnt -= 1;
                if (m->refcnt == 0)
                        free_module(m);
                free(mn);
        }
}

Here is the call graph for this function:

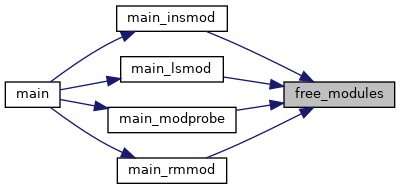

Here is the caller graph for this function:

get_module_info()

static struct module* get_module_info ( const char *  module, const char *  name  )

static

Definition at line 423 of file kmodloader.c.

{
        const bool is_builtin = (module == NULL);
        unsigned int offset, size;
        char *map, *strings, *dep = NULL;
        const char **aliases = NULL;
        const char **aliasesr;
        int naliases = 0;
        struct module *m = NULL;
        struct stat s;

        map = mmap_modinfo(module, name, &s, &offset, &size);
        if (map == MAP_FAILED)
                goto out;

        strings = map + offset;
        while (true) {
                char *end = map + offset + size;
                char *sep;
                int len;

                while ((strings < end) && !strings[0])
                        strings++;
                if (strings >= end)
                        break;
                if (is_builtin) {
                        sep = strstr(strings, ".");
                        if (!sep)
                                break;
                        if (strlen(name) == (sep - strings) &&
                            !strncmp(strings, name, sep - strings))
                                strings = sep + 1;
                        else
                                goto next_string;
                }
                sep = strstr(strings, "=");
                if (!sep)
                        break;
                len = sep - strings;
                sep++;
                if (!strncmp(strings, "depends=", len + 1))
                        dep = sep;
                else if (!strncmp(strings, "alias=", len + 1)) {
                        aliasesr = realloc(aliases, sizeof(sep) * (naliases + 1));
                        if (!aliasesr) {
                                ULOG_ERR("out of memory\n");
                                goto out;
                        }

                        aliases = aliasesr;
                        aliases[naliases++] = sep;
                }
next_string:
                strings = &sep[strlen(sep)];
        }

        m = alloc_module(name, aliases, naliases, dep, is_builtin ? 0 : s.st_size);

        if (m)
                m->state = is_builtin ? BUILTIN : SCANNED;

out:
        if (map != MAP_FAILED)
                munmap(map, s.st_size);

        free(aliases);

        return m;
}

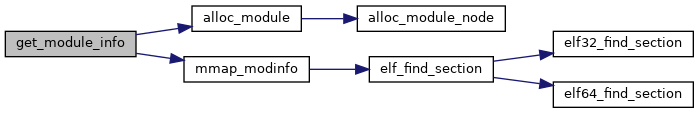

Here is the call graph for this function:

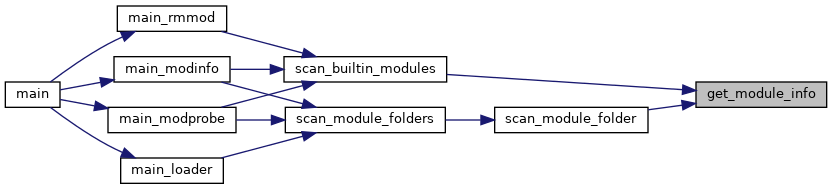

Here is the caller graph for this function:

get_module_name()

static char* get_module_name ( char *  path )

static

Definition at line 177 of file kmodloader.c.

{
        static char name[MODULE_NAME_LEN];
        char *t;

        strncpy(name, basename(path), sizeof(name) - 1);

        t = strstr(name, ".ko");
        if (t)
                *t = '\0';

        return name;
}

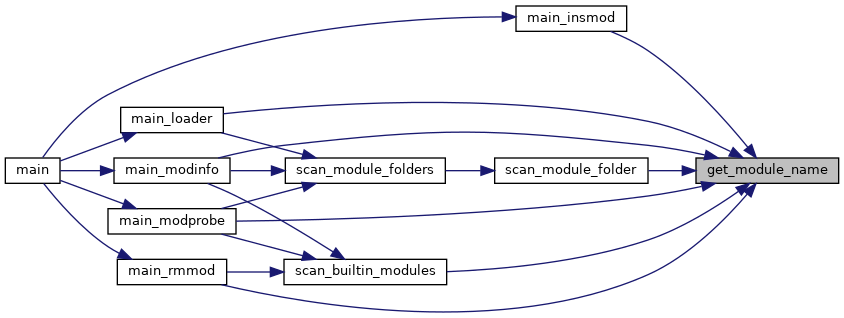

Here is the caller graph for this function:

get_module_path()

static char* get_module_path ( char *  name )

static

Definition at line 159 of file kmodloader.c.

{
        char **p;
        static char path[256];
        struct stat s;

        if (!stat(name, &s) && S_ISREG(s.st_mode))
                return name;

        for (p = module_folders; *p; p++) {
                snprintf(path, sizeof(path), "%s%s.ko", *p, name);
                if (!stat(path, &s) && S_ISREG(s.st_mode))
                        return path;
        }

        return NULL;
}

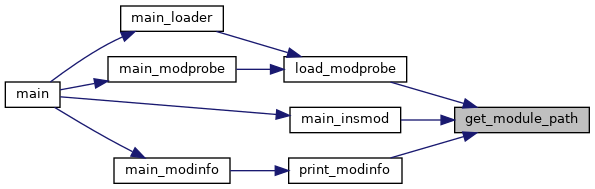

Here is the caller graph for this function:

init_module_folders()

static int init_module_folders ( void  )

static

Definition at line 88 of file kmodloader.c.

{
        int n = 0;
        struct stat st;
        struct utsname ver;
        char *s, *e, *p, path[330], ldpath[256];

        e = ldpath;
        s = getenv("LD_LIBRARY_PATH");

        if (s)
                e += snprintf(ldpath, sizeof(ldpath), "%s:", s);

        e += snprintf(e, sizeof(ldpath) - (e - ldpath), "/lib");

        uname(&ver);

        for (s = p = ldpath; p <= e; p++) {
                if (*p != ':' && *p != '\0')
                        continue;

                *p = 0;
                snprintf(path, sizeof(path), "%s" DEF_MOD_PATH, s, ver.release);

                if (!stat(path, &st) && S_ISDIR(st.st_mode)) {
                        module_folders = realloc(module_folders, sizeof(p) * (n + 2));

                        if (!module_folders) {
                                ULOG_ERR("out of memory\n");
                                return -1;
                        }

                        module_folders[n++] = strdup(path);
                }

                s = p + 1;
        }

        if (!module_folders) {
                ULOG_ERR("no module folders for kernel version %s found\n", ver.release);
                return -1;
        }

        module_folders[n] = NULL;
        return 0;
}

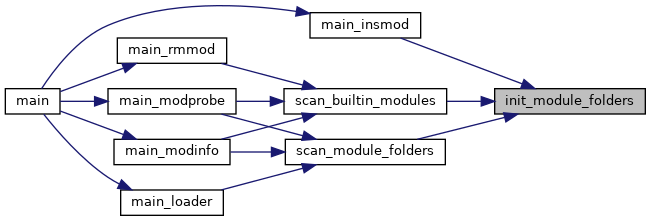

Here is the caller graph for this function:

insert_module()

static int insert_module ( char *  path, const char *  options  )

static

Definition at line 738 of file kmodloader.c.

{
        void *data = 0;
        struct stat s;
        int fd, ret = -1;

        if (!path) {
                ULOG_ERR("Path not specified\n");
                return ret;
        }

        if (stat(path, &s)) {
                ULOG_ERR("missing module %s\n", path);
                return ret;
        }

        fd = open(path, O_RDONLY);
        if (fd < 0) {
                ULOG_ERR("cannot open %s\n", path);
                return ret;
        }

        data = malloc(s.st_size);
        if (!data) {
                ULOG_ERR("out of memory\n");
                goto out;
        }

        if (read(fd, data, s.st_size) == s.st_size) {
                ret = syscall(__NR_init_module, data, (unsigned long) s.st_size, options);
                if (errno == EEXIST)
                        ret = 0;
        }
        else
                ULOG_ERR("failed to read full module %s\n", path);

out:
        close(fd);
        free(data);

        return ret;
}

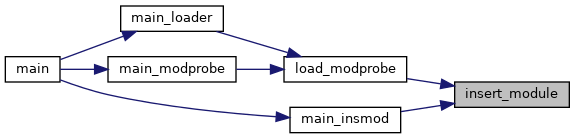

Here is the caller graph for this function:

KVLIST()

static KVLIST ( options  , kvlist_strlen    )

static

load_moddeps()

static void load_moddeps ( struct module *  _m )

static

Definition at line 781 of file kmodloader.c.

{
        char *dep;
        struct module *m;

        if (!strcmp(_m->depends, "-") || !strcmp(_m->depends, ""))
                return;

        dep = _m->depends;

        while (*dep) {
                m = find_module(dep);

                if (!m)
                        ULOG_ERR("failed to find dependency %s\n", dep);
                if (m && (m->state != LOADED)) {
                        m->state = PROBE;
                        load_moddeps(m);
                }

                dep = dep + strlen(dep) + 1;
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

load_modprobe()

static int load_modprobe ( bool  allow_load_retry )

static

Definition at line 805 of file kmodloader.c.

{
        int loaded, skipped, failed;
        struct module_node *mn;
        struct module *m;
        bool load_retry = false;
        static bool first_iteration = true;

        avl_for_each_element(&modules, mn, avl) {
                if (mn->is_alias)
                        continue;
                m = mn->m;
                if (m->state == PROBE)
                        load_moddeps(m);
        }

        do {
                loaded = 0;
                skipped = 0;
                failed = 0;
                avl_for_each_element(&modules, mn, avl) {
                        if (mn->is_alias)
                                continue;
                        m = mn->m;
                        if ((m->state == PROBE) && (!deps_available(m, 0)) && (!m->error || load_retry)) {
                                if (!insert_module(get_module_path(m->name), (m->opts) ? (m->opts) : (""))) {
                                        m->state = LOADED;
                                        m->error = 0;
                                        loaded++;
                                        continue;
                                }

                                m->error = 1;
                        }

                        if (m->error)
                                failed++;
                        else if (m->state == PROBE)
                                skipped++;
                }

                if (allow_load_retry) {
                        /* if we can't load anything else let's try to load failed modules */
                        load_retry = loaded ? (failed && !skipped) : (failed && !load_retry && !first_iteration);
                }

                first_iteration = false;
        } while (loaded || load_retry);

        return skipped + failed;
}

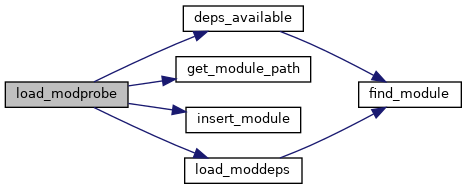

Here is the call graph for this function:

Here is the caller graph for this function:

load_options()

static void load_options ( void  )

static

Definition at line 1269 of file kmodloader.c.

{
        static char buf[512];
        char *s;
        FILE *f;

        f = fopen("/etc/modules.conf", "r");
        if (!f)
                return;

        while ((s = fgets(buf, sizeof(buf), f)) != NULL) {
                char *c, *cmd, *mod;

                while (isspace(*s))
                        s++;

                c = strchr(s, '#');
                if (c)
                        *c = 0;

                while (isspace(*s))
                        s++;

                c = s + strlen(s);
                while (c > s && isspace(c[-1])) {
                        c[-1] = 0;
                        c--;
                }

                cmd = strsep(&s, " \t");
                if (!cmd || !*cmd)
                        continue;

                while (isspace(*s))
                        s++;

                mod = strsep(&s, " \t");
                if (!mod || !*mod)
                        continue;

                if (!strcmp(cmd, "blacklist")) {
                        kvlist_set(&options, mod, "\x01");
                        continue;
                }

                if (!strcmp(cmd, "options")) {
                        char *prev = kvlist_get(&options, mod);
                        char *val = NULL;

                        while (isspace(*s))
                                s++;

                        if (!*s)
                                continue;

                        if (prev && prev[0] == '\x01')
                                continue;

                        if (!prev) {
                                kvlist_set(&options, mod, s);
                                continue;
                        }

                        if (asprintf(&val, "%s %s", prev, s) < 0)
                                continue;

                        kvlist_set(&options, mod, val);
                        free(val);
                        continue;
                }
        }

        fclose(f);
}

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 1344 of file kmodloader.c.

{
        char *exec = basename(*argv);

        avl_init(&modules, avl_modcmp, false, NULL);
        if (!strcmp(exec, "insmod"))
                return main_insmod(argc, argv);

        if (!strcmp(exec, "rmmod"))
                return main_rmmod(argc, argv);

        if (!strcmp(exec, "lsmod"))
                return main_lsmod(argc, argv);

        if (!strcmp(exec, "modinfo"))
                return main_modinfo(argc, argv);

        load_options();

        if (!strcmp(exec, "modprobe"))
                return main_modprobe(argc, argv);

        ulog_open(ULOG_KMSG, LOG_USER, "kmodloader");
        return main_loader(argc, argv);
}

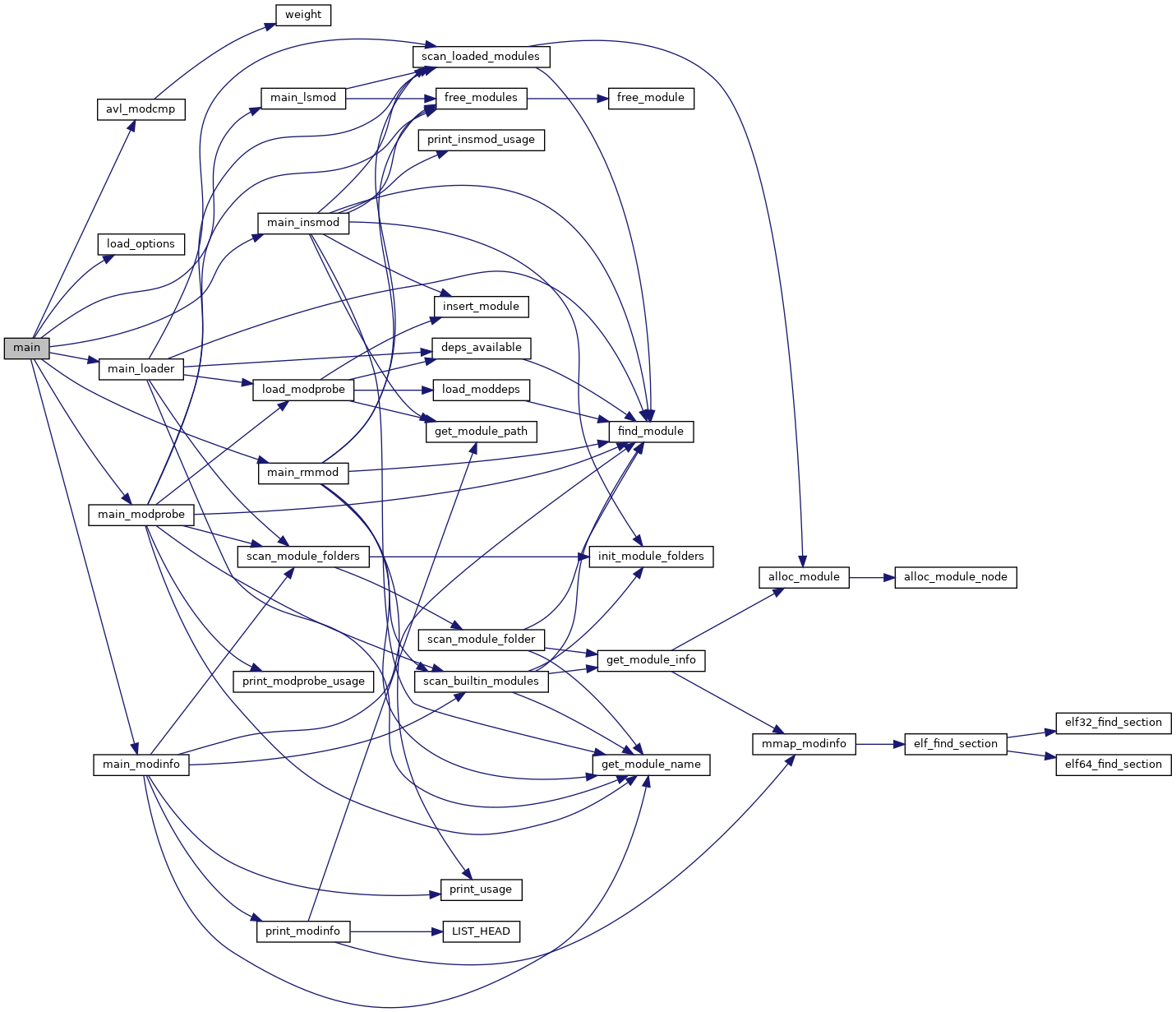

Here is the call graph for this function:

main_insmod()

static int main_insmod ( int  argc, char **  argv  )

static

Definition at line 882 of file kmodloader.c.

{
        char *name, *cur, *options;
        int i, ret, len;

        if (argc < 2)
                return print_insmod_usage();

        name = get_module_name(argv[1]);
        if (!name) {
                ULOG_ERR("cannot find module - %s\n", argv[1]);
                return -1;
        }

        if (scan_loaded_modules())
                return -1;

        if (find_module(name)) {
                ULOG_ERR("module is already loaded - %s\n", name);
                return -1;

        }

        free_modules();

        for (len = 0, i = 2; i < argc; i++)
                len += strlen(argv[i]) + 1;

        options = malloc(len);
        if (!options) {
                ULOG_ERR("out of memory\n");
                ret = -1;
                goto err;
        }

        options[0] = 0;
        cur = options;
        for (i = 2; i < argc; i++) {
                if (options[0]) {
                        *cur = ' ';
                        cur++;
                }
                cur += sprintf(cur, "%s", argv[i]);
        }

        if (init_module_folders()) {
                fprintf(stderr, "Failed to find the folder holding the modules\n");
                ret = -1;
                goto err;
        }

        if (get_module_path(argv[1])) {
                name = argv[1];
        } else if (!get_module_path(name)) {
                fprintf(stderr, "Failed to find %s. Maybe it is a built in module ?\n", name);
                ret = -1;
                goto err;
        }

        ret = insert_module(get_module_path(name), options);
        if (ret)
                ULOG_ERR("failed to insert %s\n", get_module_path(name));

err:
        free(options);
        return ret;
}

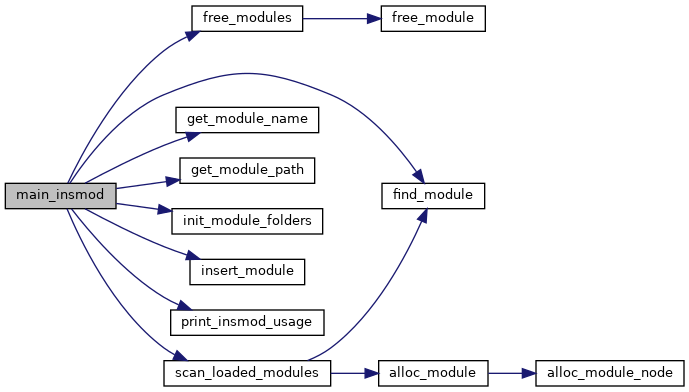

Here is the call graph for this function:

Here is the caller graph for this function:

main_loader()

static int main_loader ( int  argc, char **  argv  )

static

Definition at line 1135 of file kmodloader.c.

{
        int gl_flags = GLOB_NOESCAPE | GLOB_MARK;
        char *dir = "/etc/modules.d/";
        struct module_node *mn;
        struct module *m;
        glob_t gl;
        char *path;
        int ret = 0, fail, j;

        if (argc > 1)
                dir = argv[1];

        path = malloc(strlen(dir) + 2);
        if (!path) {
                ULOG_ERR("out of memory\n");
                return -1;
        }

        strcpy(path, dir);
        strcat(path, "*");

        if (scan_module_folders()) {
                ret = -1;
                goto free_path;
        }

        if (scan_loaded_modules()) {
                ret = -1;
                goto free_path;
        }

        ULOG_INFO("loading kernel modules from %s\n", path);

        if (glob(path, gl_flags, NULL, &gl) < 0)
                goto out;

        for (j = 0; j < gl.gl_pathc; j++) {
                FILE *fp = fopen(gl.gl_pathv[j], "r");
                size_t mod_len = 0;
                char *mod = NULL;

                if (!fp) {
                        ULOG_ERR("failed to open %s\n", gl.gl_pathv[j]);
                        continue;
                }

                while (getline(&mod, &mod_len, fp) > 0) {
                        char *nl = strchr(mod, '\n');
                        struct module *m;
                        char *opts;

                        if (nl)
                                *nl = '\0';

                        opts = strchr(mod, ' ');
                        if (opts)
                                *opts++ = '\0';

                        m = find_module(get_module_name(mod));
                        if (!m || m->state == LOADED || m->state == BLACKLISTED)
                                continue;

                        if (opts) {
                                if (m->opts) {
                                        char *prev = m->opts;

                                        fail = asprintf(&m->opts, "%s %s", prev, opts);
                                        free(prev);
                                        if (fail < 0) {
                                                ULOG_ERR("out of memory for opts %s\n", opts);
                                                free(mod);
                                                fclose(fp);
                                                ret = -1;
                                                goto out;
                                        }
                                } else {
                                        m->opts = strdup(opts);
                                }
                        }
                        m->state = PROBE;
                        if (basename(gl.gl_pathv[j])[0] - '0' <= 9)
                                load_modprobe(false);

                }
                free(mod);
                fclose(fp);
        }

        fail = load_modprobe(true);

        if (fail) {
                ULOG_ERR("%d module%s could not be probed\n",
                         fail, (fail == 1) ? ("") : ("s"));

                avl_for_each_element(&modules, mn, avl) {
                        if (mn->is_alias)
                                continue;
                        m = mn->m;
                        if ((m->state == PROBE) || (m->error))
                                ULOG_ERR("- %s - %d\n", m->name, deps_available(m, 1));
                }
        } else {
                ULOG_INFO("done loading kernel modules from %s\n", path);
        }

out:
        globfree(&gl);
free_path:
        free(path);

        return ret;
}

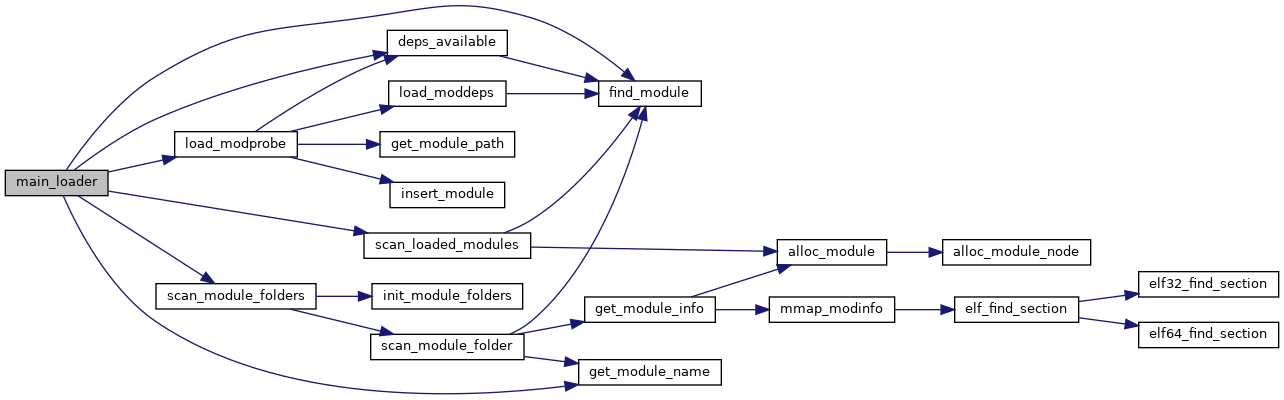

Here is the call graph for this function:

Here is the caller graph for this function:

main_lsmod()

static int main_lsmod ( int  argc, char **  argv  )

static

Definition at line 985 of file kmodloader.c.

{
        struct module_node *mn;
        struct module *m;
        char *dep;

        if (scan_loaded_modules())
                return -1;

        avl_for_each_element(&modules, mn, avl) {
                if (mn->is_alias)
                        continue;
                m = mn->m;
                if (m->state == LOADED) {
                        printf("%-20s%8d%3d ",
                                m->name, m->size, m->usage);
                        if (m->depends && strcmp(m->depends, "-") && strcmp(m->depends, "")) {
                                dep = m->depends;
                                while (*dep) {
                                        printf("%s", dep);
                                        dep = dep + strlen(dep) + 1;
                                        if (*dep)
                                                printf(",");
                                }
                        }
                        printf("\n");
                }
        }

        free_modules();

        return 0;
}

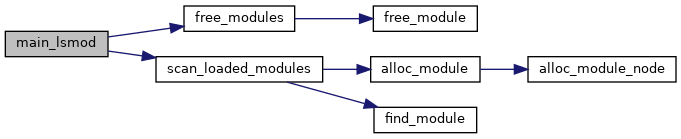

Here is the call graph for this function:

Here is the caller graph for this function:

main_modinfo()

static int main_modinfo ( int  argc, char **  argv  )

static

Definition at line 1019 of file kmodloader.c.

{
        struct module *m;
        char *name;

        if (argc != 2)
                return print_usage("modinfo");

        if (scan_module_folders())
                return -1;

        if (scan_builtin_modules())
                return -1;

        name = get_module_name(argv[1]);
        m = find_module(name);
        if (!m) {
                ULOG_ERR("cannot find module - %s\n", argv[1]);
                return -1;
        }

        print_modinfo(m);

        return 0;
}

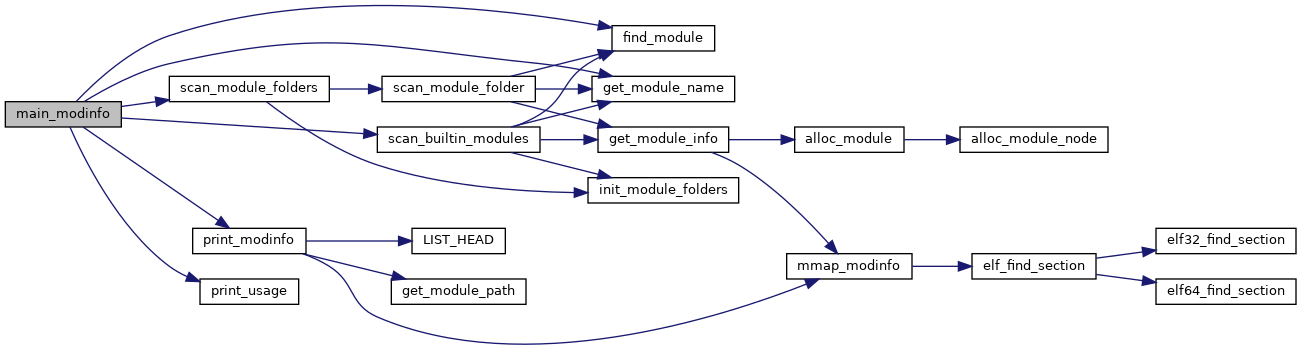

Here is the call graph for this function:

Here is the caller graph for this function:

main_modprobe()

static int main_modprobe ( int  argc, char **  argv  )

static

Definition at line 1045 of file kmodloader.c.

{
        struct module_node *mn;
        struct module *m;
        int exit_code = 0;
        int load_fail;
        int log_level = LOG_WARNING;
        int opt;
        bool quiet = false;
        bool use_all = false;

        while ((opt = getopt(argc, argv, "aqv")) != -1 ) {
                switch (opt) {
                        case 'a':
                                use_all = true;
                                break;
                        case 'q': /* shhhh! */
                                quiet = true;
                                break;
                        case 'v':
                                log_level = LOG_DEBUG;
                                break;
                        default: /* '?' */
                                return print_modprobe_usage();
                                break;
                        }
        }

        if (optind >= argc)
                return print_modprobe_usage(); /* expected module after options */

        /* after print_modprobe_usage() so it won't be filtered out */
        ulog_threshold(log_level);

        if (scan_module_folders())
                return -1;

        if (scan_loaded_modules())
                return -1;

        if (scan_builtin_modules())
                return -1;

        do {
                char *name;

                name = get_module_name(argv[optind]);
                m = find_module(name);

                if (m && m->state == BLACKLISTED) {
                        if (!quiet)
                                ULOG_INFO("%s is blacklisted\n", name);
                } else if (m && m->state == LOADED) {
                        if (!quiet)
                                ULOG_INFO("%s is already loaded\n", name);
                } else if (m && m->state == BUILTIN) {
                        if (!quiet)
                                ULOG_INFO("%s is builtin\n", name);
                } else if (!m) {
                        if (!quiet)
                                ULOG_ERR("failed to find a module named %s\n", name);
                        exit_code = -1;
                } else {
                        m->state = PROBE;
                }

                optind++;
        } while (use_all && optind < argc);

        load_fail = load_modprobe(true);
        if (load_fail) {
                ULOG_ERR("%d module%s could not be probed\n",
                         load_fail, (load_fail == 1) ? ("") : ("s"));

                avl_for_each_element(&modules, mn, avl) {
                        if (mn->is_alias)
                                continue;
                        m = mn->m;
                        if ((m->state == PROBE) || m->error)
                                ULOG_ERR("- %s\n", m->name);
                }

                exit_code = -1;
        }

        free_modules();

        return exit_code;
}

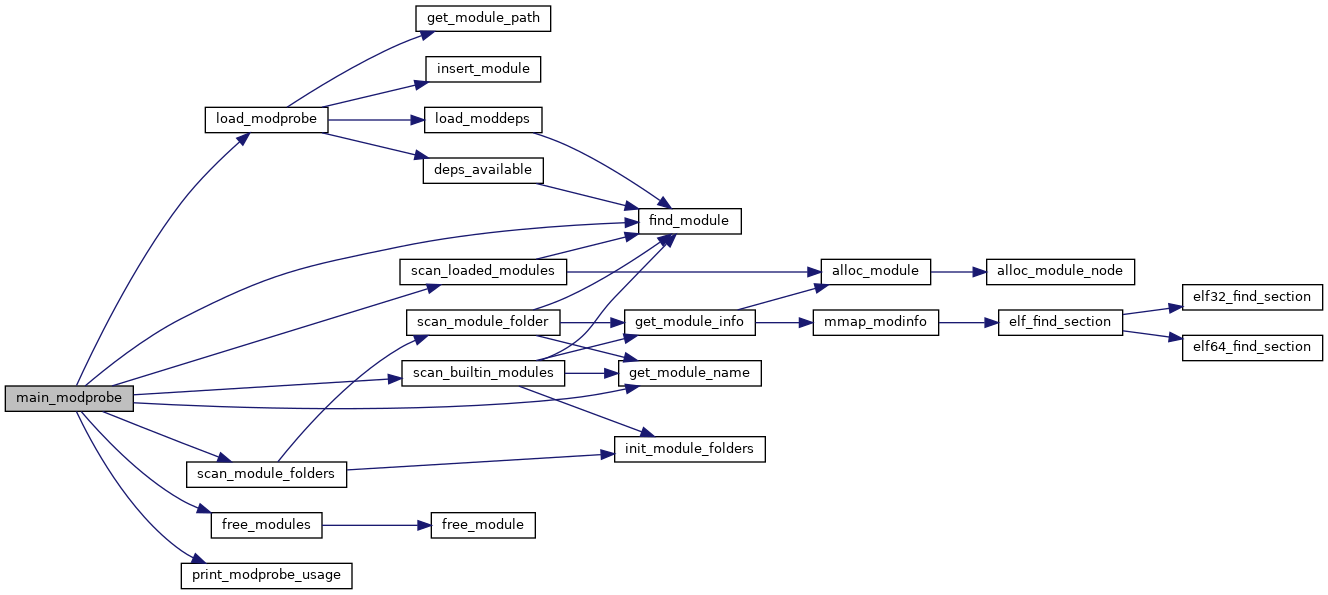

Here is the call graph for this function:

Here is the caller graph for this function:

main_rmmod()

static int main_rmmod ( int  argc, char **  argv  )

static

Definition at line 950 of file kmodloader.c.

{
        struct module *m;
        char *name;
        int ret;

        if (argc != 2)
                return print_usage("rmmod");

        if (scan_loaded_modules())
                return -1;

        if (scan_builtin_modules())
                return -1;

        name = get_module_name(argv[1]);
        m = find_module(name);
        if (!m) {
                ULOG_ERR("module is not loaded\n");
                return -1;
        }
        if (m->state == BUILTIN) {
                ULOG_ERR("module is builtin\n");
                return -1;
        }
        ret = syscall(__NR_delete_module, m->name, 0);

        if (ret)
                ULOG_ERR("unloading the module failed\n");

        free_modules();

        return ret;
}

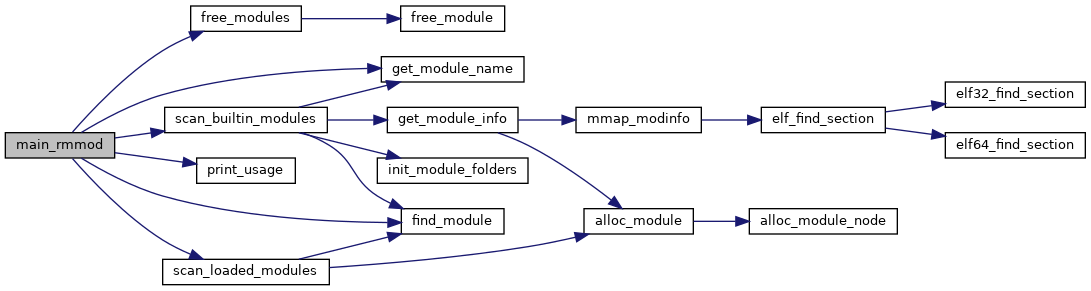

Here is the call graph for this function:

Here is the caller graph for this function:

mmap_modinfo()

static char* mmap_modinfo ( const char *  module, const char *  name, struct stat *  s, unsigned int *  offset, unsigned int *  size  )

static

Definition at line 367 of file kmodloader.c.

{
        const bool is_builtin = (module == NULL);
        const char *mpath = NULL;
        char *map = MAP_FAILED;
        char path[350], **f;
        int fd = -1;

        if (is_builtin)
                for (f = module_folders; *f; f++) {
                        snprintf(path, sizeof(path), "%s%s", *f, MOD_BUILTIN_MODINFO);
                        if (!stat(path, s) && S_ISREG(s->st_mode)) {
                                mpath = path;
                                break;
                        }
                }
        else
                mpath = module;

        if (!mpath) {
                ULOG_ERR("cannot find modinfo path of module - %s\n", name);
                goto out;
        }

        fd = open(mpath, O_RDONLY);
        if (fd < 0) {
                ULOG_ERR("failed to open %s\n", mpath);
                goto out;
        }

        if (fstat(fd, s) == -1) {
                ULOG_ERR("failed to stat %s\n", mpath);
                goto out;
        }

        map = mmap(NULL, s->st_size, PROT_READ, MAP_PRIVATE, fd, 0);
        if (map == MAP_FAILED) {
                ULOG_ERR("failed to mmap %s\n", mpath);
                goto out;
        }

        if (is_builtin) {
                *offset = 0;
                *size = s->st_size;
        } else if (elf_find_section(map, ".modinfo", offset, size)) {
                ULOG_ERR("failed to load the .modinfo section from %s\n", mpath);
                munmap(map, s->st_size);
                map = MAP_FAILED;
        }

out:
        if (fd >= 0)
                close(fd);
        return map;
}

Here is the call graph for this function:

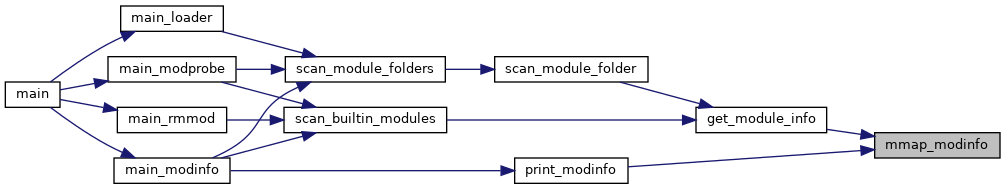

Here is the caller graph for this function:

print_insmod_usage()

static int print_insmod_usage ( void  )

static

Definition at line 857 of file kmodloader.c.

{
        ULOG_INFO("Usage:\n\tinsmod filename [args]\n");

        return -1;
}

Here is the caller graph for this function:

print_modinfo()

static int print_modinfo ( const struct module *  m )

static

Definition at line 607 of file kmodloader.c.

{
        const bool is_builtin = (m->state == BUILTIN);
        unsigned int offset, size;
        struct param *p;
        struct stat s;
        char *map, *strings, *mpath;
        int rv = -1;

        LIST_HEAD(params);

        mpath = get_module_path(m->name);
        map = mmap_modinfo(mpath, m->name, &s, &offset, &size);
        if (map == MAP_FAILED)
                goto out;

        strings = map + offset;
        if (is_builtin)
                printf("name:\t\t%s\n", m->name);
        printf("filename:\t%s\n", is_builtin ? "(builtin)" : mpath);
        while (true) {
                char *end = map + offset + size;
                char *pname, *pdata;
                char *dup = NULL;
                char *sep, *sep2;

                while ((strings < end) && !strings[0])
                        strings++;
                if (strings >= end)
                        break;
                if (is_builtin) {
                        sep = strstr(strings, ".");
                        if (!sep)
                                break;
                        if (strlen(m->name) == (sep - strings) &&
                            !strncmp(strings, m->name, sep - strings))
                                strings = sep + 1;
                        else
                                goto next_string;
                }
                sep = strstr(strings, "=");
                if (!sep)
                        break;
                dup = strndup(strings, sep - strings);
                sep++;
                if (strncmp(strings, "parm", 4)) {
                        if (strlen(dup) < 7)
                                printf("%s:\t\t%s\n",  dup, sep);
                        else
                                printf("%s:\t%s\n",  dup, sep);
                } else {
                        sep2 = strstr(sep, ":");
                        if (!sep2) {
                                free(dup);
                                break;
                        }

                        pname = strndup(sep, sep2 - sep);
                        sep2++;
                        pdata = strdup(sep2);

                        list_for_each_entry(p, &params, list)
                                if (!strcmp(pname, p->name))
                                        break;

                        if (list_entry_is_h(p, &params, list)) {
                                p = alloca(sizeof(*p));
                                p->name = pname;
                                p->desc = p->type = NULL;
                                list_add(&p->list, &params);
                        } else {
                                free(pname);
                        }

                        if (!strcmp(dup, "parmtype"))
                                p->type = pdata;
                        else
                                p->desc = pdata;
                }

                free(dup);
next_string:
                strings = &sep[strlen(sep)];
        }

        list_for_each_entry(p, &params, list) {
                printf("parm:\t\t%s",  p->name);
                if (p->desc)
                        printf(":%s", p->desc);
                if (p->type)
                        printf(" (%s)", p->type);
                printf("\n");
                free(p->name);
                free(p->desc);
                free(p->type);
        }

        rv = 0;

out:
        if (map != MAP_FAILED)
                munmap(map, s.st_size);

        return rv;
}

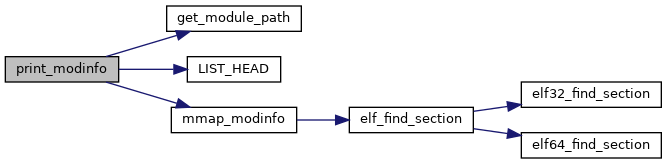

Here is the call graph for this function:

Here is the caller graph for this function:

print_modprobe_usage()

static int print_modprobe_usage ( void  )

static

Definition at line 864 of file kmodloader.c.

{
        ULOG_INFO(
                "Usage:\n"
                "\tmodprobe [-q] [-v] filename\n"
                "\tmodprobe -a [-q] [-v] filename [filename...]\n"
        );

        return -1;
}

Here is the caller graph for this function:

print_usage()

static int print_usage ( char *  arg )

static

Definition at line 875 of file kmodloader.c.

{
        ULOG_INFO("Usage:\n\t%s module\n", arg);

        return -1;
}

Here is the caller graph for this function:

scan_builtin_modules()

static int scan_builtin_modules ( void  )

static

Definition at line 493 of file kmodloader.c.

{
        char **p, path[350];
        size_t buf_len = 0;
        char *buf = NULL;
        struct stat st;
        FILE *fp = NULL;
        int rv = -1;

        if (!module_folders && init_module_folders())
                return -1;
        for (p = module_folders; *p; p++) {
                snprintf(path, sizeof(path), "%s%s", *p, MOD_BUILTIN);
                fp = fopen(path, "r");
                if (!fp)
                        continue;

                if (!fstat(fileno(fp), &st) && S_ISREG(st.st_mode))
                        break;

                /* Not regular file, close it and check next */
                fclose(fp);
                fp = NULL;
        }
        if (!fp)
                return 0;       /* OK if modules.builtin unavailable */

        while (getline(&buf, &buf_len, fp) > 0) {
                struct module *m;
                char *name;

                name = get_module_name(buf);
                if (!name)
                        continue;
                m = find_module(name);
                if (m && !strcmp(m->name, name)) {
                        ULOG_WARN("found duplicate builtin module %s\n", name);
                        continue;
                }
                m = get_module_info(NULL, name);
                if (!m) {
                        ULOG_ERR("failed to find info for builtin module %s\n", name);
                        goto err;
                }
        }

        rv = 0;
err:
        free(buf);
        fclose(fp);

        return rv;
}

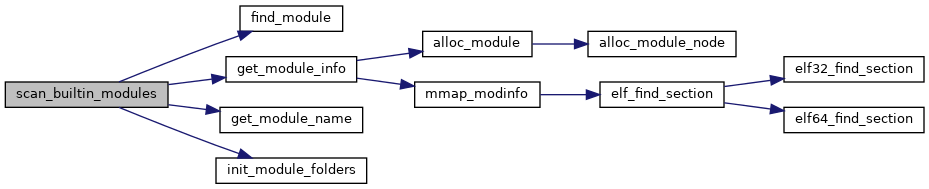

Here is the call graph for this function:

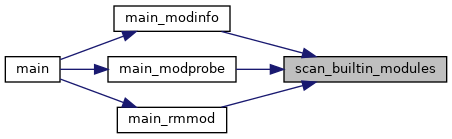

Here is the caller graph for this function:

scan_loaded_modules()

static int scan_loaded_modules ( void  )

static

Definition at line 321 of file kmodloader.c.

{
        size_t buf_len = 0;
        char *buf = NULL;
        int rv = -1;
        FILE *fp;

        fp = fopen("/proc/modules", "r");
        if (!fp) {
                ULOG_ERR("failed to open /proc/modules\n");
                return -1;
        }

        while (getline(&buf, &buf_len, fp) > 0) {
                struct module m;
                struct module *n;

                m.name = strtok(buf, " ");
                m.size = atoi(strtok(NULL, " "));
                m.usage = atoi(strtok(NULL, " "));
                m.depends = strtok(NULL, " ");

                if (!m.name || !m.depends)
                        continue;

                n = find_module(m.name);
                if (!n) {
                        /* possibly a module outside /lib/modules/<ver>/ */
                        n = alloc_module(m.name, NULL, 0, m.depends, m.size);
                }
                if (!n) {
                        ULOG_ERR("Failed to allocate memory for module\n");
                        goto out;
                }

                n->usage = m.usage;
                n->state = LOADED;
        }
        rv = 0;
out:
        free(buf);
        fclose(fp);

        return rv;
}

Here is the call graph for this function:

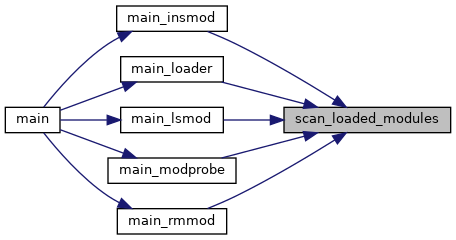

Here is the caller graph for this function:

scan_module_folder()

static int scan_module_folder ( const char *  dir )

static

Definition at line 547 of file kmodloader.c.

{
        int gl_flags = GLOB_NOESCAPE | GLOB_MARK;
        char *path;
        glob_t gl;
        int j, rv = 0;

        path = alloca(strlen(dir) + sizeof("*.ko") + 1);
        sprintf(path, "%s*.ko", dir);

        if (glob(path, gl_flags, NULL, &gl) < 0)
                return -1;

        for (j = 0; j < gl.gl_pathc; j++) {
                char *name = get_module_name(gl.gl_pathv[j]);
                struct module *m;
                char *opts;

                if (!name)
                        continue;

                m = find_module(name);
                if (m)
                        continue;

                m = get_module_info(gl.gl_pathv[j], name);
                if (!m) {
                        rv |= -1;
                        continue;
                }

                opts = kvlist_get(&options, name);
                if (!opts)
                        continue;

                if (*opts == '\x01')
                        m->state = BLACKLISTED;
                else
                        m->opts = strdup(opts);
        }

        globfree(&gl);

        return rv;
}

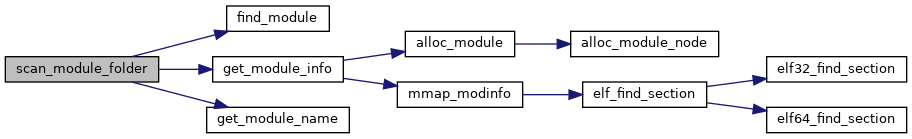

Here is the call graph for this function:

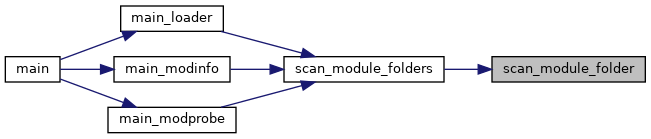

Here is the caller graph for this function:

scan_module_folders()

static int scan_module_folders ( void  )

static

Definition at line 593 of file kmodloader.c.

{
        int rv = 0;
        char **p;

        if (init_module_folders())
                return -1;

        for (p = module_folders; *p; p++)
                rv |= scan_module_folder(*p);

        return rv;
}

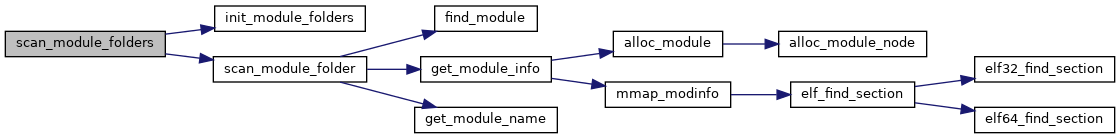

Here is the call graph for this function:

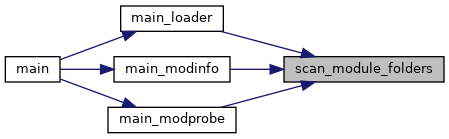

Here is the caller graph for this function:

weight()

static char weight ( char  c )

inlinestatic

Definition at line 1249 of file kmodloader.c.

{
        return c == '_' ? '-' : c;
}

Here is the caller graph for this function:

Variable Documentation

module_folders

char** module_folders = NULL

static

Definition at line 84 of file kmodloader.c.

modules

struct avl_tree modules

static

Definition at line 1 of file kmodloader.c.
