libubus-io.c File Reference

#include <sys/types.h>
#include <sys/uio.h>
#include <sys/socket.h>
#include <unistd.h>
#include <fcntl.h>
#include <poll.h>
#include <libubox/usock.h>
#include <libubox/blob.h>
#include <libubox/blobmsg.h>
#include "libubus.h"
#include "libubus-internal.h"

Go to the source code of this file.

Macros
#define	_GNU_SOURCE
#define	STATIC_IOV(_var)   { .iov_base = (char *) &(_var), .iov_len = sizeof(_var) }
#define	UBUS_MSGBUF_REDUCTION_INTERVAL   16

Functions
__hidden struct blob_attr **	ubus_parse_msg (struct blob_attr *msg, size_t len)
static void	wait_data (int fd, bool write)
static int	writev_retry (int fd, struct iovec *iov, int iov_len, int sock_fd)
int __hidden	ubus_send_msg (struct ubus_context *ctx, uint32_t seq, struct blob_attr *msg, int cmd, uint32_t peer, int fd)
static int	recv_retry (struct ubus_context *ctx, struct iovec *iov, bool wait, int *recv_fd)
bool	ubus_validate_hdr (struct ubus_msghdr *hdr)
static bool	alloc_msg_buf (struct ubus_context *ctx, int len)
static bool	get_next_msg (struct ubus_context *ctx, int *recv_fd)
void __hidden	ubus_handle_data (struct uloop_fd *u, unsigned int events)
void __hidden	ubus_poll_data (struct ubus_context *ctx, int timeout)
static void	ubus_auto_sub_lookup (struct ubus_context *ctx, struct ubus_object_data *obj, void *priv)
static void	ubus_refresh_auto_subscribe (struct ubus_context *ctx)
static void	ubus_refresh_state (struct ubus_context *ctx)
int	ubus_reconnect (struct ubus_context *ctx, const char *path)

Variables
static const struct blob_attr_info	ubus_policy [UBUS_ATTR_MAX]
static struct blob_attr *	attrbuf [UBUS_ATTR_MAX]

Macro Definition Documentation

_GNU_SOURCE

#define _GNU_SOURCE

Definition at line 14 of file libubus-io.c.

STATIC_IOV

#define STATIC_IOV

(

_var

)

{ .iov_base = (char *) &(_var), .iov_len = sizeof(_var) }

Definition at line 30 of file libubus-io.c.

UBUS_MSGBUF_REDUCTION_INTERVAL

#define UBUS_MSGBUF_REDUCTION_INTERVAL   16

Definition at line 32 of file libubus-io.c.

Function Documentation

alloc_msg_buf()

static bool alloc_msg_buf ( struct ubus_context *  ctx, int  len  )

static

Definition at line 240 of file libubus-io.c.

{
        void *ptr;
        int buf_len = ctx->msgbuf_data_len;
        int rem;

        if (!ctx->msgbuf.data)
                buf_len = 0;

        rem = (len % UBUS_MSG_CHUNK_SIZE);
        if (rem > 0)
                len += UBUS_MSG_CHUNK_SIZE - rem;

        if (len < buf_len &&
            ++ctx->msgbuf_reduction_counter > UBUS_MSGBUF_REDUCTION_INTERVAL) {
                ctx->msgbuf_reduction_counter = 0;
                buf_len = 0;
        }

        if (len <= buf_len)
                return true;

        ptr = realloc(ctx->msgbuf.data, len);
        if (!ptr)
                return false;

        ctx->msgbuf.data = ptr;
        ctx->msgbuf_data_len = len;
        return true;
}

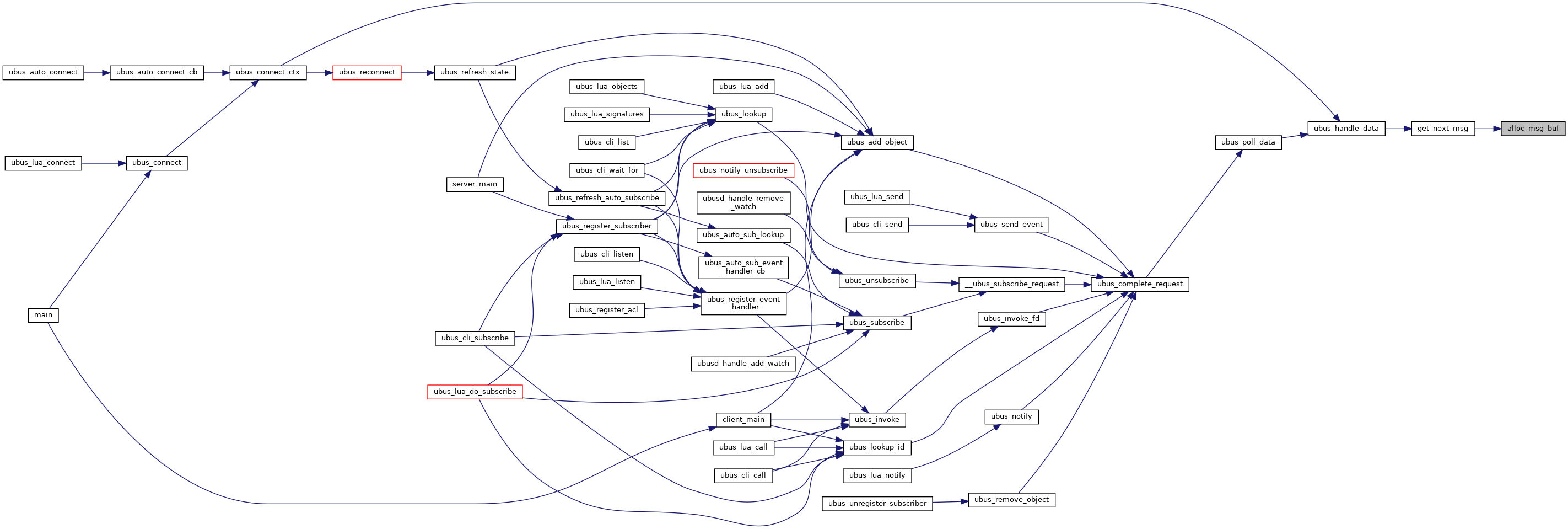

Here is the caller graph for this function:

get_next_msg()

static bool get_next_msg ( struct ubus_context *  ctx, int *  recv_fd  )

static

Definition at line 271 of file libubus-io.c.

{
        struct {
                struct ubus_msghdr hdr;
                struct blob_attr data;
        } hdrbuf;
        struct iovec iov = STATIC_IOV(hdrbuf);
        int len;
        int r;

        /* receive header + start attribute */
        r = recv_retry(ctx, &iov, false, recv_fd);
        if (r <= 0) {
                if (r < 0)
                        ctx->sock.eof = true;

                return false;
        }

        hdrbuf.hdr.seq = be16_to_cpu(hdrbuf.hdr.seq);
        hdrbuf.hdr.peer = be32_to_cpu(hdrbuf.hdr.peer);

        if (!ubus_validate_hdr(&hdrbuf.hdr))
                return false;

        len = blob_raw_len(&hdrbuf.data);
        if (!alloc_msg_buf(ctx, len))
                return false;

        memcpy(&ctx->msgbuf.hdr, &hdrbuf.hdr, sizeof(hdrbuf.hdr));
        memcpy(ctx->msgbuf.data, &hdrbuf.data, sizeof(hdrbuf.data));

        iov.iov_base = (char *)ctx->msgbuf.data + sizeof(hdrbuf.data);
        iov.iov_len = blob_len(ctx->msgbuf.data);
        if (iov.iov_len > 0 &&
            recv_retry(ctx, &iov, true, NULL) <= 0)
                return false;

        return true;
}

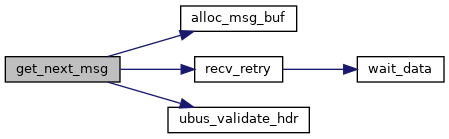

Here is the call graph for this function:

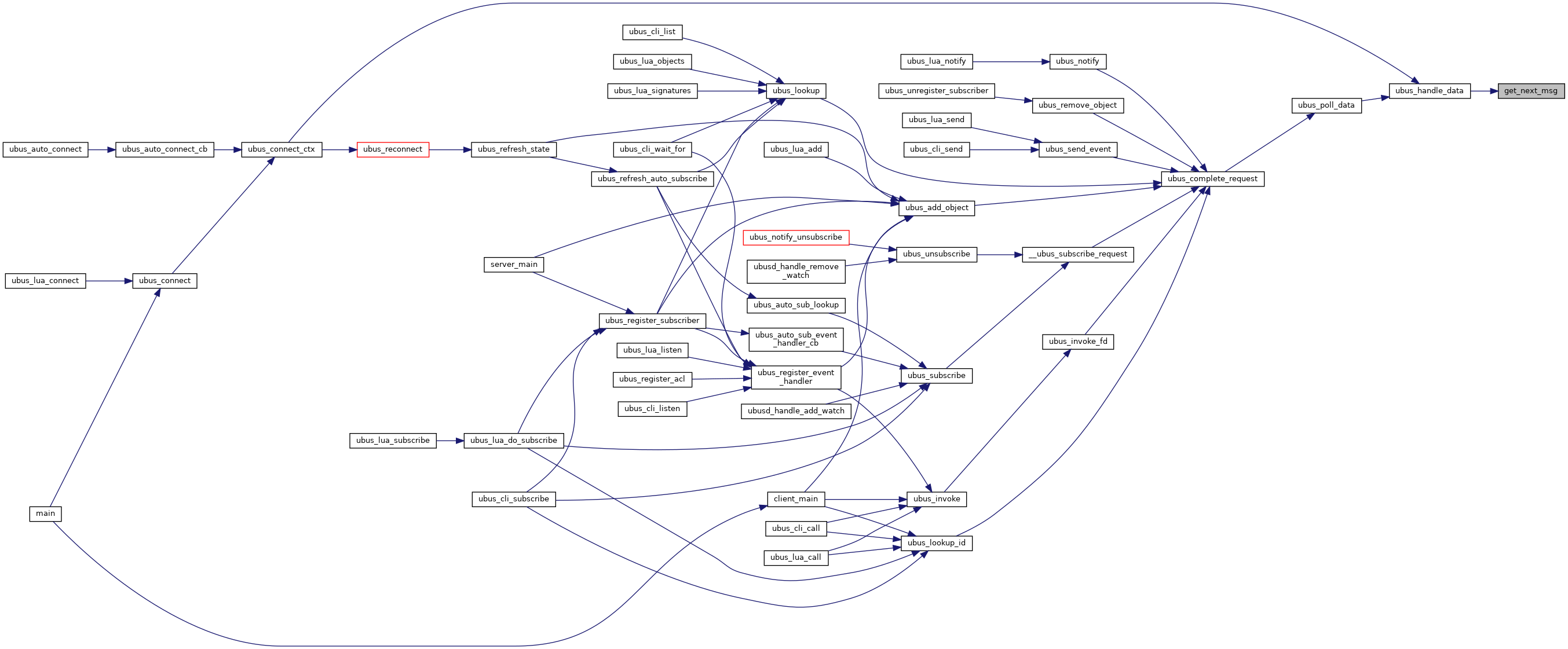

Here is the caller graph for this function:

recv_retry()

static int recv_retry ( struct ubus_context *  ctx, struct iovec *  iov, bool  wait, int *  recv_fd  )

static

Definition at line 158 of file libubus-io.c.

{
        uint8_t fd_buf[CMSG_SPACE(sizeof(int))] = { 0 };
        struct msghdr msghdr = { 0 };
        struct cmsghdr *cmsg;
        int total = 0;
        int bytes;
        int *pfd;
        int fd;

        fd = ctx->sock.fd;

        msghdr.msg_iov = iov,
        msghdr.msg_iovlen = 1,
        msghdr.msg_control = fd_buf;
        msghdr.msg_controllen = sizeof(fd_buf);

        cmsg = CMSG_FIRSTHDR(&msghdr);
        cmsg->cmsg_type = SCM_RIGHTS;
        cmsg->cmsg_level = SOL_SOCKET;
        cmsg->cmsg_len = CMSG_LEN(sizeof(int));

        pfd = (int *) CMSG_DATA(cmsg);

        while (iov->iov_len > 0) {
                if (recv_fd) {
                        msghdr.msg_control = fd_buf;
                        msghdr.msg_controllen = cmsg->cmsg_len;
                } else {
                        msghdr.msg_control = NULL;
                        msghdr.msg_controllen = 0;
                }

                *pfd = -1;
                bytes = recvmsg(fd, &msghdr, 0);
                if (!bytes)
                        return -1;

                if (bytes < 0) {
                        bytes = 0;
                        if (errno == EINTR)
                                continue;

                        if (errno != EAGAIN)
                                return -1;
                }
                if (!wait && !bytes)
                        return 0;

                if (recv_fd)
                        *recv_fd = *pfd;

                recv_fd = NULL;

                wait = true;
                iov->iov_len -= bytes;
                iov->iov_base += bytes;
                total += bytes;

                if (iov->iov_len > 0)
                        wait_data(fd, false);
        }

        return total;
}

Here is the call graph for this function:

Here is the caller graph for this function:

ubus_auto_sub_lookup()

static void ubus_auto_sub_lookup ( struct ubus_context *  ctx, struct ubus_object_data *  obj, void *  priv  )

static

Definition at line 348 of file libubus-io.c.

{
        struct ubus_subscriber *s;

        list_for_each_entry(s, &ctx->auto_subscribers, list)
                if (s->new_obj_cb(ctx, s, obj->path))
                        ubus_subscribe(ctx, s, obj->id);
}

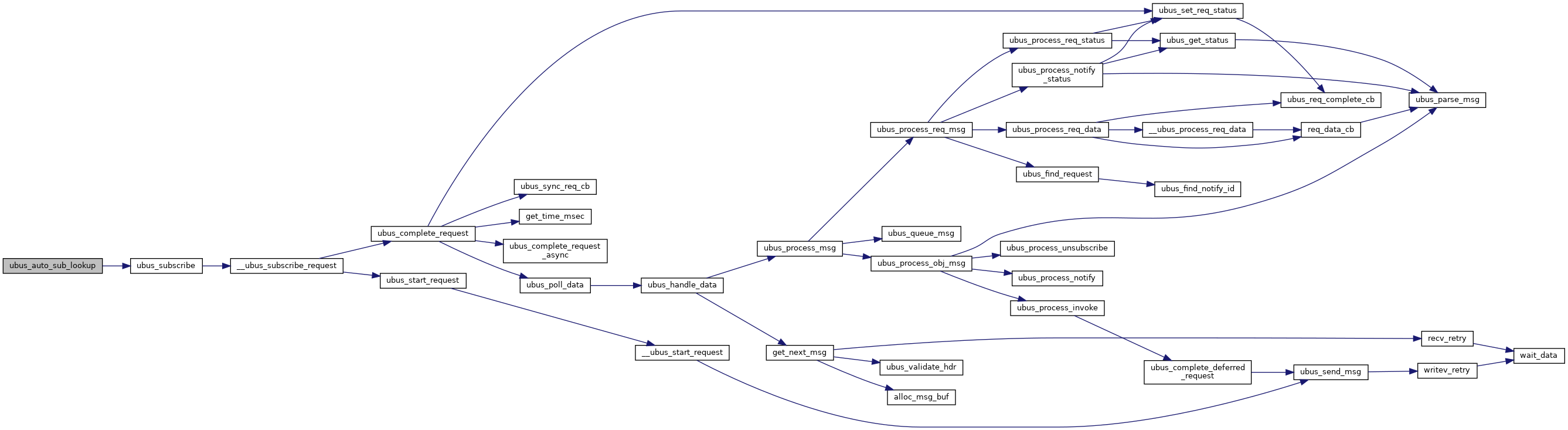

Here is the call graph for this function:

Here is the caller graph for this function:

ubus_handle_data()

void __hidden ubus_handle_data	(	struct uloop_fd *	u,
		unsigned int	events
	)

Definition at line 312 of file libubus-io.c.

{
        struct ubus_context *ctx = container_of(u, struct ubus_context, sock);
        int recv_fd = -1;

        while (1) {
                if (!ctx->stack_depth)
                        ctx->pending_timer.cb(&ctx->pending_timer);

                if (!get_next_msg(ctx, &recv_fd))
                        break;
                ubus_process_msg(ctx, &ctx->msgbuf, recv_fd);
                if (uloop_cancelling() || ctx->cancel_poll)
                        break;
        }

        if (!ctx->stack_depth)
                ctx->pending_timer.cb(&ctx->pending_timer);

        if (u->eof)
                ctx->connection_lost(ctx);
}

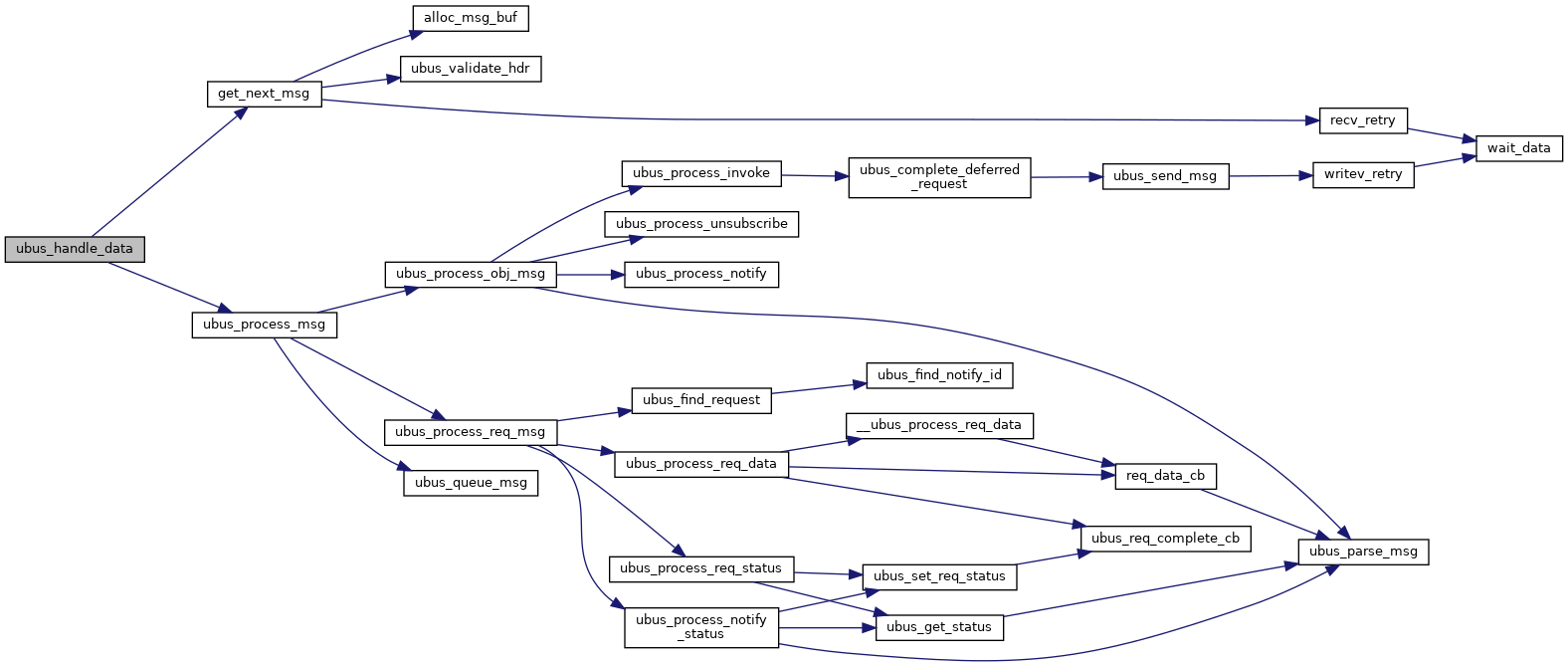

Here is the call graph for this function:

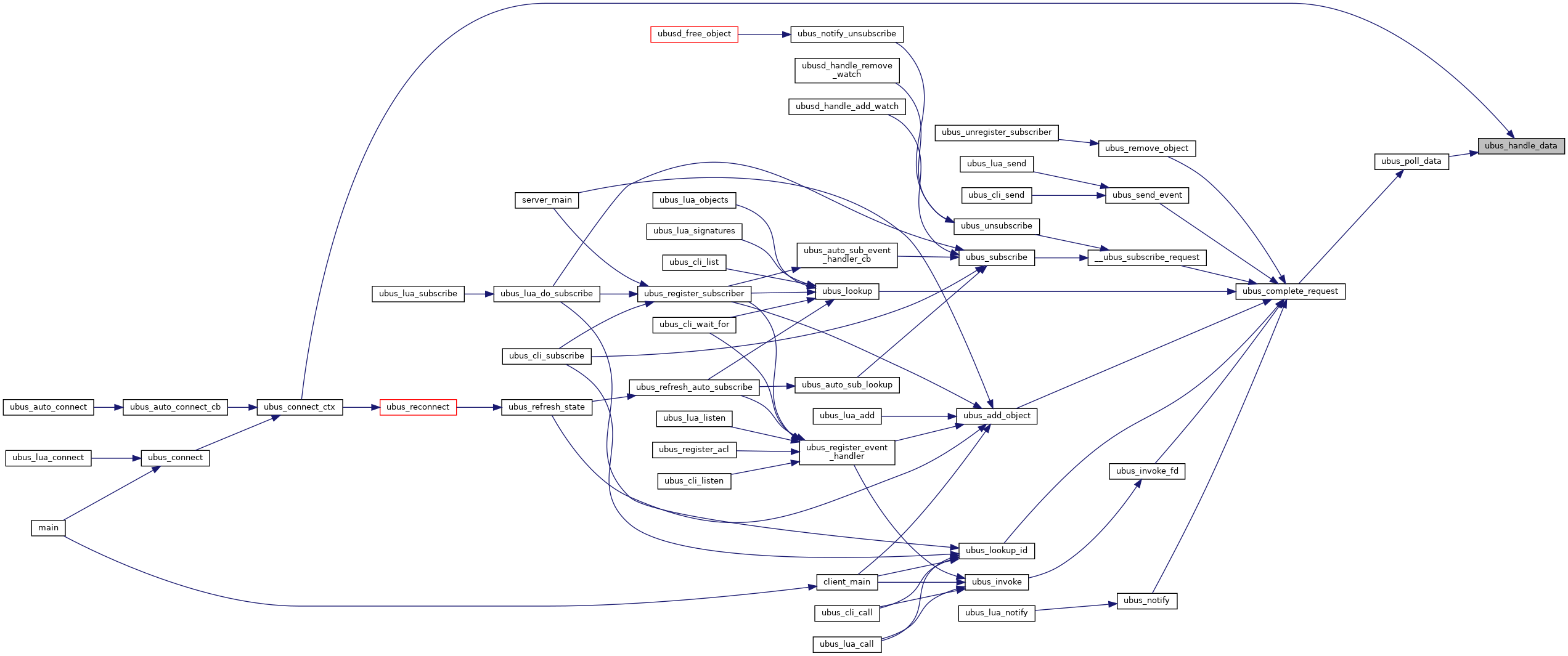

Here is the caller graph for this function:

ubus_parse_msg()

__hidden struct blob_attr** ubus_parse_msg	(	struct blob_attr *	msg,
		size_t	len
	)

Definition at line 46 of file libubus-io.c.

{
        blob_parse_untrusted(msg, len, attrbuf, ubus_policy, UBUS_ATTR_MAX);
        return attrbuf;
}

ubus_poll_data()

void __hidden ubus_poll_data	(	struct ubus_context *	ctx,
		int	timeout
	)

Definition at line 335 of file libubus-io.c.

{
        struct pollfd pfd = {
                .fd = ctx->sock.fd,
                .events = POLLIN | POLLERR,
        };

        ctx->cancel_poll = false;
        poll(&pfd, 1, timeout ? timeout : -1);
        ubus_handle_data(&ctx->sock, ULOOP_READ);
}

Here is the call graph for this function:

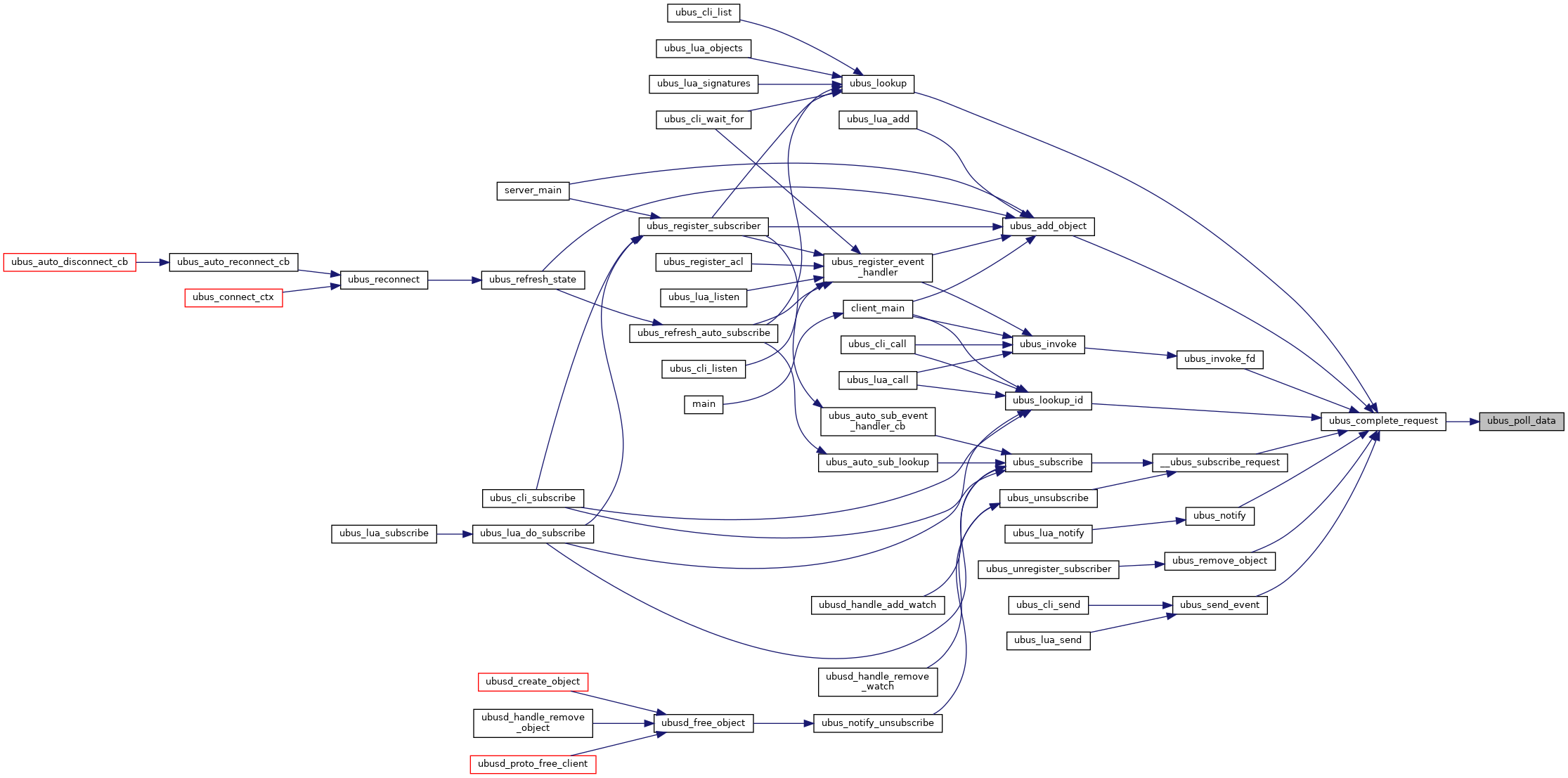

Here is the caller graph for this function:

ubus_reconnect()

int ubus_reconnect	(	struct ubus_context *	ctx,
		const char *	path
	)

Definition at line 395 of file libubus-io.c.

{
        struct {
                struct ubus_msghdr hdr;
                struct blob_attr data;
        } hdr;
        struct blob_attr *buf;
        int ret = UBUS_STATUS_UNKNOWN_ERROR;

        if (!path)
                path = UBUS_UNIX_SOCKET;

        if (ctx->sock.fd >= 0) {
                if (ctx->sock.registered)
                        uloop_fd_delete(&ctx->sock);

                close(ctx->sock.fd);
        }

        ctx->sock.eof = false;
        ctx->sock.error = false;
        ctx->sock.fd = usock(USOCK_UNIX, path, NULL);
        if (ctx->sock.fd < 0)
                return UBUS_STATUS_CONNECTION_FAILED;

        if (read(ctx->sock.fd, &hdr, sizeof(hdr)) != sizeof(hdr))
                goto out_close;

        if (!ubus_validate_hdr(&hdr.hdr))
                goto out_close;

        if (hdr.hdr.type != UBUS_MSG_HELLO)
                goto out_close;

        buf = calloc(1, blob_raw_len(&hdr.data));
        if (!buf)
                goto out_close;

        memcpy(buf, &hdr.data, sizeof(hdr.data));
        if (read(ctx->sock.fd, blob_data(buf), blob_len(buf)) != (ssize_t) blob_len(buf))
                goto out_free;

        ctx->local_id = hdr.hdr.peer;
        if (!ctx->local_id)
                goto out_free;

        ret = UBUS_STATUS_OK;
        fcntl(ctx->sock.fd, F_SETFL, fcntl(ctx->sock.fd, F_GETFL) | O_NONBLOCK | O_CLOEXEC);

        ubus_refresh_state(ctx);

out_free:
        free(buf);
out_close:
        if (ret)
                close(ctx->sock.fd);

        return ret;
}

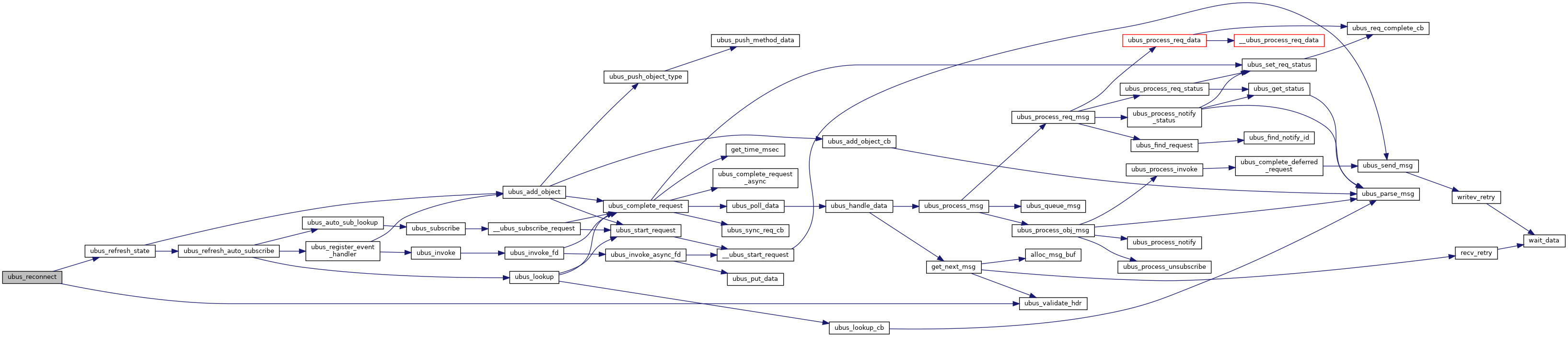

Here is the call graph for this function:

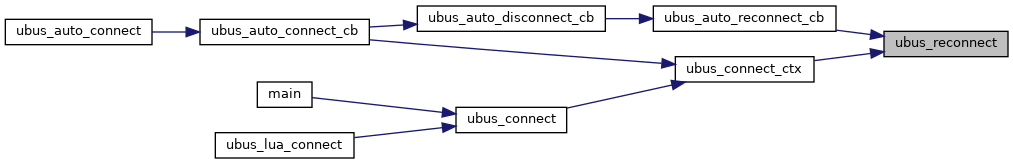

Here is the caller graph for this function:

ubus_refresh_auto_subscribe()

static void ubus_refresh_auto_subscribe ( struct ubus_context *  ctx )

static

Definition at line 359 of file libubus-io.c.

{
        struct ubus_event_handler *ev = &ctx->auto_subscribe_event_handler;

        if (list_empty(&ctx->auto_subscribers))
                return;

        ubus_register_event_handler(ctx, ev, "ubus.object.add");
        ubus_lookup(ctx, NULL, ubus_auto_sub_lookup, NULL);
}

Here is the call graph for this function:

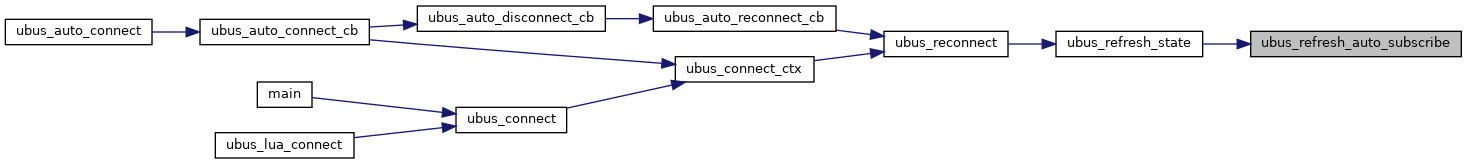

Here is the caller graph for this function:

ubus_refresh_state()

static void ubus_refresh_state ( struct ubus_context *  ctx )

static

Definition at line 371 of file libubus-io.c.

{
        struct ubus_object *obj, *tmp;
        struct ubus_object **objs;
        int n, i = 0;

        /* clear all type IDs, they need to be registered again */
        avl_for_each_element(&ctx->objects, obj, avl)
                if (obj->type)
                        obj->type->id = 0;

        /* push out all objects again */
        objs = alloca(ctx->objects.count * sizeof(*objs));
        avl_remove_all_elements(&ctx->objects, obj, avl, tmp) {
                objs[i++] = obj;
                obj->id = 0;
        }

        for (n = i, i = 0; i < n; i++)
                ubus_add_object(ctx, objs[i]);

        ubus_refresh_auto_subscribe(ctx);
}

Here is the call graph for this function:

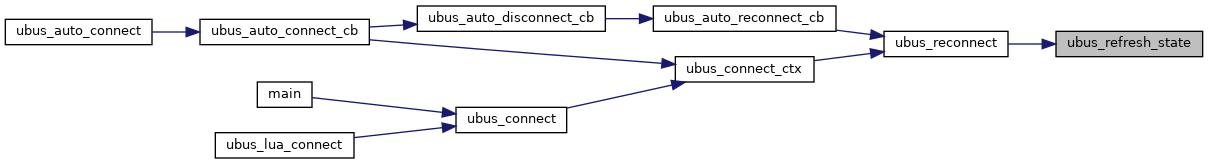

Here is the caller graph for this function:

ubus_send_msg()

int __hidden ubus_send_msg	(	struct ubus_context *	ctx,
		uint32_t	seq,
		struct blob_attr *	msg,
		int	cmd,
		uint32_t	peer,
		int	fd
	)

Definition at line 126 of file libubus-io.c.

{
        struct ubus_msghdr hdr;
        struct iovec iov[2] = {
                STATIC_IOV(hdr)
        };
        int ret;

        hdr.version = 0;
        hdr.type = cmd;
        hdr.seq = cpu_to_be16(seq);
        hdr.peer = cpu_to_be32(peer);

        if (!msg) {
                blob_buf_init(&b, 0);
                msg = b.head;
        }

        iov[1].iov_base = (char *) msg;
        iov[1].iov_len = blob_raw_len(msg);

        ret = writev_retry(ctx->sock.fd, iov, ARRAY_SIZE(iov), fd);
        if (ret < 0)
                ctx->sock.eof = true;

        if (fd >= 0)
                close(fd);

        return ret;
}

Here is the call graph for this function:

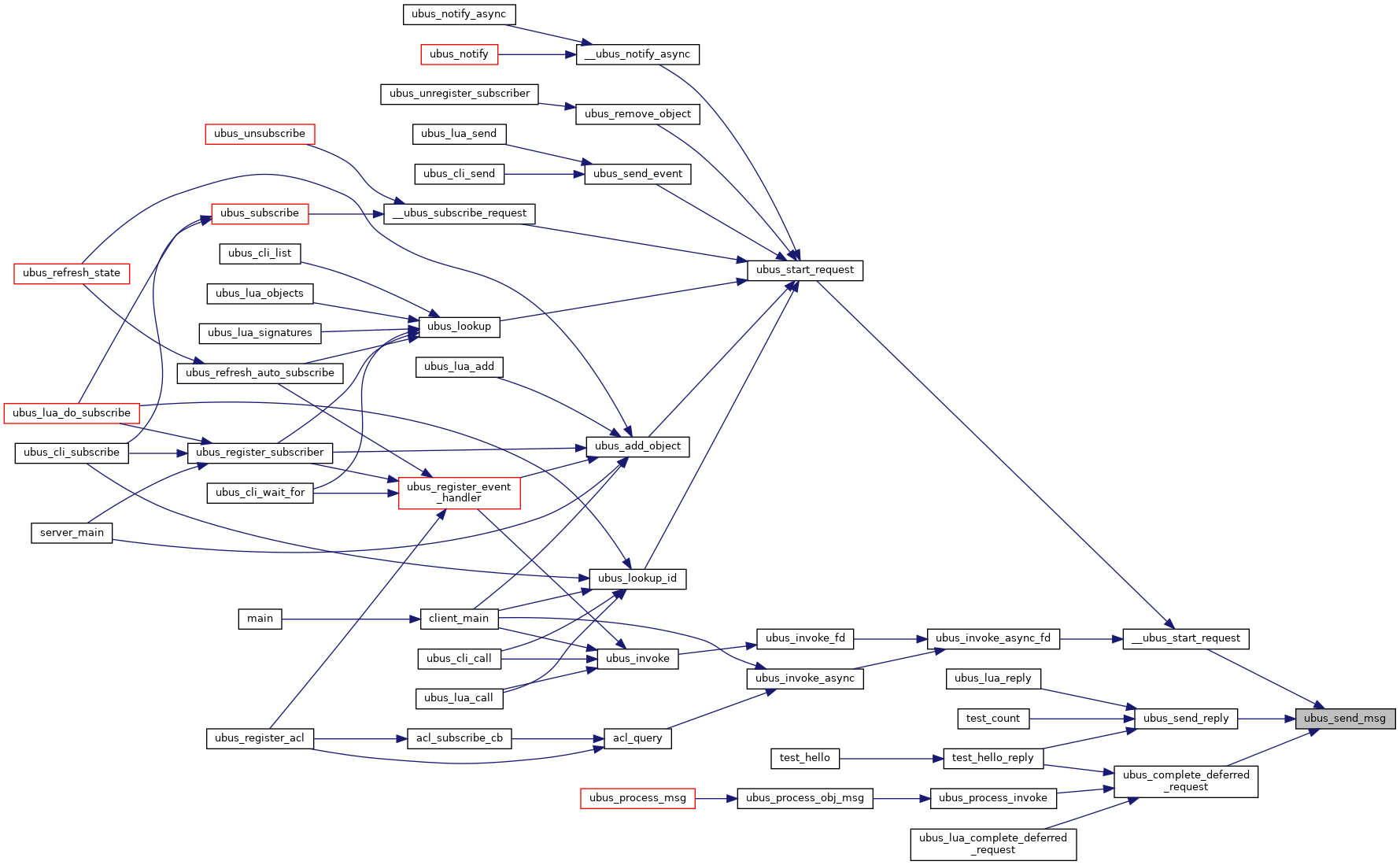

Here is the caller graph for this function:

ubus_validate_hdr()

bool ubus_validate_hdr

(

struct ubus_msghdr *

hdr

)

Definition at line 224 of file libubus-io.c.

{
        struct blob_attr *data = (struct blob_attr *) (hdr + 1);

        if (hdr->version != 0)
                return false;

        if (blob_raw_len(data) < sizeof(*data))
                return false;

        if (blob_pad_len(data) > UBUS_MAX_MSGLEN)
                return false;

        return true;
}

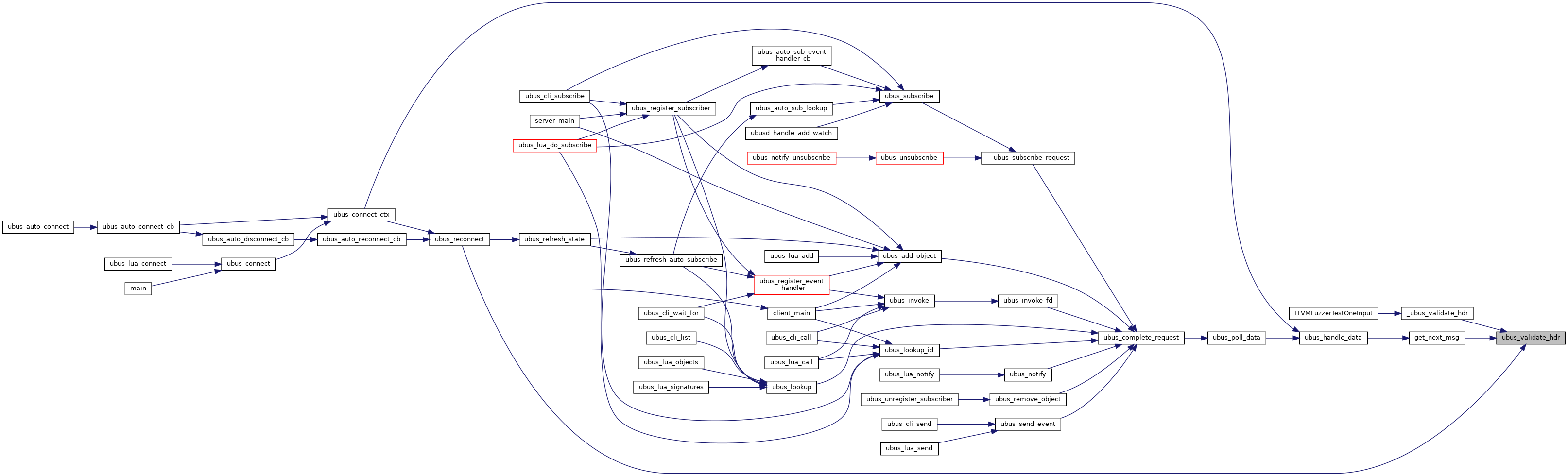

Here is the caller graph for this function:

wait_data()

static void wait_data ( int  fd, bool  write  )

static

Definition at line 52 of file libubus-io.c.

{
        struct pollfd pfd = { .fd = fd };

        pfd.events = write ? POLLOUT : POLLIN;
        poll(&pfd, 1, -1);
}

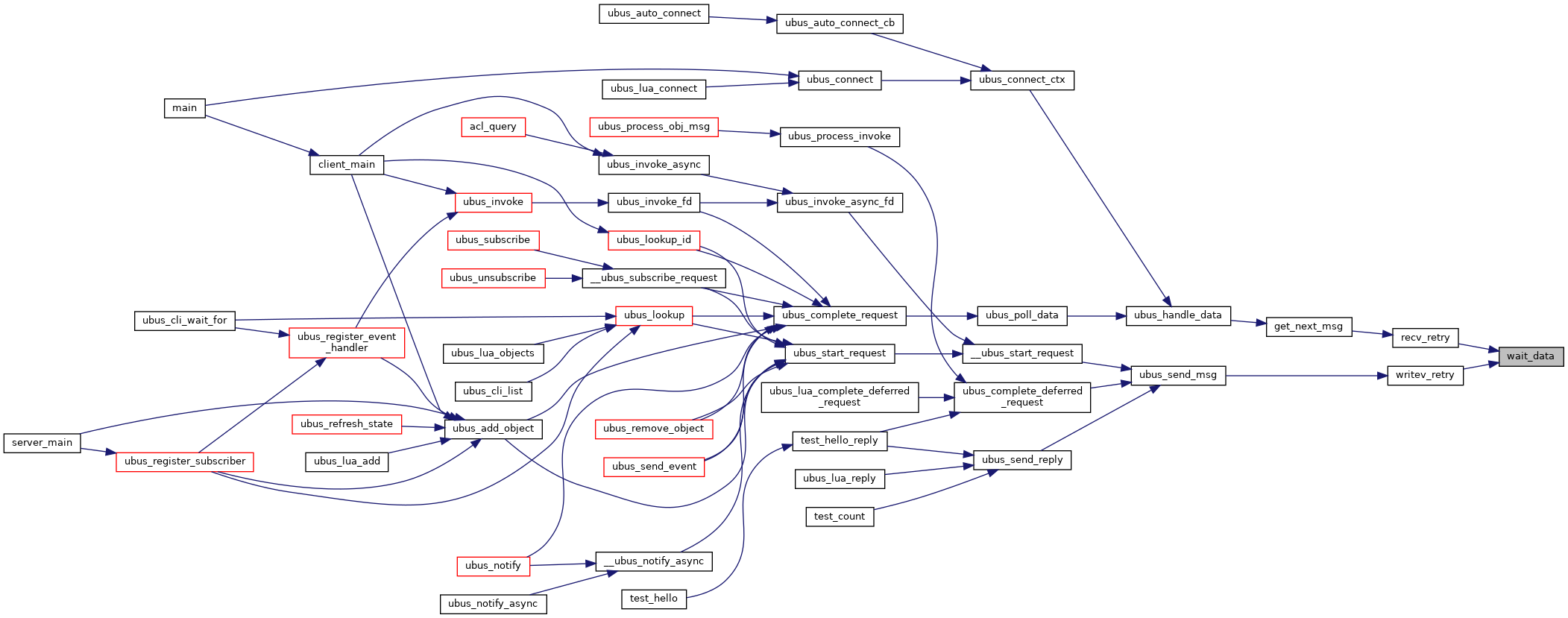

Here is the caller graph for this function:

writev_retry()

static int writev_retry ( int  fd, struct iovec *  iov, int  iov_len, int  sock_fd  )

static

Definition at line 60 of file libubus-io.c.

{
        uint8_t fd_buf[CMSG_SPACE(sizeof(int))] = { 0 };
        struct msghdr msghdr = { 0 };
        struct cmsghdr *cmsg;
        int len = 0;
        int *pfd;

        msghdr.msg_iov = iov,
        msghdr.msg_iovlen = iov_len,
        msghdr.msg_control = fd_buf;
        msghdr.msg_controllen = sizeof(fd_buf);

        cmsg = CMSG_FIRSTHDR(&msghdr);
        cmsg->cmsg_type = SCM_RIGHTS;
        cmsg->cmsg_level = SOL_SOCKET;
        cmsg->cmsg_len = CMSG_LEN(sizeof(int));

        pfd = (int *) CMSG_DATA(cmsg);
        msghdr.msg_controllen = cmsg->cmsg_len;

        do {
                ssize_t cur_len;

                if (sock_fd < 0) {
                        msghdr.msg_control = NULL;
                        msghdr.msg_controllen = 0;
                } else {
                        *pfd = sock_fd;
                }

                cur_len = sendmsg(fd, &msghdr, 0);
                if (cur_len < 0) {
                        switch(errno) {
                        case EAGAIN:
                                wait_data(fd, true);
                                break;
                        case EINTR:
                                break;
                        default:
                                return -1;
                        }
                        continue;
                }

                if (len > 0)
                        sock_fd = -1;

                len += cur_len;
                while (cur_len >= (ssize_t) iov->iov_len) {
                        cur_len -= iov->iov_len;
                        iov_len--;
                        iov++;
                        if (!iov_len)
                                return len;
                }
                iov->iov_base += cur_len;
                iov->iov_len -= cur_len;
                msghdr.msg_iov = iov;
                msghdr.msg_iovlen = iov_len;
        } while (1);

        /* Should never reach here */
        return -1;
}

Here is the call graph for this function:

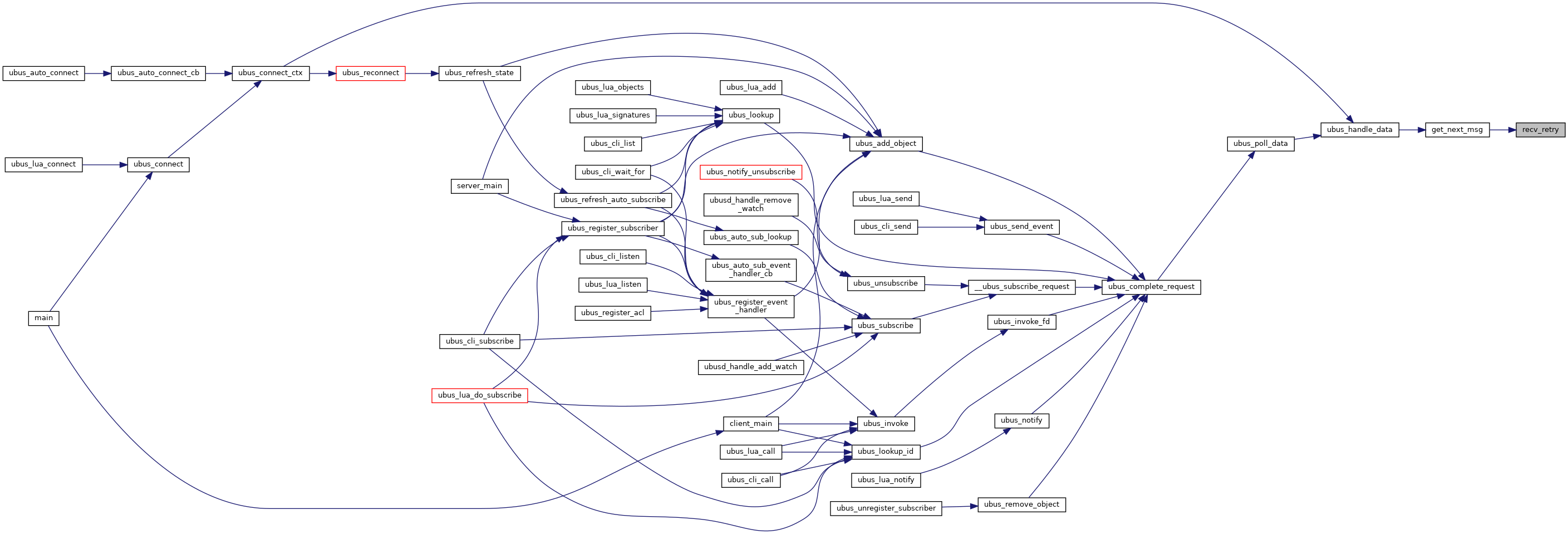

Here is the caller graph for this function:

Variable Documentation

attrbuf

struct blob_attr* attrbuf[UBUS_ATTR_MAX]

static

Definition at line 44 of file libubus-io.c.

ubus_policy

const struct blob_attr_info ubus_policy[UBUS_ATTR_MAX]

static

Initial value:

= {
        [UBUS_ATTR_STATUS] = { .type = BLOB_ATTR_INT32 },
        [UBUS_ATTR_OBJID] = { .type = BLOB_ATTR_INT32 },
        [UBUS_ATTR_OBJPATH] = { .type = BLOB_ATTR_STRING },
        [UBUS_ATTR_METHOD] = { .type = BLOB_ATTR_STRING },
        [UBUS_ATTR_ACTIVE] = { .type = BLOB_ATTR_INT8 },
        [UBUS_ATTR_NO_REPLY] = { .type = BLOB_ATTR_INT8 },
        [UBUS_ATTR_SUBSCRIBERS] = { .type = BLOB_ATTR_NESTED },
}

Definition at line 1 of file libubus-io.c.
