usock.h File Reference

Go to the source code of this file.

Macros
#define	USOCK_TCP   0
#define	USOCK_UDP   1
#define	USOCK_SERVER   0x0100
#define	USOCK_NOCLOEXEC   0x0200
#define	USOCK_NONBLOCK   0x0400
#define	USOCK_NUMERIC   0x0800
#define	USOCK_IPV6ONLY   0x2000
#define	USOCK_IPV4ONLY   0x4000
#define	USOCK_UNIX   0x8000

Functions
const char *	usock_port (int port)
int	usock (int type, const char *host, const char *service)
int	usock_inet_timeout (int type, const char *host, const char *service, void *addr, int timeout)
static int	usock_inet (int type, const char *host, const char *service, void *addr)
int	usock_wait_ready (int fd, int msecs)

Macro Definition Documentation

USOCK_IPV4ONLY

#define USOCK_IPV4ONLY   0x4000

Definition at line 30 of file usock.h.

USOCK_IPV6ONLY

#define USOCK_IPV6ONLY   0x2000

Definition at line 29 of file usock.h.

USOCK_NOCLOEXEC

#define USOCK_NOCLOEXEC   0x0200

Definition at line 26 of file usock.h.

USOCK_NONBLOCK

#define USOCK_NONBLOCK   0x0400

Definition at line 27 of file usock.h.

USOCK_NUMERIC

#define USOCK_NUMERIC   0x0800

Definition at line 28 of file usock.h.

USOCK_SERVER

#define USOCK_SERVER   0x0100

Definition at line 25 of file usock.h.

USOCK_TCP

#define USOCK_TCP   0

Definition at line 22 of file usock.h.

USOCK_UDP

#define USOCK_UDP   1

Definition at line 23 of file usock.h.

USOCK_UNIX

#define USOCK_UNIX   0x8000

Definition at line 31 of file usock.h.

Function Documentation

usock()

int usock	(	int	type,
		const char *	host,
		const char *	service
	)

Definition at line 252 of file usock.c.

                                                           {
        int sock;

        if (type & USOCK_UNIX)
                sock = usock_unix(type, host);
        else
                sock = usock_inet(type, host, service, NULL);

        if (sock < 0)
                return -1;

        return sock;
}

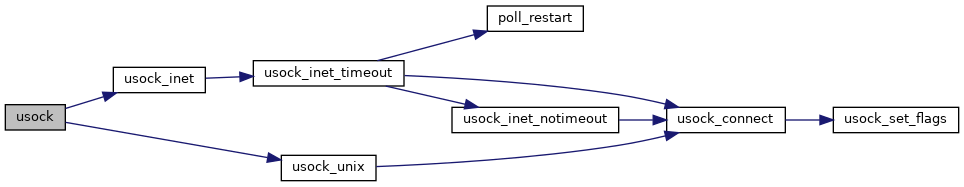

Here is the call graph for this function:

Here is the caller graph for this function:

usock_inet()

static int usock_inet ( int  type, const char *  host, const char *  service, void *  addr  )

inlinestatic

Definition at line 38 of file usock.h.

{
    return usock_inet_timeout(type, host, service, addr, -1);
}

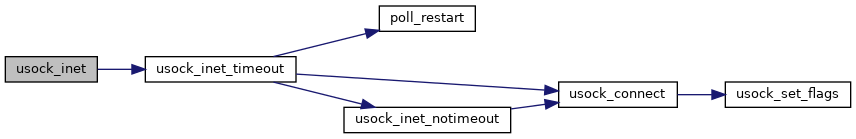

Here is the call graph for this function:

Here is the caller graph for this function:

usock_inet_timeout()

int usock_inet_timeout	(	int	type,
		const char *	host,
		const char *	service,
		void *	addr,
		int	timeout
	)

Definition at line 134 of file usock.c.

{
        int socktype = ((type & 0xff) == USOCK_TCP) ? SOCK_STREAM : SOCK_DGRAM;
        bool server = !!(type & USOCK_SERVER);
        struct addrinfo *result, *rp;
        struct addrinfo hints = {
                .ai_family = (type & USOCK_IPV6ONLY) ? AF_INET6 :
                        (type & USOCK_IPV4ONLY) ? AF_INET : AF_UNSPEC,
                .ai_socktype = socktype,
                .ai_flags = AI_ADDRCONFIG
                        | ((type & USOCK_SERVER) ? AI_PASSIVE : 0)
                        | ((type & USOCK_NUMERIC) ? AI_NUMERICHOST : 0),
        };
        struct addrinfo *rp_v6 = NULL;
        struct addrinfo *rp_v4 = NULL;
        struct pollfd pfds[2] = {
            { .fd = -1, .events = POLLOUT },
            { .fd = -1, .events = POLLOUT },
        };
        int sock = -1;
        int i;

        if (getaddrinfo(host, service, &hints, &result))
                return -1;

        if (timeout <= 0 || server) {
                sock = usock_inet_notimeout(type, result, addr);
                goto free_addrinfo;
        }

        for (rp = result; rp != NULL; rp = rp->ai_next) {
                if (rp->ai_family == AF_INET6 && !rp_v6)
                        rp_v6 = rp;
                if (rp->ai_family == AF_INET && !rp_v4)
                        rp_v4 = rp;
        }

        if (!rp_v6 && !rp_v4)
                goto out;

        if (rp_v6) {
                rp = rp_v6;
                pfds[0].fd = usock_connect(type | USOCK_NONBLOCK, rp->ai_addr,
                                           rp->ai_addrlen, rp->ai_family,
                                           socktype, server);
                if (pfds[0].fd < 0) {
                        rp_v6 = NULL;
                        goto try_v4;
                }

                if (timeout > 300) {
                        if (poll_restart(pfds, 1, 300) == 1) {
                                rp = rp_v6;
                                sock = pfds[0].fd;
                                goto out;
                        }
                }
                timeout -= 300;
        }

try_v4:
        if (rp_v4) {
                rp = rp_v4;
                pfds[1].fd = usock_connect(type | USOCK_NONBLOCK, rp->ai_addr,
                                                 rp->ai_addrlen, rp->ai_family,
                                                 socktype, server);
                if (pfds[1].fd < 0) {
                        rp_v4 = NULL;
                        if (!rp_v6)
                                goto out;
                        goto wait;
                }
        }

wait:
        poll_restart(pfds + !rp_v6, !!rp_v6 + !!rp_v4, timeout);
        if (pfds[0].revents & POLLOUT) {
                rp = rp_v6;
                sock = pfds[0].fd;
                goto out;
        }

        if (pfds[1].revents & POLLOUT) {
                rp = rp_v4;
                sock = pfds[1].fd;
                goto out;
        }

out:
        for (i = 0; i < 2; i++) {
                int fd = pfds[i].fd;
                if (fd >= 0 && fd != sock)
                        close(fd);
        }

        if (!(type & USOCK_NONBLOCK))
                fcntl(sock, F_SETFL, fcntl(sock, F_GETFL) & ~O_NONBLOCK);

        if (addr && sock >= 0)
                memcpy(addr, rp->ai_addr, rp->ai_addrlen);
free_addrinfo:
        freeaddrinfo(result);
        return sock;
}

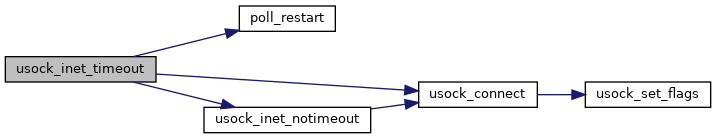

Here is the call graph for this function:

Here is the caller graph for this function:

usock_port()

const char* usock_port

(

int

port

)

Definition at line 240 of file usock.c.

{
        static char buffer[sizeof("65535\0")];

        if (port < 0 || port > 65535)
                return NULL;

        snprintf(buffer, sizeof(buffer), "%u", port);

        return buffer;
}

usock_wait_ready()

int usock_wait_ready	(	int	fd,
		int	msecs
	)

Wait for a socket to become ready.

This may be useful for users of USOCK_NONBLOCK to wait (with a timeout) for a socket.

Parameters

fd	file descriptor of socket
msecs	timeout in microseconds

Definition at line 266 of file usock.c.

                                        {
        struct pollfd fds[1];
        int res;

        fds[0].fd = fd;
        fds[0].events = POLLOUT;

        res = poll(fds, 1, msecs);
        if (res < 0) {
                return errno;
        } else if (res == 0) {
                return -ETIMEDOUT;
        } else {
                int err = 0;
                socklen_t optlen = sizeof(err);

                res = getsockopt(fd, SOL_SOCKET, SO_ERROR, &err, &optlen);
                if (res)
                        return errno;
                if (err)
                        return err;
        }

        return 0;
}
