#include "dm_info.h"
#include <string.h>
#include <amxc/amxc.h>
#include <amxc/amxc_macros.h>
#include "xpon_trace.h"

Macros
#define	ARRAY_SIZE(arr) (sizeof(arr) / sizeof((arr)[0]))

Functions
bool	dm_info_init (void)

static bool	dm_convert_to_generic_path (const char path, amxc_string_t generic_path)

object_id_t	dm_get_object_id (const char *path)

const object_info_t *	dm_get_object_info (object_id_t id)

bool	dm_get_object_param_info (object_id_t id, const param_info_t *param_info, uint32_t size)

Variables
static const param_info_t	ONU_PARAMS []

static const param_info_t	SOFTWARE_IMAGE_PARAMS []

static const param_info_t	ETHERNET_UNI_PARAMS []

static const param_info_t	ANI_PARAMS []

static const param_info_t	GEM_PORT_PARAMS []

static const param_info_t	TRANSCEIVER_PARAMS []

static const param_info_t	ONU_ACTIVATION_PARAMS []

static const param_info_t	AUTHENTICATION_PARAMS []

static const param_info_t	PERFORMANCE_THRESHOLDS_PARAMS []

static const param_info_t	TC_ALARMS_PARAMS []

const object_info_t	OBJECT_INFO [obj_id_nbr]

Macro Definition Documentation

◆ ARRAY_SIZE

#define ARRAY_SIZE ( arr ) (sizeof(arr) / sizeof((arr)[0]))

Definition at line 77 of file dm_info.c.

Function Documentation

◆ dm_convert_to_generic_path()

static bool dm_convert_to_generic_path	(	const char *	path,
		amxc_string_t *	generic_path
	)

static

Convert an actual path to a generic path.

Parameters

[in]	path	actual path with real instance indexes, e.g., "XPON.ONU.1.ANI.1.Transceiver"
[in,out]	generic_path	the function returns the generic version of path. The generic version of a path is the path with all instance indexes replaced by 'x', e.g., "XPON.ONU.x.ANI.x.Transceiver".

Returns: true on success, else false

Definition at line 320 of file dm_info.c.

                                                                                       {

     bool rv = false;
     when_null(path, exit_no_cleanup);
     when_null(generic_path, exit_no_cleanup);

     amxc_llist_t list;
     amxc_llist_init(&list);

     amxc_string_t input;
     amxc_string_init(&input, 0);
     amxc_string_set(&input, path);

     if(AMXC_STRING_SPLIT_OK != amxc_string_split_to_llist(&input, &list, '.')) {
         SAH_TRACEZ_ERROR(ME, "Failed to split '%s'", path);
         goto exit;
     }

     /* Remove the last elem from 'list' if it's numeric */
     amxc_llist_it_t* last_it = amxc_llist_get_last(&list);
     when_null(last_it, exit);
     amxc_string_t* const last_elem = amxc_string_from_llist_it(last_it);
     if(amxc_string_is_numeric(last_elem)) {
         amxc_llist_take_last(&list);
         amxc_string_list_it_free(last_it);
     }

     amxc_llist_iterate(it, &list) {
         amxc_string_t* part = amxc_string_from_llist_it(it);
         if(amxc_string_is_numeric(part)) {
             amxc_string_set(part, "x");
         }
     }

     if(amxc_string_join_llist(generic_path, &list, '.') != 0) {
         SAH_TRACEZ_ERROR(ME, "Failed to generate generic path from '%s'", path);
         goto exit;
     }
     rv = true;

 exit:
     amxc_llist_clean(&list, amxc_string_list_it_free);
     amxc_string_clean(&input);

 exit_no_cleanup:
     return rv;
 }

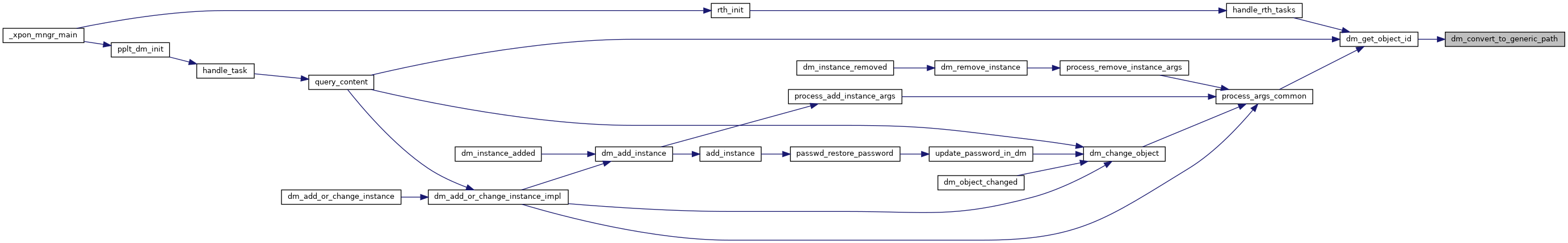

Here is the caller graph for this function:

◆ dm_get_object_id()

object_id_t dm_get_object_id ( const char * path )

Return the ID of an object.

Parameters

[in] path object path, e.g., "XPON.ONU.1.SoftwareImage".

Example: if path is "XPON.ONU.1.SoftwareImage", the function returns obj_id_software_image

Returns: one of the value of object_id_t smaller than obj_id_nbr upon success, else obj_id_unknown

Definition at line 380 of file dm_info.c.

                                                {

     object_id_t id = obj_id_unknown;

     amxc_string_t generic_path_str;
     amxc_string_init(&generic_path_str, 0);

     if(!dm_convert_to_generic_path(path, &generic_path_str)) {
         goto exit;
     }

     const char* const generic_path = amxc_string_get(&generic_path_str, 0);
     const size_t generic_path_len = strlen(generic_path);

     uint32_t i;
     size_t len;
     for(i = 0; i < obj_id_nbr; ++i) {
         len = strlen(OBJECT_INFO[i].generic_path);
         if((generic_path_len == len) &&
            (strncmp(generic_path, OBJECT_INFO[i].generic_path, len) == 0)) {
             id = OBJECT_INFO[i].id;
             break;
         }
     }

 exit:
     amxc_string_clean(&generic_path_str);
     return id;
 }

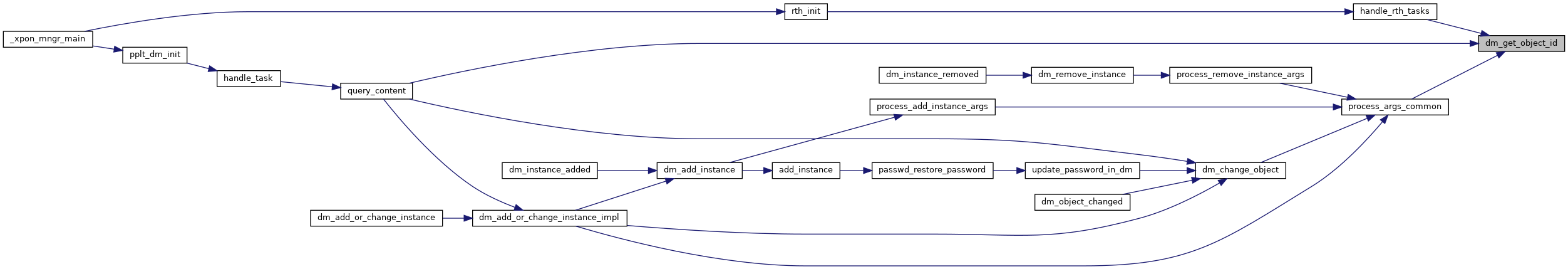

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dm_get_object_info()

const object_info_t* dm_get_object_info ( object_id_t id )

Definition at line 410 of file dm_info.c.

                                                         {
     if(id < obj_id_nbr) {
         return &OBJECT_INFO[id];
     }

     SAH_TRACEZ_ERROR(ME, "Invalid id [%d]", id);
     return NULL;
 }

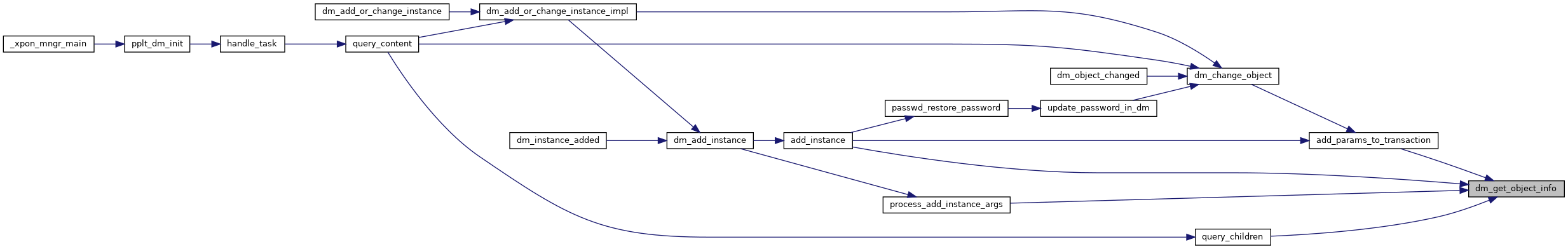

Here is the caller graph for this function:

◆ dm_get_object_param_info()

bool dm_get_object_param_info	(	object_id_t	id,
		const param_info_t **	param_info,
		uint32_t *	size
	)

Return info about the params of an object.

Parameters

[in]	id	object ID
[in,out]	param_info	function passes info about the params of the object via this param.
[in,out]	size	nr of elems in param_info

Returns: true on success, else false

Definition at line 429 of file dm_info.c.

                                               {
     if(id < obj_id_nbr) {
         *param_info = OBJECT_INFO[id].params;
         *size = OBJECT_INFO[id].n_params;
         return true;
     }
     SAH_TRACEZ_ERROR(ME, "Invalid id [%d]", id);
     return false;
 }

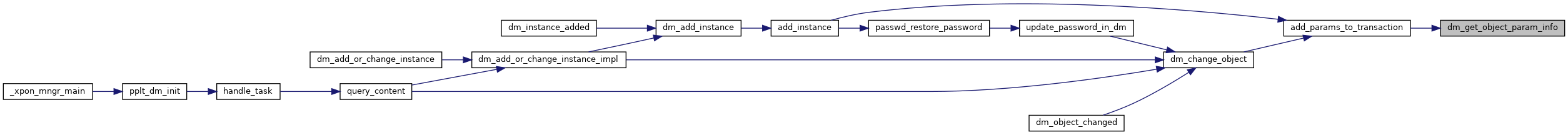

Here is the caller graph for this function:

◆ dm_info_init()

bool dm_info_init ( void )

Initialize the dm_info part.

The function only runs a sanity check on the OBJECT_INFO array.

The plugin must call this function once at startup.

Returns: true on success, else false

Definition at line 297 of file dm_info.c.

                         {
     uint32_t i;
     for(i = 0; i < obj_id_nbr; ++i) {
         if(OBJECT_INFO[i].id != i) {
             SAH_TRACEZ_ERROR(ME, "OBJECT_INFO[%d].id=%d != %d",
                              i, OBJECT_INFO[i].id, i);
             return false;
         }
     }
     return true;
 }

Here is the caller graph for this function:

Variable Documentation

◆ ANI_PARAMS

const param_info_t ANI_PARAMS[]

static

Initial value:

= {
    { .name = ENABLE_PARAM, .type = AMXC_VAR_ID_BOOL    },
    { .name = "Status", .type = AMXC_VAR_ID_CSTRING },
    { .name = "LastChange", .type = AMXC_VAR_ID_UINT32  },
    { .name = "PONMode", .type = AMXC_VAR_ID_CSTRING }
}

Definition at line 103 of file dm_info.c.

◆ AUTHENTICATION_PARAMS

const param_info_t AUTHENTICATION_PARAMS[]

static

Initial value:

= {
    { .name = "Password", .type = AMXC_VAR_ID_CSTRING },
    { .name = "HexadecimalPassword", .type = AMXC_VAR_ID_BOOL }
}

Definition at line 138 of file dm_info.c.

◆ ETHERNET_UNI_PARAMS

const param_info_t ETHERNET_UNI_PARAMS[]

static

Initial value:

= {
    { .name = "Enable", .type = AMXC_VAR_ID_BOOL       },
    { .name = "Status", .type = AMXC_VAR_ID_CSTRING    },
    { .name = "LastChange", .type = AMXC_VAR_ID_UINT32     },
    { .name = "ANIs", .type = AMXC_VAR_ID_CSV_STRING },
    { .name = "InterdomainID", .type = AMXC_VAR_ID_CSTRING    },
    { .name = "InterdomainName", .type = AMXC_VAR_ID_CSTRING    },
}

Definition at line 94 of file dm_info.c.

◆ GEM_PORT_PARAMS

const param_info_t GEM_PORT_PARAMS[]

static

Initial value:

= {
    { .name = "Direction", .type = AMXC_VAR_ID_CSTRING },
    { .name = "PortType", .type = AMXC_VAR_ID_CSTRING }
}

Definition at line 110 of file dm_info.c.

◆ OBJECT_INFO

const object_info_t OBJECT_INFO[obj_id_nbr]

Array with info about objects in the XPON DM.

The 'id' of the element at index 'i' must have 'i' as value.

Definition at line 171 of file dm_info.c.

◆ ONU_ACTIVATION_PARAMS

const param_info_t ONU_ACTIVATION_PARAMS[]

static

Initial value:

= {
    { .name = "ONUState", .type = AMXC_VAR_ID_CSTRING },
    { .name = "VendorID", .type = AMXC_VAR_ID_CSTRING },
    { .name = "SerialNumber", .type = AMXC_VAR_ID_CSTRING },
    { .name = "ONUID", .type = AMXC_VAR_ID_UINT32  }
}

Definition at line 131 of file dm_info.c.

◆ ONU_PARAMS

const param_info_t ONU_PARAMS[]

static

Initial value:

= {
    { .name = ENABLE_PARAM, .type = AMXC_VAR_ID_BOOL    },
    { .name = "Version", .type = AMXC_VAR_ID_CSTRING },
    { .name = "EquipmentID", .type = AMXC_VAR_ID_CSTRING },
    { .name = "UsePPTPEthernetUNIasIFtoNonOmciDomain", .type = AMXC_VAR_ID_BOOL }
}

Definition at line 80 of file dm_info.c.

◆ PERFORMANCE_THRESHOLDS_PARAMS

const param_info_t PERFORMANCE_THRESHOLDS_PARAMS[]

static

Initial value:

= {
    { .name = "SignalFail", .type = AMXC_VAR_ID_UINT32 },
    { .name = "SignalDegrade", .type = AMXC_VAR_ID_UINT32 }
}

Definition at line 143 of file dm_info.c.

◆ SOFTWARE_IMAGE_PARAMS

const param_info_t SOFTWARE_IMAGE_PARAMS[]

static

Initial value:

= {
    { .name = "Version", .type = AMXC_VAR_ID_CSTRING },
    { .name = "IsCommitted", .type = AMXC_VAR_ID_BOOL },
    { .name = "IsActive", .type = AMXC_VAR_ID_BOOL },
    { .name = "IsValid", .type = AMXC_VAR_ID_BOOL }
}

Definition at line 87 of file dm_info.c.

◆ TC_ALARMS_PARAMS

const param_info_t TC_ALARMS_PARAMS[]

static

Initial value:

= {
    { .name = "LOS", .type = AMXC_VAR_ID_BOOL },
    { .name = "LOF", .type = AMXC_VAR_ID_BOOL },
    { .name = "SF", .type = AMXC_VAR_ID_BOOL },
    { .name = "SD", .type = AMXC_VAR_ID_BOOL },
    { .name = "LCDG", .type = AMXC_VAR_ID_BOOL },
    { .name = "TF", .type = AMXC_VAR_ID_BOOL },
    { .name = "SUF", .type = AMXC_VAR_ID_BOOL },
    { .name = "MEM", .type = AMXC_VAR_ID_BOOL },
    { .name = "DACT", .type = AMXC_VAR_ID_BOOL },
    { .name = "DIS", .type = AMXC_VAR_ID_BOOL },
    { .name = "MIS", .type = AMXC_VAR_ID_BOOL },
    { .name = "PEE", .type = AMXC_VAR_ID_BOOL },
    { .name = "RDI", .type = AMXC_VAR_ID_BOOL },
    { .name = "LODS", .type = AMXC_VAR_ID_BOOL },
    { .name = "ROGUE", .type = AMXC_VAR_ID_BOOL }
}

Definition at line 148 of file dm_info.c.

◆ TRANSCEIVER_PARAMS

const param_info_t TRANSCEIVER_PARAMS[]

static

Initial value:

= {
    { .name = "Identifier", .type = AMXC_VAR_ID_UINT32  },
    { .name = "VendorName", .type = AMXC_VAR_ID_CSTRING },
    { .name = "VendorPartNumber", .type = AMXC_VAR_ID_CSTRING },
    { .name = "VendorRevision", .type = AMXC_VAR_ID_CSTRING },
    { .name = "PONMode", .type = AMXC_VAR_ID_CSTRING },
    { .name = "Connector", .type = AMXC_VAR_ID_CSTRING },
    { .name = "NominalBitRateDownstream", .type = AMXC_VAR_ID_UINT32  },
    { .name = "NominalBitRateUpstream", .type = AMXC_VAR_ID_UINT32  },
    { .name = "RxPower", .type = AMXC_VAR_ID_INT32   },
    { .name = "TxPower", .type = AMXC_VAR_ID_INT32   },
    { .name = "Voltage", .type = AMXC_VAR_ID_UINT32  },
    { .name = "Bias", .type = AMXC_VAR_ID_UINT32  },
    { .name = "Temperature", .type = AMXC_VAR_ID_INT32   }
}

Definition at line 115 of file dm_info.c.
