dm_info.h File Reference

#include <stdbool.h>
#include <stdint.h>

Go to the source code of this file.

Data Structures
struct	_param_info
struct	_object_info

Macros
#define	ENABLE_PARAM   "Enable"
#define	NAME_PARAM   "Name"
#define	NAME_PARAM_LEN   4

Typedefs
typedef enum _xpon_object_id	object_id_t
typedef struct _param_info	param_info_t
typedef struct _object_info	object_info_t

Enumerations
enum	_xpon_object_id {   obj_id_onu = 0 , obj_id_software_image , obj_id_ethernet_uni , obj_id_ani ,   obj_id_gem_port , obj_id_transceiver , obj_id_ani_tc_onu_activation , obj_id_ani_tc_authentication ,   obj_id_ani_tc_performance_thresholds , obj_id_ani_tc_alarms , obj_id_nbr , obj_id_unknown = obj_id_nbr }

Functions
bool	dm_info_init (void)
object_id_t	dm_get_object_id (const char *path)
const object_info_t *	dm_get_object_info (object_id_t id)
bool	dm_get_object_param_info (object_id_t id, const param_info_t **param_info, uint32_t *size)

Detailed Description

Info related to the TR-181 XPON DM known at compile time.

Definition in file dm_info.h.

Macro Definition Documentation

ENABLE_PARAM

#define ENABLE_PARAM   "Enable"

Definition at line 74 of file dm_info.h.

NAME_PARAM

#define NAME_PARAM   "Name"

Definition at line 76 of file dm_info.h.

NAME_PARAM_LEN

#define NAME_PARAM_LEN   4

Definition at line 77 of file dm_info.h.

Typedef Documentation

object_id_t

typedef enum _xpon_object_id object_id_t

object_info_t

typedef struct _object_info object_info_t

Info which is known at compile time about an object in the XPON DM.

• id: unique ID identifying an object in the DM
• name: symbolic name for 'id'. Mainly intended for log messages. E.g., "SoftwareImage".
• generic_path: object path with all instance indexes replaced by 'x', e.g., "XPON.ONU.x.SoftwareImage"
• key_name: the name of the parameter which is the unique key of the template object. Only applicable for template objects.
• key_max_value: if the key referred to by 'key_name' is an uint32, this field indicates its max value.
• singletons: string of comma-separated strings identifying the children which are singletons.
• templates: string of comma-separated strings identifying the children which are templates.
• params: pointer to array with info about the params of this object.
• n_params: number of params in the array pointed to by 'params'
• has_rw_enable: true if the object has a read-write Enable parameter. The code only looks at this field when creating a new instance of a template object.

param_info_t

typedef struct _param_info param_info_t

Enumeration Type Documentation

_xpon_object_id

enum _xpon_object_id

Enumerator
obj_id_onu
obj_id_software_image
obj_id_ethernet_uni
obj_id_ani
obj_id_gem_port
obj_id_transceiver
obj_id_ani_tc_onu_activation
obj_id_ani_tc_authentication
obj_id_ani_tc_performance_thresholds
obj_id_ani_tc_alarms
obj_id_nbr
obj_id_unknown

Definition at line 79 of file dm_info.h.

                             {
    obj_id_onu = 0,
    obj_id_software_image,
    obj_id_ethernet_uni,
    obj_id_ani,
    obj_id_gem_port,
    obj_id_transceiver,
    obj_id_ani_tc_onu_activation,
    obj_id_ani_tc_authentication,
    obj_id_ani_tc_performance_thresholds,
    obj_id_ani_tc_alarms,
    obj_id_nbr,
    obj_id_unknown = obj_id_nbr
} object_id_t;

Function Documentation

dm_get_object_id()

object_id_t dm_get_object_id

(

const char *

path

)

Return the ID of an object.

Parameters

[in]

path

object path, e.g., "XPON.ONU.1.SoftwareImage".

Example: if path is "XPON.ONU.1.SoftwareImage", the function returns obj_id_software_image

Returns

one of the value of object_id_t smaller than obj_id_nbr upon success, else obj_id_unknown

Definition at line 380 of file dm_info.c.

                                               {

    object_id_t id = obj_id_unknown;

    amxc_string_t generic_path_str;
    amxc_string_init(&generic_path_str, 0);

    if(!dm_convert_to_generic_path(path, &generic_path_str)) {
        goto exit;
    }

    const char* const generic_path = amxc_string_get(&generic_path_str, 0);
    const size_t generic_path_len = strlen(generic_path);

    uint32_t i;
    size_t len;
    for(i = 0; i < obj_id_nbr; ++i) {
        len = strlen(OBJECT_INFO[i].generic_path);
        if((generic_path_len == len) &&
           (strncmp(generic_path, OBJECT_INFO[i].generic_path, len) == 0)) {
            id = OBJECT_INFO[i].id;
            break;
        }
    }

exit:
    amxc_string_clean(&generic_path_str);
    return id;
}

Here is the call graph for this function:

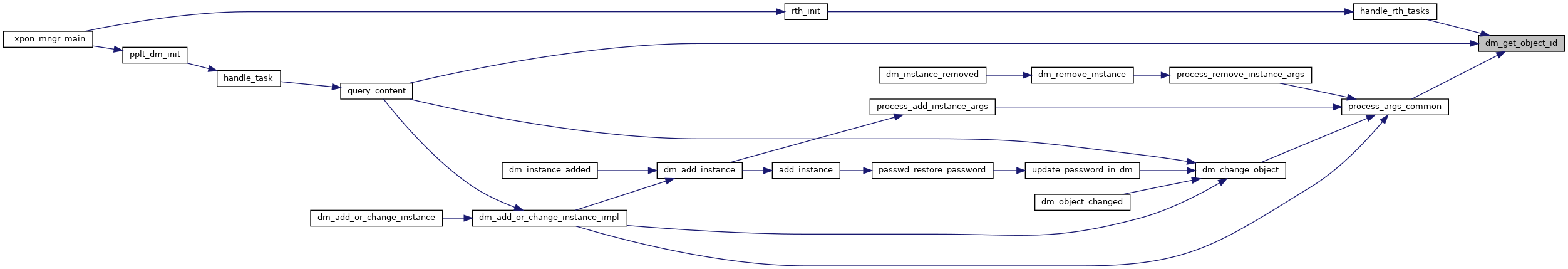

Here is the caller graph for this function:

dm_get_object_info()

const object_info_t* dm_get_object_info

(

object_id_t

id

)

Definition at line 410 of file dm_info.c.

                                                        {
    if(id < obj_id_nbr) {
        return &OBJECT_INFO[id];
    }

    SAH_TRACEZ_ERROR(ME, "Invalid id [%d]", id);
    return NULL;
}

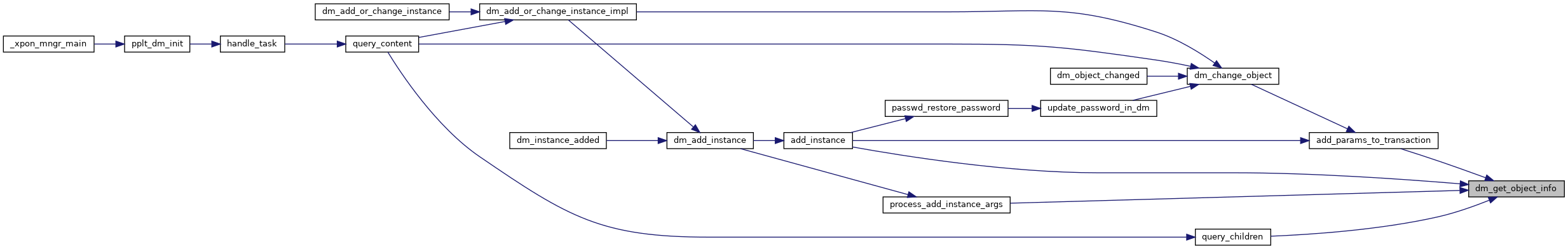

Here is the caller graph for this function:

dm_get_object_param_info()

bool dm_get_object_param_info	(	object_id_t	id,
		const param_info_t **	param_info,
		uint32_t *	size
	)

Return info about the params of an object.

Parameters

[in]	id	object ID
[in,out]	param_info	function passes info about the params of the object via this param.
[in,out]	size	nr of elems in param_info

Returns

true on success, else false

Definition at line 429 of file dm_info.c.

                                              {
    if(id < obj_id_nbr) {
        *param_info = OBJECT_INFO[id].params;
        *size = OBJECT_INFO[id].n_params;
        return true;
    }
    SAH_TRACEZ_ERROR(ME, "Invalid id [%d]", id);
    return false;
}

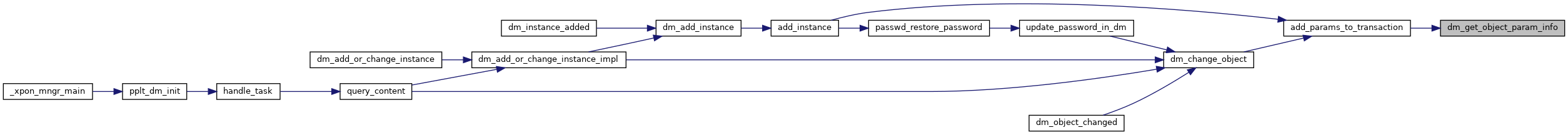

Here is the caller graph for this function:

dm_info_init()

bool dm_info_init

(

void

)

Initialize the dm_info part.

The function only runs a sanity check on the OBJECT_INFO array.

The plugin must call this function once at startup.

Returns

true on success, else false

Definition at line 297 of file dm_info.c.

                        {
    uint32_t i;
    for(i = 0; i < obj_id_nbr; ++i) {
        if(OBJECT_INFO[i].id != i) {
            SAH_TRACEZ_ERROR(ME, "OBJECT_INFO[%d].id=%d != %d",
                             i, OBJECT_INFO[i].id, i);
            return false;
        }
    }
    return true;
}

Here is the caller graph for this function:
