restore_to_hal.c File Reference

#include "restore_to_hal.h"
#include <stdlib.h>
#include <string.h>
#include <amxc/amxc_macros.h>
#include <amxc/amxc.h>
#include <amxp/amxp_timer.h>
#include "data_model.h"
#include "dm_info.h"
#include "pon_ctrl.h"
#include "xpon_mgr_constants.h"
#include "xpon_trace.h"

Go to the source code of this file.

Data Structures
struct	_rth_task

Typedefs
typedef struct _rth_task	rth_task_t

Functions
static void	rth_task_clean (rth_task_t *const task)
static rth_task_t *	rth_task_create (const char *const path)
static void	rth_task_delete (amxc_llist_it_t *hit)
static void	handle_rth_tasks (amxp_timer_t *timer, UNUSED void *priv)
void	rth_init (void)
void	rth_cleanup (void)
void	rth_schedule_enable (const char *const object)
void	rth_disable (const char *const object)

Variables
static amxc_llist_t	s_rth_tasks
static amxp_timer_t *	s_timer_handle_rth_tasks = NULL
static const uint8_t	MAX_CHECKS_ON_NR_OF_UNIS_AND_ANIS = 4

Typedef Documentation

rth_task_t

typedef struct _rth_task rth_task_t

Task to enable an object in the HAL.

• path: path of object to be enabled, e.g. "XPON.ONU.1"
• cntr: when enabling an XPON.ONU instance, tr181-xpon waits for a few seconds until the XPON.ONU instance has at least one EthernetUNI instance and one ANI instance. Enabling the XPON.ONU instance before tr181-xpon has discovered its EthernetUNI or ANI instance(s) might cause errors. E.g. the vendor module might already try to update the Status field of the EthernetUNI instance. This counter keeps track of how many times tr181-xpon checked the number of EthernetUNIs and ANIs of the XPON.ONU instance given by 'path'. If the counter goes above MAX_CHECKS_ON_NR_OF_UNIS_AND_ANIS, tr181-xpon enables the XPON.UNI instance even if its number of EthernetUNIs or ANIs is still 0. The field 'cntr' tracks more or less a number of seconds. By setting the MAX_CHECKS value to 4, tr181-xpon waits max about 4 to 5 seconds for both an EthernetUNI and ANI to appear. If 'path' refers to something else than an XPON.ONU instance, this counter is don't care.
• it: iterator to put it in s_rth_tasks

Function Documentation

handle_rth_tasks()

static void handle_rth_tasks ( amxp_timer_t *  timer, UNUSED void *  priv  )

static

Handle all tasks in the list s_rth_tasks to restore their Enable=1 setting.

For each task in the list, do the following:

• If the path in the task does not refer to an XPON.ONU instance, call pon_ctrl_set_enable(), remove the task from the list and delete it.
• If the path in the task refers to an XPON.ONU instance, check its number of EthernetUNIs and ANIs. If they are both non zero, or if the 'cntr' field of the task is larger than MAX_CHECKS_ON_NR_OF_UNIS_AND_ANIS, call pon_ctrl_set_enable(), remove the task from the list and delete it. Else increment the field 'cntr' and keep the task in the list. See doc of field 'cntr' of 'struct _rth_task' above for more info on this behavior.

Restart timer with timeout of 1 s if there are still tasks in the list.

Definition at line 177 of file restore_to_hal.c.

                                                                     {

    if(amxc_llist_is_empty(&s_rth_tasks)) {
        SAH_TRACEZ_WARNING(ME, "No tasks");
        return;
    }

    rth_task_t* task;
    const char* path;
    object_id_t id;
    bool delete_item;
    uint32_t n_ethernet_unis;
    uint32_t n_anis;
    amxc_llist_for_each(it, &s_rth_tasks) {
        delete_item = true;
        task = amxc_llist_it_get_data(it, rth_task_t, it);
        path = amxc_string_get(&task->path, 0);
        id = dm_get_object_id(path);
        SAH_TRACEZ_DEBUG(ME, "path='%s'", path);
        if(obj_id_onu == id) {
            n_ethernet_unis = dm_get_nr_of_ethernet_uni_instances(path);
            n_anis = dm_get_nr_of_ani_instances(path);
            SAH_TRACEZ_DEBUG(ME, "path='%s' n_ethernet_unis=%d n_anis=%d cntr=%d",
                             path, n_ethernet_unis, n_anis, task->cntr);
            if((n_ethernet_unis != 0) && (n_anis != 0)) {
                pon_ctrl_set_enable(path, /*enable=*/ true);
            } else if(task->cntr > MAX_CHECKS_ON_NR_OF_UNIS_AND_ANIS) {
                SAH_TRACEZ_WARNING(ME, "Enable %s despite n_ethernet_unis=%d n_anis=%d",
                                   path, n_ethernet_unis, n_anis);
                pon_ctrl_set_enable(path, /*enable=*/ true);
            } else {
                ++task->cntr;
                delete_item = false;
            }
        } else {
            pon_ctrl_set_enable(path, /*enable=*/ true);
        }
        if(delete_item) {
            amxc_llist_it_take(it);
            rth_task_clean(task);
            free(task);
        }
    }
    if(!amxc_llist_is_empty(&s_rth_tasks)) {
        amxp_timer_start(timer, /*timeout_msec=*/ 1000);
    }
}

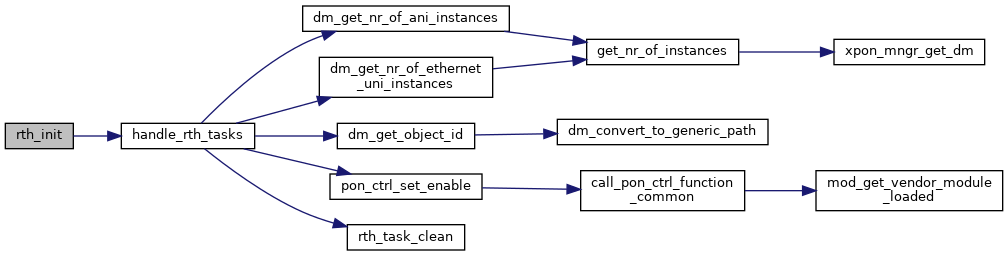

Here is the call graph for this function:

Here is the caller graph for this function:

rth_cleanup()

void rth_cleanup

(

void

)

Definition at line 234 of file restore_to_hal.c.

                       {
    if(!amxc_llist_is_empty(&s_rth_tasks)) {
        /* Normally s_rth_tasks should be empty upon stopping */
        SAH_TRACEZ_WARNING(ME, "size(s_rth_tasks)=%zd != 0",
                           amxc_llist_size(&s_rth_tasks));
        amxc_llist_clean(&s_rth_tasks, rth_task_delete);
    }
    amxp_timer_delete(&s_timer_handle_rth_tasks);
}

Here is the call graph for this function:

Here is the caller graph for this function:

rth_disable()

void rth_disable

(

const char *const

object

)

Remove task to enable an object in the HAL if such task exists.

Parameters

[in]

object

object path, e.g. "XPON.ONU.1"

Definition at line 286 of file restore_to_hal.c.

                                           {
    if(amxc_llist_is_empty(&s_rth_tasks)) {
        return;
    }
    rth_task_t* task;
    const char* path;
    amxc_llist_for_each(it, &s_rth_tasks) {
        task = amxc_llist_it_get_data(it, rth_task_t, it);
        path = amxc_string_get(&task->path, 0);
        if(strcmp(object, path) == 0) {
            amxc_llist_it_take(it);
            rth_task_delete(it);
            break; /* out of iteration over s_rth_tasks */
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

rth_init()

void rth_init

(

void

)

Definition at line 226 of file restore_to_hal.c.

                    {
    amxc_llist_init(&s_rth_tasks);

    if(amxp_timer_new(&s_timer_handle_rth_tasks, handle_rth_tasks, NULL)) {
        SAH_TRACEZ_ERROR(ME, "Failed to create timer to handle tasks");
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

rth_schedule_enable()

void rth_schedule_enable

(

const char *const

object

)

Schedule task to enable an object in the HAL.

Parameters

[in]

object

object path, e.g. "XPON.ONU.1"

The function creates a task to enable the object in the HAL, appends it to the list of tasks managed by this restore_to_hal part, and starts the timer to handle all tasks in that list.

If there is already a task in the list to enable the object, the function immediately returns.

Definition at line 256 of file restore_to_hal.c.

                                                   {

    SAH_TRACEZ_DEBUG(ME, "object='%s'", object);

    when_null_trace(s_timer_handle_rth_tasks, exit, ERROR, "No timer");

    const rth_task_t* task;
    const char* path;
    amxc_llist_iterate(it, &s_rth_tasks) {
        task = amxc_llist_it_get_data(it, rth_task_t, it);
        path = amxc_string_get(&task->path, 0);
        if(strncmp(path, object, strlen(object)) == 0) {
            SAH_TRACEZ_DEBUG(ME, "%s is already scheduled to be enabled", object);
            return;
        }
    }

    if(rth_task_create(object) != NULL) {
        amxp_timer_start(s_timer_handle_rth_tasks, SHORT_TIMEOUT_MS);
    }

exit:
    return;
}

Here is the call graph for this function:

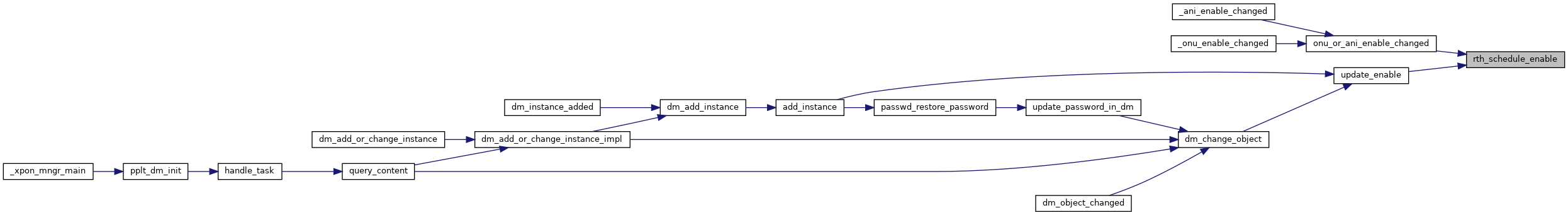

Here is the caller graph for this function:

rth_task_clean()

static void rth_task_clean ( rth_task_t *const  task )

static

Definition at line 120 of file restore_to_hal.c.

                                                   {
    amxc_string_clean(&task->path);
}

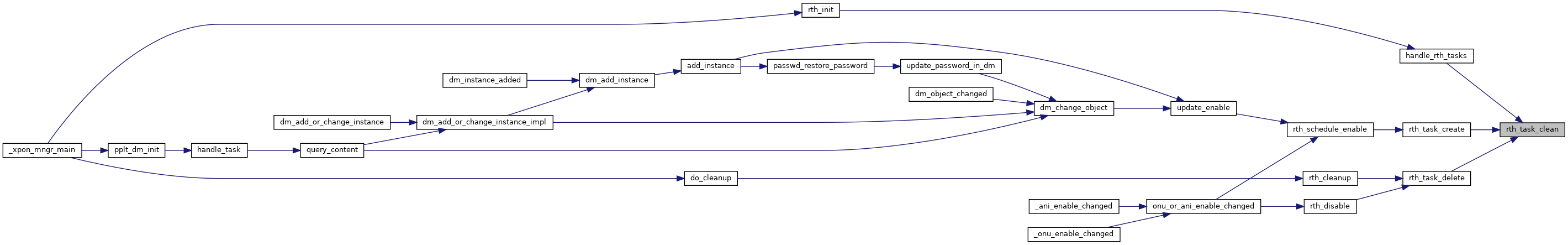

Here is the caller graph for this function:

rth_task_create()

static rth_task_t* rth_task_create ( const char *const  path )

static

Create task and append it to 's_rth_tasks'.

If it fails to create the task or to append the task to 's_rth_tasks', the function is a no-op.

Returns

task created on success, else NULL

Definition at line 132 of file restore_to_hal.c.

                                                           {

    rth_task_t* task = (rth_task_t*) calloc(1, sizeof(rth_task_t));
    when_null_trace(task, exit, ERROR, "Failed to allocate memory");

    amxc_string_init(&task->path, 0);
    amxc_string_set(&task->path, path);

    if(amxc_llist_append(&s_rth_tasks, &task->it)) {
        SAH_TRACEZ_ERROR(ME, "Failed to append task to 's_rth_tasks'");
        SAH_TRACEZ_ERROR(ME, "   path='%s'", path);
        rth_task_clean(task);
        free(task);
        task = NULL;
    }

exit:
    return task;
}

Here is the call graph for this function:

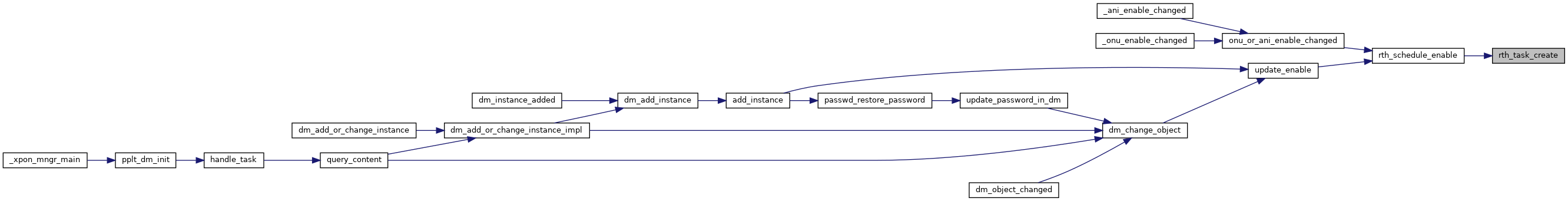

Here is the caller graph for this function:

rth_task_delete()

static void rth_task_delete ( amxc_llist_it_t *  hit )

static

Definition at line 152 of file restore_to_hal.c.

                                                  {
    rth_task_t* task = amxc_container_of(hit, rth_task_t, it);
    const char* path = amxc_string_get(&task->path, 0);
    SAH_TRACEZ_DEBUG(ME, "path='%s'", path);
    rth_task_clean(task);
    free(task);
}

Here is the call graph for this function:

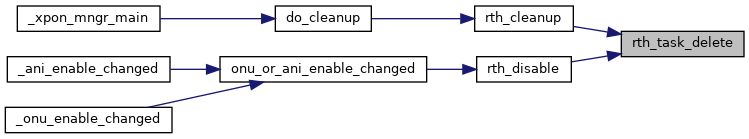

Here is the caller graph for this function:

Variable Documentation

MAX_CHECKS_ON_NR_OF_UNIS_AND_ANIS

const uint8_t MAX_CHECKS_ON_NR_OF_UNIS_AND_ANIS = 4

static

Definition at line 88 of file restore_to_hal.c.

s_rth_tasks

amxc_llist_t s_rth_tasks

static

Definition at line 83 of file restore_to_hal.c.

s_timer_handle_rth_tasks

amxp_timer_t* s_timer_handle_rth_tasks = NULL

static

Definition at line 86 of file restore_to_hal.c.
