udebug-remote.c File Reference

#include "udebug-priv.h"

Go to the source code of this file.

Functions
static int	udebug_remote_get_handle (struct udebug *ctx)
struct udebug_remote_buf *	udebug_remote_buf_get (struct udebug *ctx, uint32_t id)
int	udebug_remote_buf_map (struct udebug *ctx, struct udebug_remote_buf *rb, uint32_t id)
void	udebug_remote_buf_unmap (struct udebug *ctx, struct udebug_remote_buf *rb)
int	udebug_remote_buf_set_poll (struct udebug *ctx, struct udebug_remote_buf *rb, bool val)
static void	rbuf_advance_read_head (struct udebug_remote_buf *rb, uint32_t head, uint32_t *data_start)
void	udebug_remote_buf_set_start_time (struct udebug_remote_buf *rb, uint64_t ts)
void	udebug_remote_buf_set_start_offset (struct udebug_remote_buf *rb, uint32_t idx)
void	udebug_remote_buf_set_flags (struct udebug_remote_buf *rb, uint64_t mask, uint64_t set)
struct udebug_snapshot *	udebug_remote_buf_snapshot (struct udebug_remote_buf *rb)
bool	udebug_snapshot_get_entry (struct udebug_snapshot *s, struct udebug_iter *it, unsigned int entry)
void	udebug_iter_start (struct udebug_iter *it, struct udebug_snapshot **s, size_t n)
bool	udebug_iter_next (struct udebug_iter *it)

Function Documentation

rbuf_advance_read_head()

static void rbuf_advance_read_head ( struct udebug_remote_buf *  rb, uint32_t  head, uint32_t *  data_start  )

static

Definition at line 112 of file udebug-remote.c.

{
        struct udebug_hdr *hdr = rb->buf.hdr;
        uint32_t min_head = head + 1 - rb->buf.ring_size;
        uint32_t min_data = u32_get(&hdr->data_used) - rb->buf.data_size;
        struct udebug_ptr *last_ptr = udebug_ring_ptr(hdr, head - 1);

        if (!u32_get(&hdr->head_hi) && u32_sub(0, min_head) > 0)
                min_head = 0;

        /* advance head to skip over any entries that are guaranteed
         * to be overwritten now. final check will be performed after
         * data copying */

        if (u32_sub(rb->head, min_head) < 0)
                rb->head = min_head;

        for (size_t i = 0; i < rb->buf.ring_size; i++) {
                struct udebug_ptr *ptr = udebug_ring_ptr(hdr, rb->head);

                if (data_start) {
                        *data_start = u32_get(&ptr->start);
                        __sync_synchronize();
                }

                if (ptr->timestamp > last_ptr->timestamp)
                        continue;

                if (u32_sub(ptr->start, min_data) > 0)
                        break;

                rb->head++;
        }
}

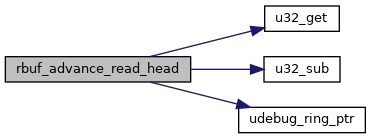

Here is the call graph for this function:

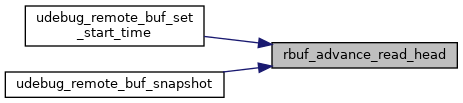

Here is the caller graph for this function:

udebug_iter_next()

bool udebug_iter_next

(

struct udebug_iter *

it

)

Definition at line 325 of file udebug-remote.c.

{
        while (1) {
                struct udebug_snapshot *s;
                uint64_t cur_ts;
                int cur = -1;

                for (size_t i = 0; i < it->n; i++) {
                        struct udebug_ptr *ptr;

                        s = it->list[i];
                        if (s->iter_idx >= s->n_entries)
                                continue;

                        ptr = &s->entries[s->iter_idx];
                        if (cur >= 0 && ptr->timestamp > cur_ts)
                                continue;

                        cur = i;
                        cur_ts = ptr->timestamp;
                }

                if (cur < 0)
                        return false;

                s = it->list[cur];
                it->s_idx = cur;
                if (!udebug_snapshot_get_entry(s, it, s->iter_idx++))
                        continue;

                return true;
        }
}

Here is the call graph for this function:

udebug_iter_start()

void udebug_iter_start	(	struct udebug_iter *	it,
		struct udebug_snapshot **	s,
		size_t	n
	)

Definition at line 314 of file udebug-remote.c.

{
        memset(it, 0, sizeof(*it));

        it->list = s;
        it->n = n;

        for (size_t i = 0; i < it->n; i++)
                it->list[i]->iter_idx = 0;
}

udebug_remote_buf_get()

struct udebug_remote_buf* udebug_remote_buf_get	(	struct udebug *	ctx,
		uint32_t	id
	)

Definition at line 39 of file udebug-remote.c.

{
        struct udebug_remote_buf *rb;
        void *key = (void *)(uintptr_t)id;

        return avl_find_element(&ctx->remote_rings, key, rb, node);
}

udebug_remote_buf_map()

int udebug_remote_buf_map	(	struct udebug *	ctx,
		struct udebug_remote_buf *	rb,
		uint32_t	id
	)

Definition at line 47 of file udebug-remote.c.

{
        void *key = (void *)(uintptr_t)id;
        struct udebug_client_msg *msg;
        struct udebug_client_msg send_msg = {
                .type = CL_MSG_RING_GET,
                .id = id,
        };
        int fd = -1;

        if (rb->buf.data || !udebug_is_connected(ctx))
                return -1;

        msg = udebug_send_and_wait(ctx, &send_msg, &fd);
        if (!msg || fd < 0)
                return -1;

        if (udebug_buf_open(&rb->buf, fd, msg->ring_size, msg->data_size)) {
                fprintf(stderr, "failed to open fd %d, ring_size=%d, data_size=%d\n", fd, msg->ring_size, msg->data_size);
                close(fd);
                return -1;
        }

        rb->pcap_iface = ~0;
        rb->node.key = key;
        avl_insert(&ctx->remote_rings, &rb->node);

        return 0;
}

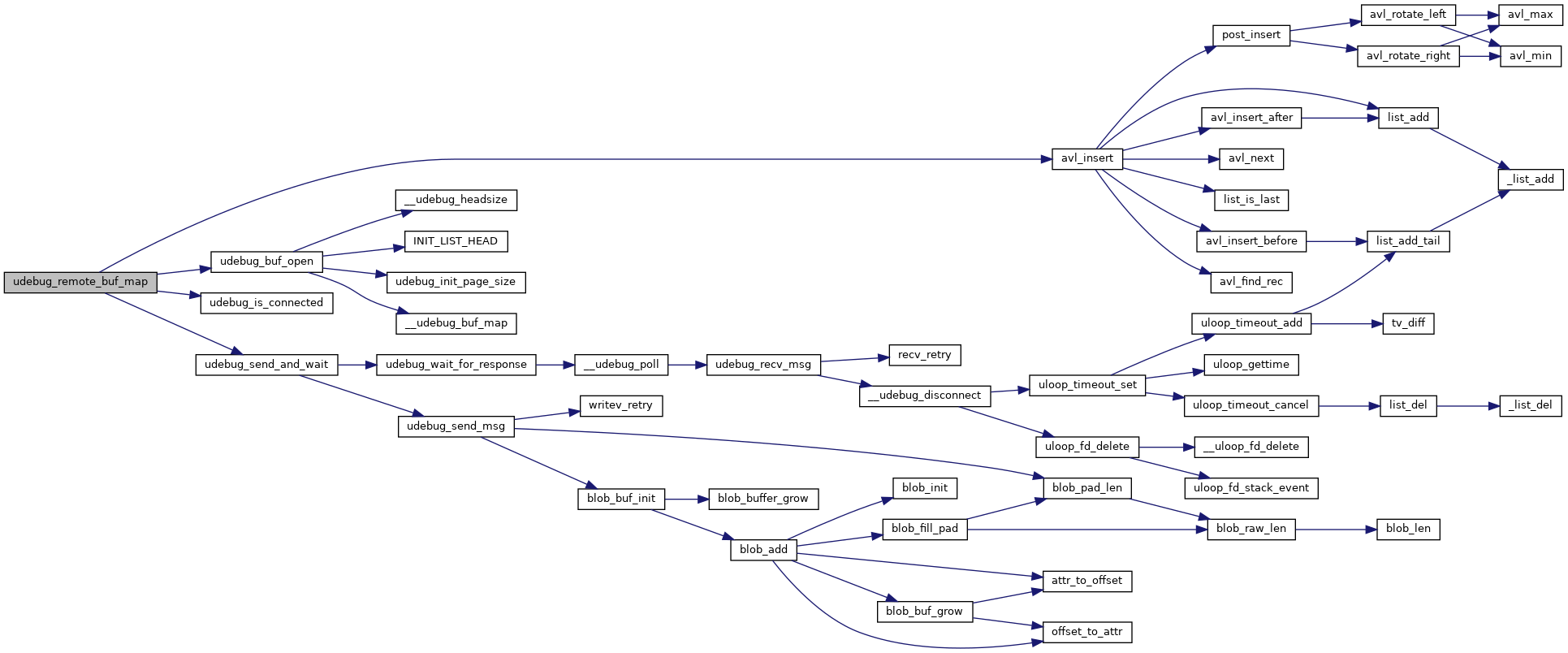

Here is the call graph for this function:

udebug_remote_buf_set_flags()

void udebug_remote_buf_set_flags	(	struct udebug_remote_buf *	rb,
		uint64_t	mask,
		uint64_t	set
	)

Definition at line 181 of file udebug-remote.c.

{
        struct udebug_hdr *hdr = rb->buf.hdr;

        if (!hdr)
                return;

        if ((uintptr_t)mask)
                __atomic_and_fetch(&hdr->flags[0], (uintptr_t)~mask, __ATOMIC_RELAXED);
        if ((uintptr_t)set)
                __atomic_or_fetch(&hdr->flags[0], (uintptr_t)set, __ATOMIC_RELAXED);

        if (sizeof(mask) == sizeof(unsigned long))
                return;

        mask >>= 32;
        if ((uintptr_t)mask)
                __atomic_and_fetch(&hdr->flags[1], (uintptr_t)~mask, __ATOMIC_RELAXED);
        if ((uintptr_t)set)
                __atomic_or_fetch(&hdr->flags[1], (uintptr_t)set, __ATOMIC_RELAXED);
}

udebug_remote_buf_set_poll()

int udebug_remote_buf_set_poll	(	struct udebug *	ctx,
		struct udebug_remote_buf *	rb,
		bool	val
	)

Definition at line 89 of file udebug-remote.c.

{
        int handle;

        if (!rb->buf.data)
                return -1;

        if (rb->poll == val)
                return 0;

        rb->poll = val;
        if (!val)
                return 0;

        handle = udebug_remote_get_handle(ctx);
        if (handle < 0)
                return -1;

        __atomic_fetch_or(&rb->buf.hdr->notify, 1UL << handle, __ATOMIC_RELAXED);
        return 0;
}

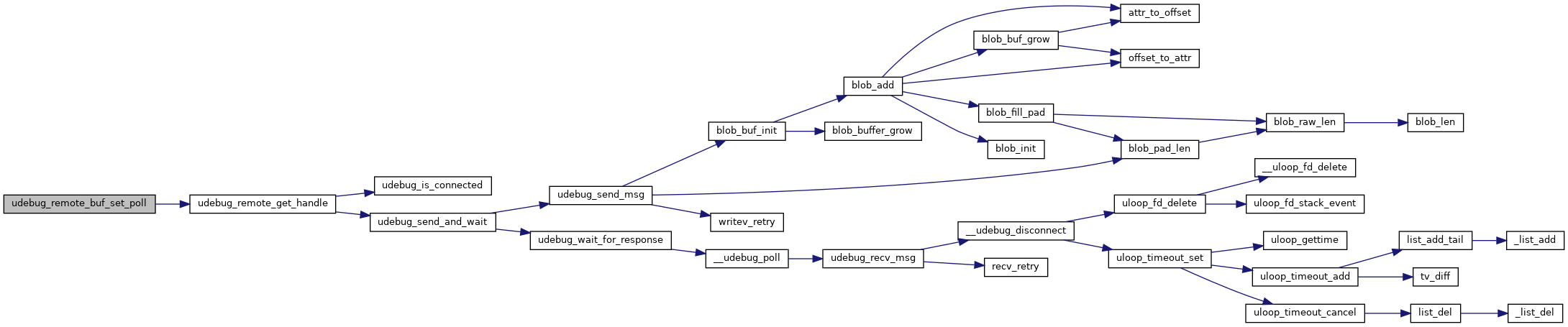

Here is the call graph for this function:

Here is the caller graph for this function:

udebug_remote_buf_set_start_offset()

void udebug_remote_buf_set_start_offset	(	struct udebug_remote_buf *	rb,
		uint32_t	idx
	)

Definition at line 173 of file udebug-remote.c.

{
        if (!rb->buf.hdr)
                return;

        rb->head = rb->buf.hdr->head - idx;
}

udebug_remote_buf_set_start_time()

void udebug_remote_buf_set_start_time	(	struct udebug_remote_buf *	rb,
		uint64_t	ts
	)

Definition at line 148 of file udebug-remote.c.

{
        struct udebug_hdr *hdr = rb->buf.hdr;
        uint32_t head = u32_get(&hdr->head);
        uint32_t start = rb->head, end = head;
        uint32_t diff;

        if (!hdr)
                return;

        rbuf_advance_read_head(rb, head, NULL);
        while ((diff = u32_sub(end, start)) > 0) {
                uint32_t cur = start + diff / 2;
                struct udebug_ptr *ptr;

                ptr = udebug_ring_ptr(hdr, cur);
                if (ptr->timestamp > ts)
                        end = cur - 1;
                else
                        start = cur + 1;
        }

        rb->head = start;
}

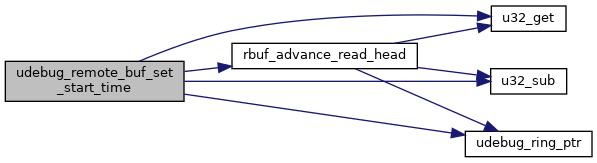

Here is the call graph for this function:

udebug_remote_buf_snapshot()

struct udebug_snapshot* udebug_remote_buf_snapshot

(

struct udebug_remote_buf *

rb

)

Definition at line 204 of file udebug-remote.c.

{
        struct udebug_hdr *hdr = rb->buf.hdr;
        struct udebug_ptr *last_ptr;
        uint32_t data_start, data_end, data_used;
        struct udebug_snapshot *s = NULL;
        struct udebug_ptr *ptr_buf, *first_ptr;
        uint32_t data_size, ptr_size;
        uint32_t head, first_idx;
        uint32_t prev_read_head = rb->head;
        void *data_buf;

        if (!hdr)
                return NULL;

        head = u32_get(&hdr->head);
        rbuf_advance_read_head(rb, head, &data_start);
        if (rb->head == head)
                return NULL;

        first_idx = rb->head;
        first_ptr = udebug_ring_ptr(hdr, first_idx);
        last_ptr = udebug_ring_ptr(hdr, head - 1);
        data_end = last_ptr->start + last_ptr->len;

        data_size = data_end - data_start;
        ptr_size = head - rb->head;
        if (data_size > rb->buf.data_size || ptr_size > rb->buf.ring_size) {
                fprintf(stderr, "Invalid data size: %x > %x, %x > %x\n", data_size, (int)rb->buf.data_size, ptr_size, (int)rb->buf.ring_size);
                goto out;
        }

        s = calloc_a(sizeof(*s),
                     &ptr_buf, ptr_size * sizeof(*ptr_buf),
                     &data_buf, data_size);

        s->data = memcpy(data_buf, udebug_buf_ptr(&rb->buf, data_start), data_size);
        s->data_size = data_size;
        s->entries = ptr_buf;
        s->dropped = rb->head - prev_read_head;

        if (first_ptr > last_ptr) {
                struct udebug_ptr *start_ptr = udebug_ring_ptr(hdr, 0);
                struct udebug_ptr *end_ptr = udebug_ring_ptr(hdr, rb->buf.ring_size - 1) + 1;
                uint32_t size = end_ptr - first_ptr;
                memcpy(s->entries, first_ptr, size * sizeof(*s->entries));
                memcpy(s->entries + size, start_ptr, (last_ptr + 1 - start_ptr) * sizeof(*s->entries));
        } else {
                memcpy(s->entries, first_ptr, (last_ptr + 1 - first_ptr) * sizeof(*s->entries));
        }

        /* get a snapshot of the counter that indicates how much data has been
         * clobbered by newly added entries */
        __sync_synchronize();
        data_used = u32_get(&hdr->data_used) - rb->buf.data_size;

        s->n_entries = head - first_idx;

        rbuf_advance_read_head(rb, head, NULL);
        if (s->n_entries < rb->head - first_idx) {
                free(s);
                s = NULL;
                goto out;
        }

        s->entries += rb->head - first_idx;
        s->n_entries -= rb->head - first_idx;
        while (s->n_entries > 0 &&
               u32_sub(s->entries[0].start, data_used) < 0) {
                s->entries++;
                s->n_entries--;
                s->dropped++;
        }

        for (size_t i = 0; i < s->n_entries; i++)
                s->entries[i].start -= data_start;

        s->format = hdr->format;
        s->sub_format = hdr->sub_format;
        s->rbuf_idx = (uint32_t)(uintptr_t)rb->node.key;

out:
        rb->head = head;
        return s;
}

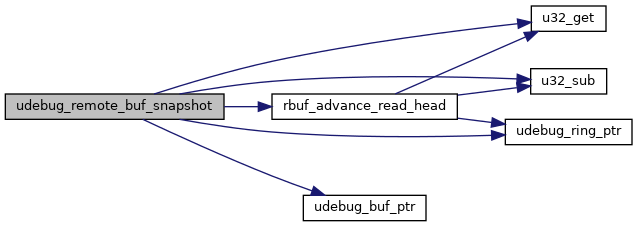

Here is the call graph for this function:

udebug_remote_buf_unmap()

void udebug_remote_buf_unmap	(	struct udebug *	ctx,
		struct udebug_remote_buf *	rb
	)

Definition at line 77 of file udebug-remote.c.

{
        if (!rb->buf.data)
                return;

        avl_delete(&ctx->remote_rings, &rb->node);
        udebug_buf_free(&rb->buf);
        rb->poll = 0;
        rb->node.key = NULL;
        rb->pcap_iface = ~0;
}

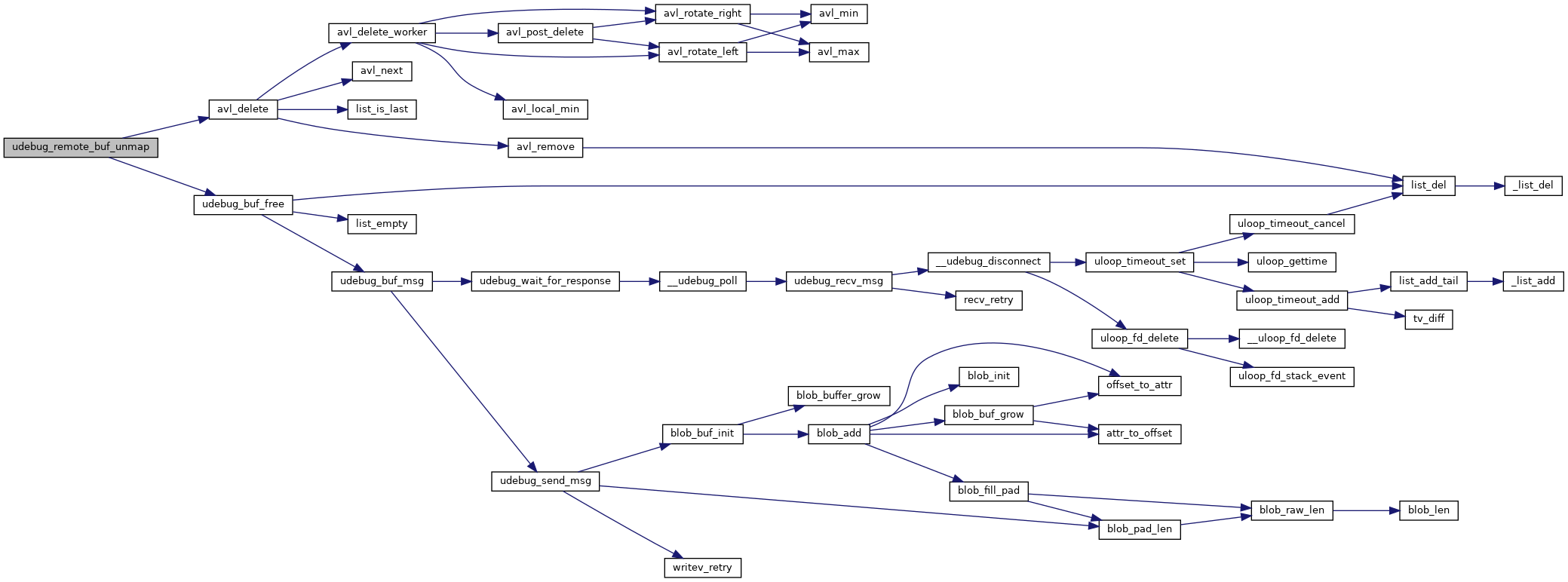

Here is the call graph for this function:

Here is the caller graph for this function:

udebug_remote_get_handle()

static int udebug_remote_get_handle ( struct udebug *  ctx )

static

Definition at line 21 of file udebug-remote.c.

{
        struct udebug_client_msg *msg;
        struct udebug_client_msg send_msg = {
                .type = CL_MSG_GET_HANDLE,
        };

        if (ctx->poll_handle >= 0 || !udebug_is_connected(ctx))
                return 0;

        msg = udebug_send_and_wait(ctx, &send_msg, NULL);
        if (!msg)
                return -1;

        ctx->poll_handle = msg->id;
        return 0;
}

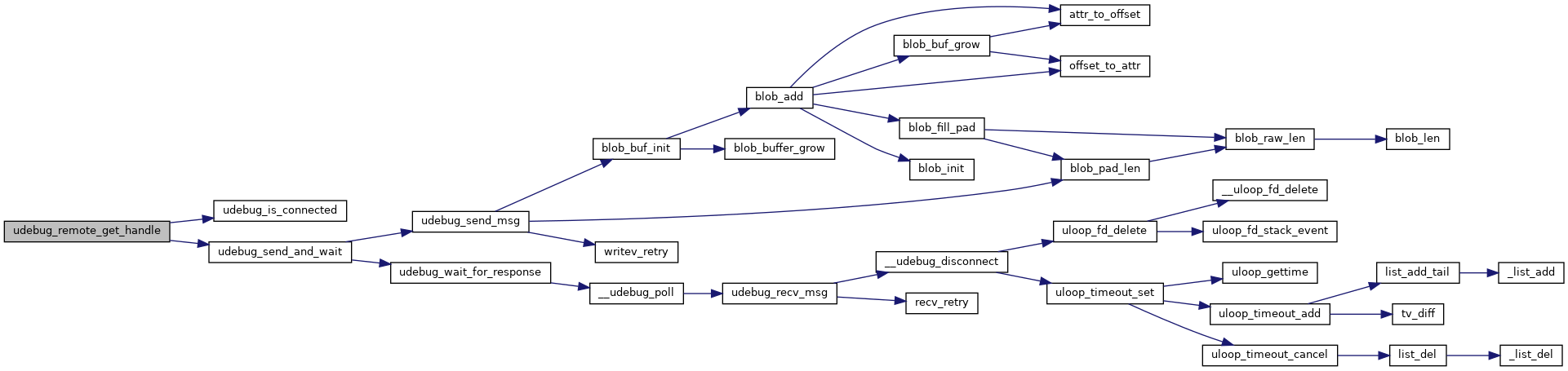

Here is the call graph for this function:

Here is the caller graph for this function:

udebug_snapshot_get_entry()

bool udebug_snapshot_get_entry	(	struct udebug_snapshot *	s,
		struct udebug_iter *	it,
		unsigned int	entry
	)

Definition at line 290 of file udebug-remote.c.

{
        struct udebug_ptr *ptr;

        it->len = 0;
        if (entry >= s->n_entries)
                goto error;

        ptr = &s->entries[entry];
        if (ptr->start > s->data_size || ptr->len > s->data_size ||
            ptr->start + ptr->len > s->data_size)
                goto error;

        it->s = s;
        it->data = s->data + ptr->start;
        it->len = ptr->len;
        it->timestamp = ptr->timestamp;
        return true;

error:
        it->data = NULL;
        return false;
}

Here is the caller graph for this function:
